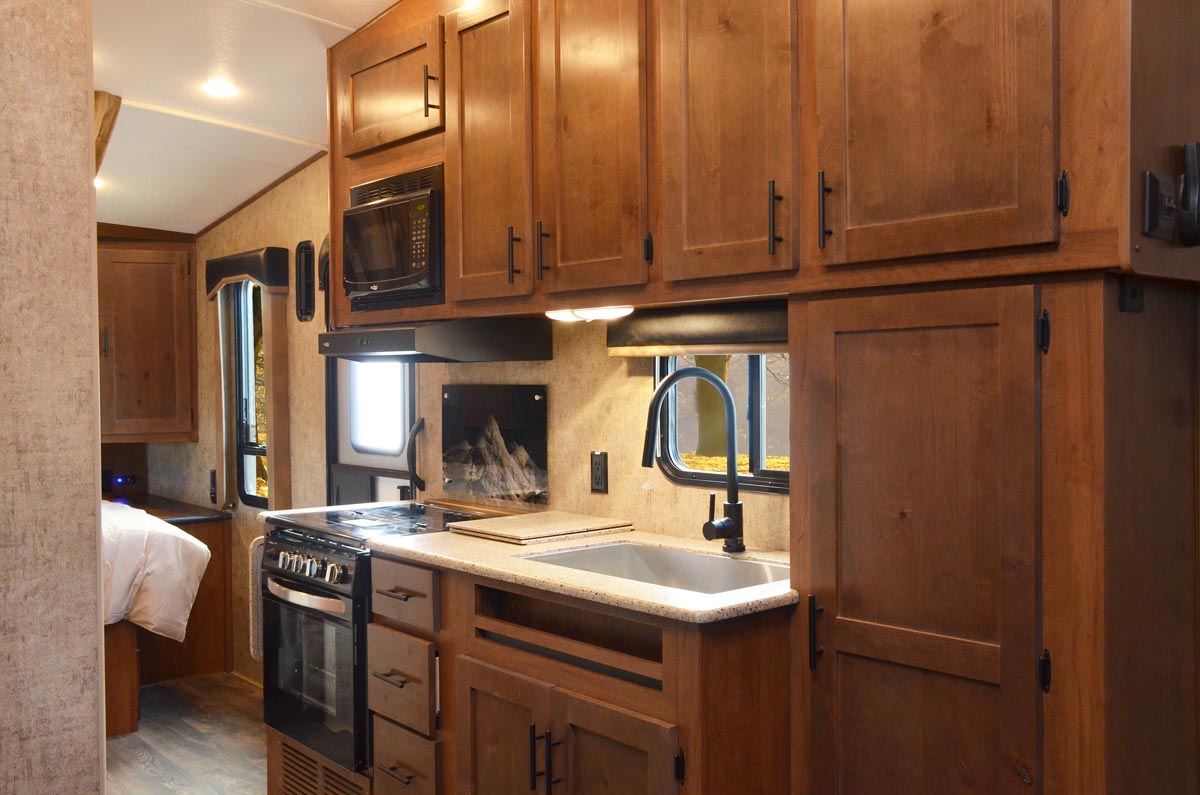

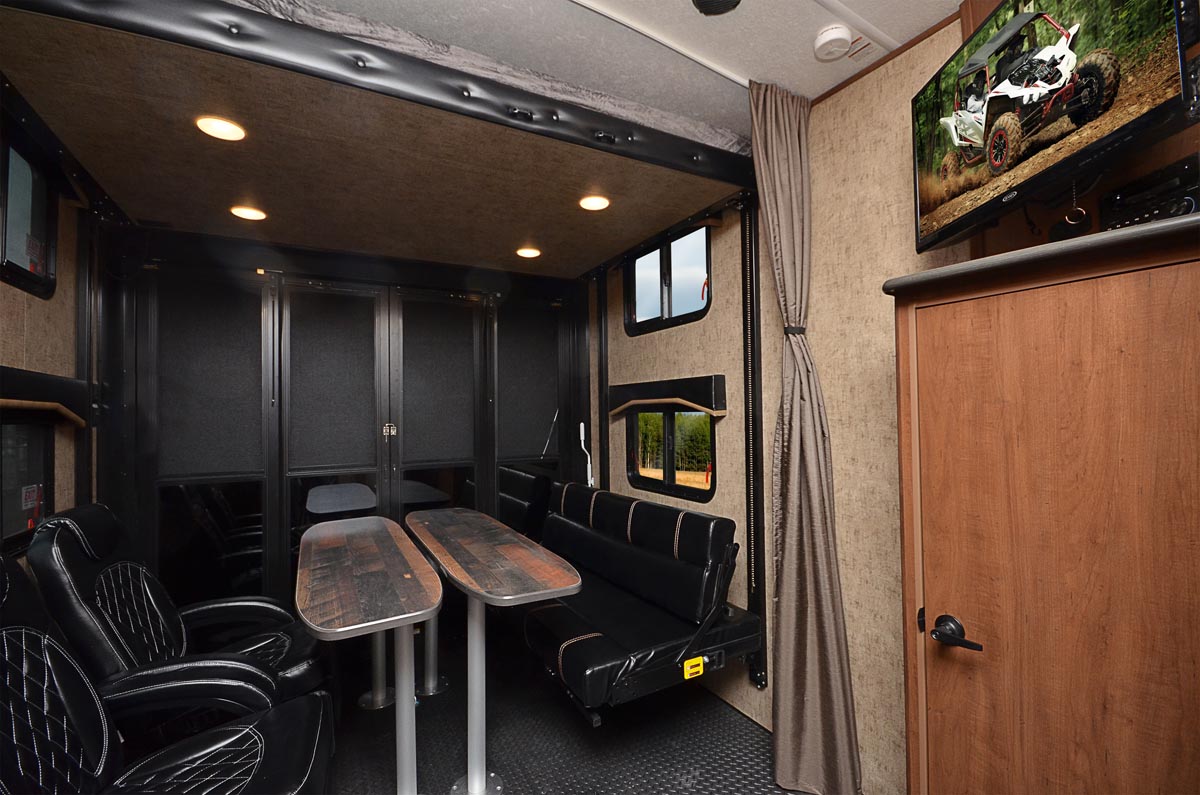

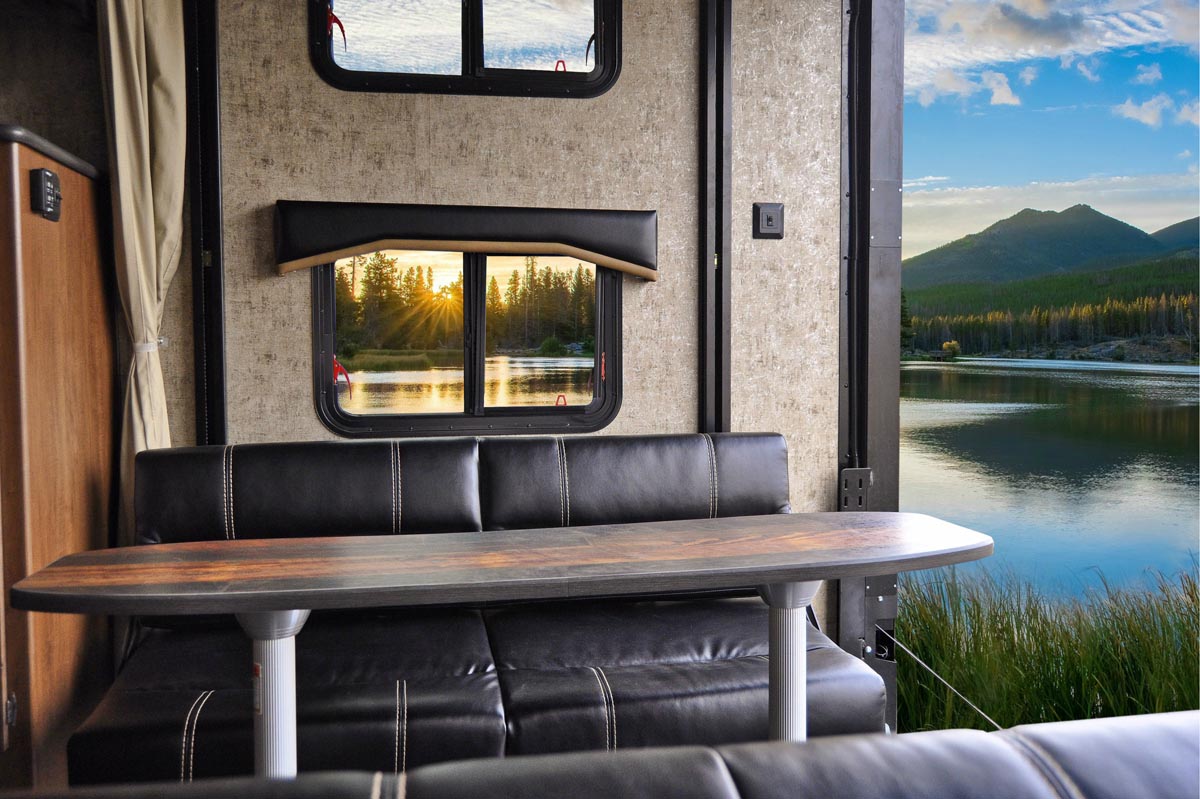

24TRX GALLERY
*Photos shown may feature optional equipment, standard features subject to change without notice
Specifications
| Full Feature Dry Weight - Lbs. | 8750 |
| Exterior Length (approx. hitch to back of ladder) | 30'1" |
| Fuel Station Capacity (Gallons) | 40 |
| Fresh Water Capacity (approx. gal) | 100 |
| Water Heater Capacity (approx. gal) | 10 |
| Good Year Tire Size | LT235/85/16G |
| Load Range | G |
| Heavy Duty 6 Lug Axles (lbs) | 6800(2) |
| Climate Designed Furnace | 35K |
| Exterior Height | 13'1" w/AC |
| Interior Height | TBD |
| LPG Capacity (approx. pounds) | 60 |
| Grey Water Tank (approx. gallons) | 65 |
| Black Water Tank (approx. gallons) | 40 |
| Net Carrying Capacity | 4245 |
| Dry Hitch Weight (approx. Lbs.) | 1400 |
| Maximum Trailer Weight - Lbs. | 12995 |
Standard Features
*Mountain Extreme Thermal Pane Windows
*Climate Designed – Four Seasons Camping
– Designed for Mountain States & Western Canada
*Triple Layered Four Seasons Roof Insulation
(Reflective Insulation Layer & Two Layers of R-7 Fiberglass Insulation)
*Fully Enclosed-Heated-Insulated Underbelly
*1″ Thick Thermal Insulated Luggage Doors
*Reflective Insulation Layer Roof, Entire Underbelly, Holding Tanks
*Custom-Built Cambered Off-Road Chassis
*Integrated A-Frame Chassis Construction
*Off Road X4 Suspension – MorRyde CRE 3000, HD Shackle Kit
*KYB World Class Shock Absorbers
*Heavy Duty 8 Lug 6800 LB Axles w/ Off-Road Brake System
*16″ GoodYear Endurance 235 G Range 14 Ply Radial Tires
*Roto-Torqued “Outdoors Tough” Cabinetry (All Cabinets)
*Radius-Crowned Full Walk-On Roof w/ Side Ladder
*Exterior Grade Tongue & Groove Plywood Sub-Floor
*Marine Grade Plywood Roof Decking
*Cummins Onan 4K On-Board Gas Generator w/ 40 Gallon Fuel Station

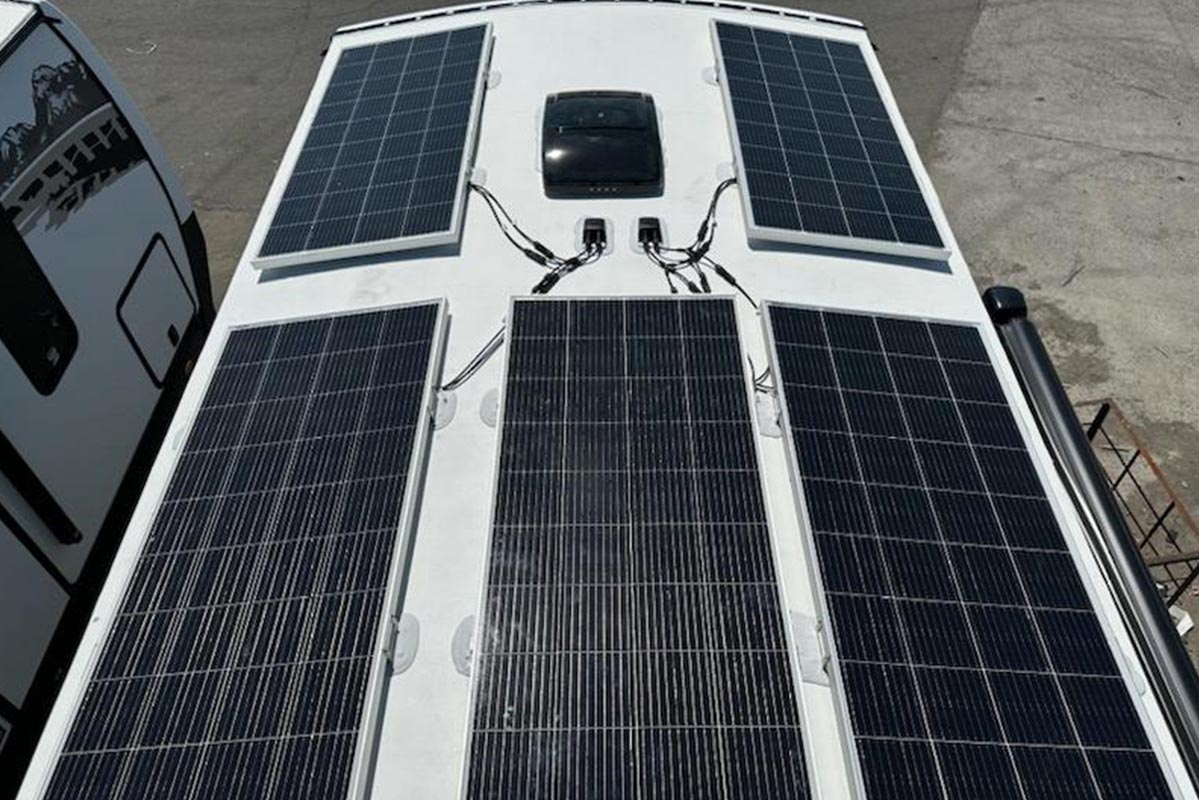

*No Boundaries Off-Grid – Solar Package / Controller
*Progressive Dynamics (4) Stage Converter w/ Built In Charge Wizard – Lithium Compatible
*100 Gallon Fresh Water Capacity
*Rugged 2″ Bonded Aluminum Frame Walls (Every Wall)
*HD Fiberglass Front Cap w/ Armor Guard Protection
*HD Laminated Fiberglass Hardwall – Front, Rear & Sidewalls

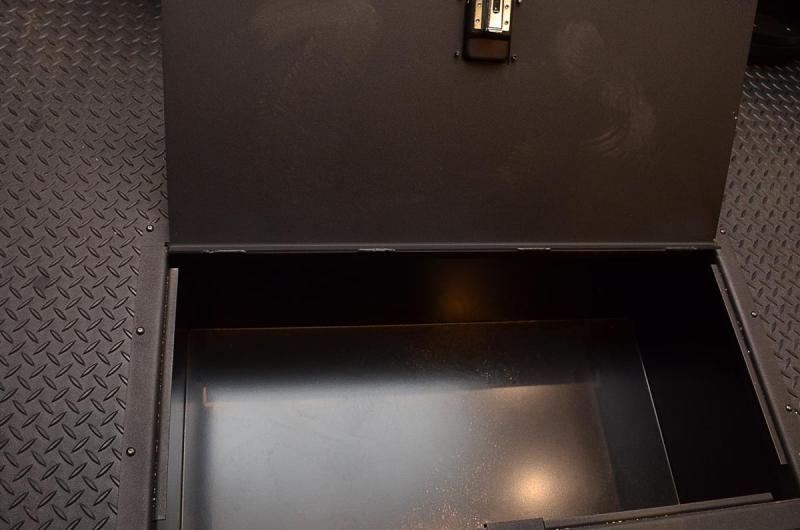

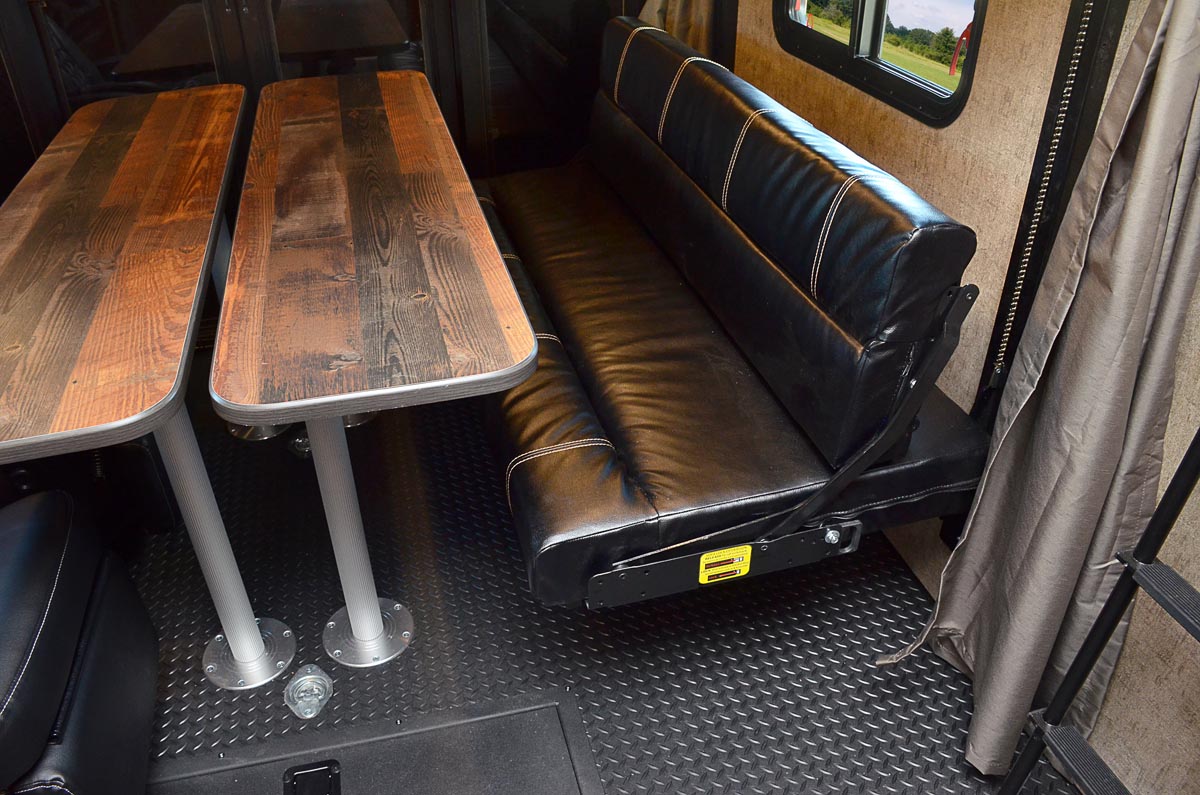

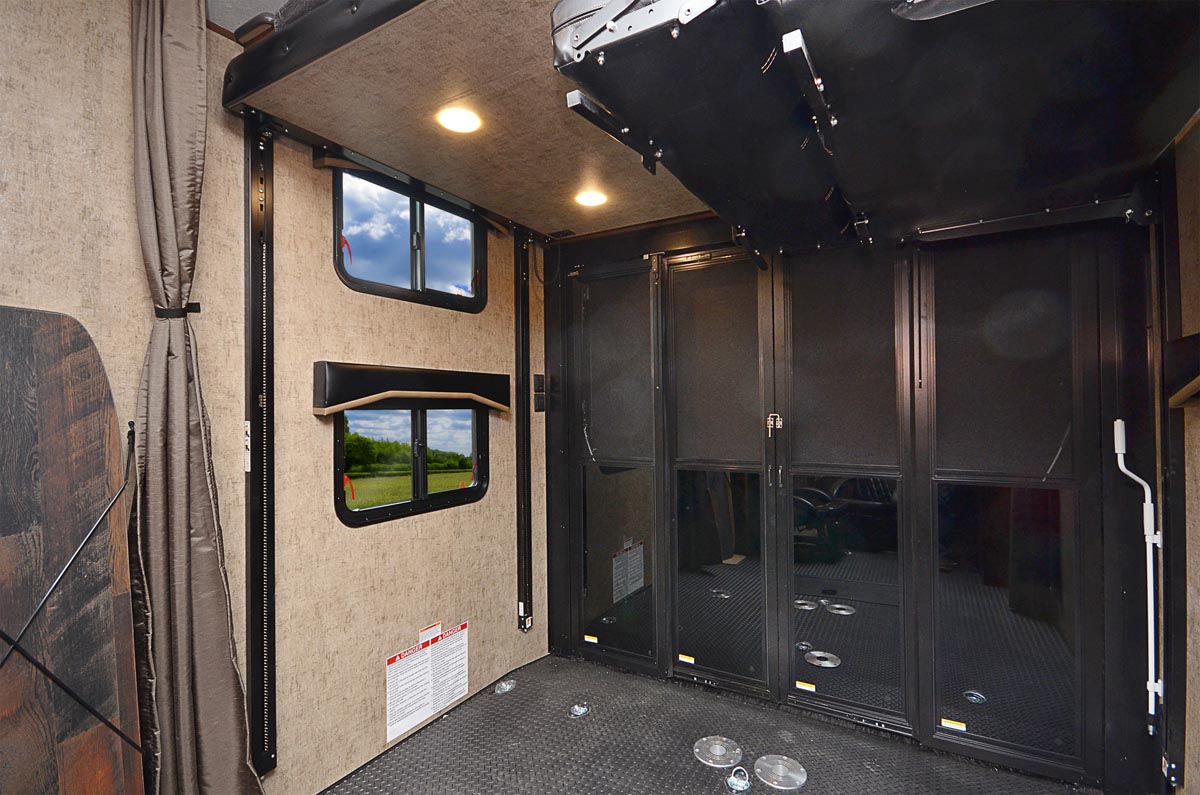

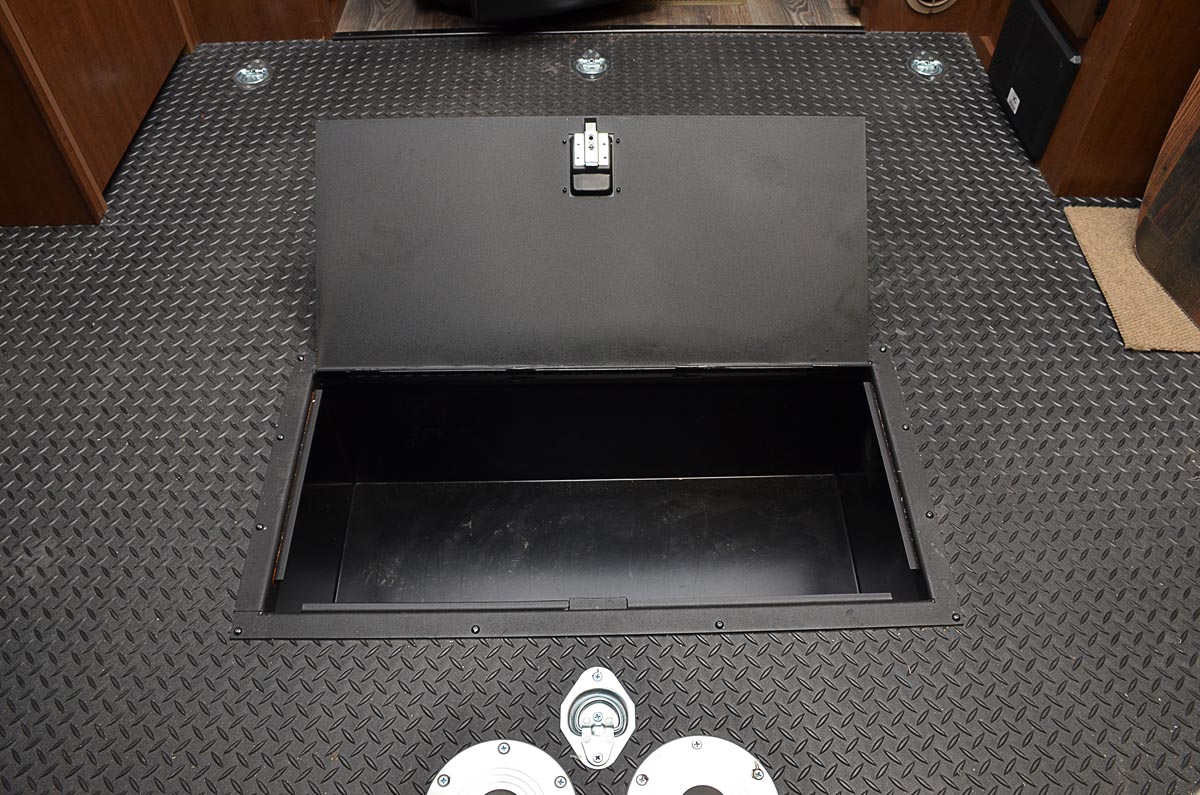

*Rugged Rubber Diamond Plate Flooring – Gear Storage Area
*LCI “Fast Ramp” w/ No Exterior Lower Hinges and Dual Locks
*Rear Ramp Non-Slip Grip Surface (3000 LB Ramp Down Load Rating)
*Patio Railing Kit w/ Entry Step and Rear Awning
*Sliding Rear Patio Doors (Tinted w/ Slider Windows for Ventilation)

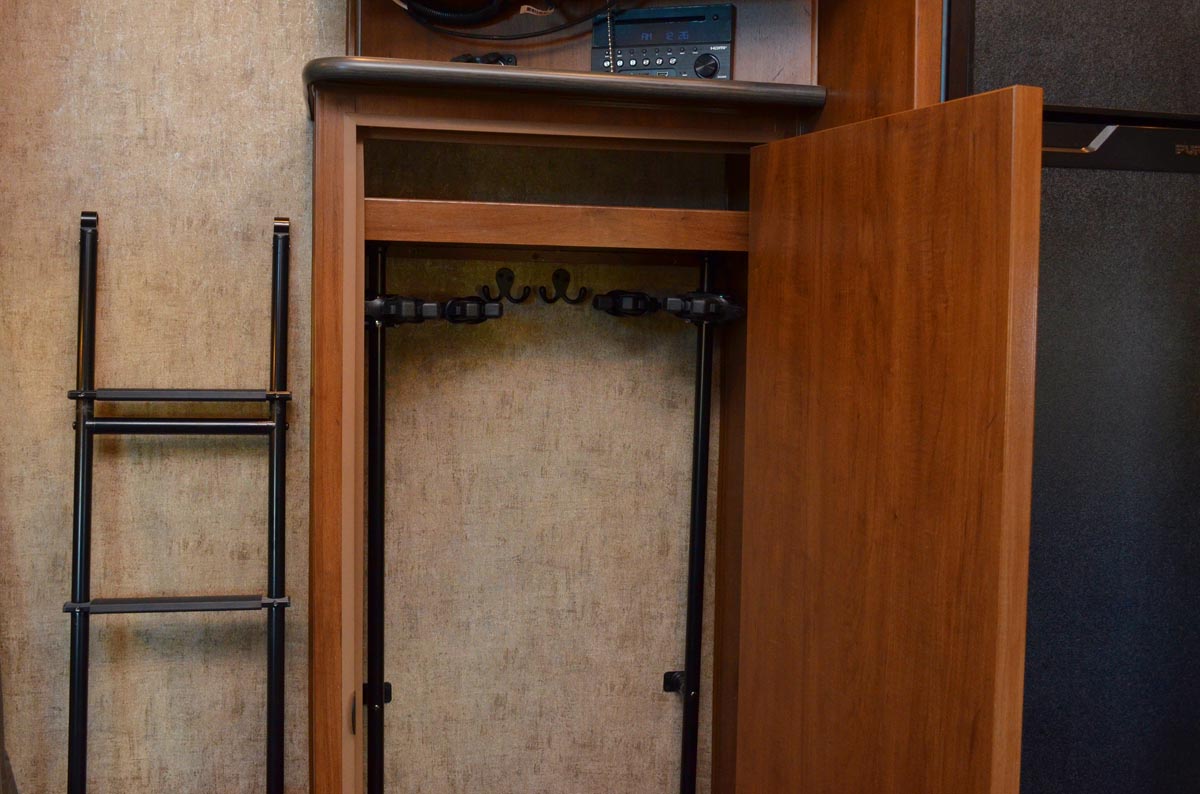

*Sportsmen’s Gear Closet w/ Locking Door

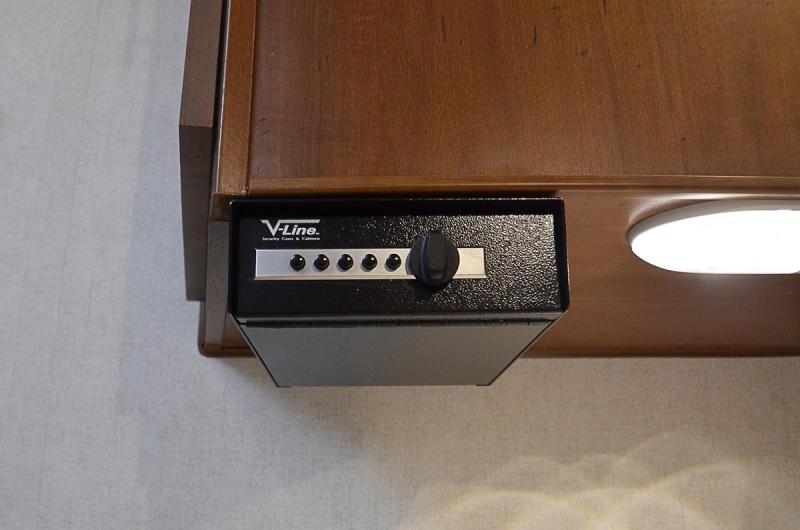

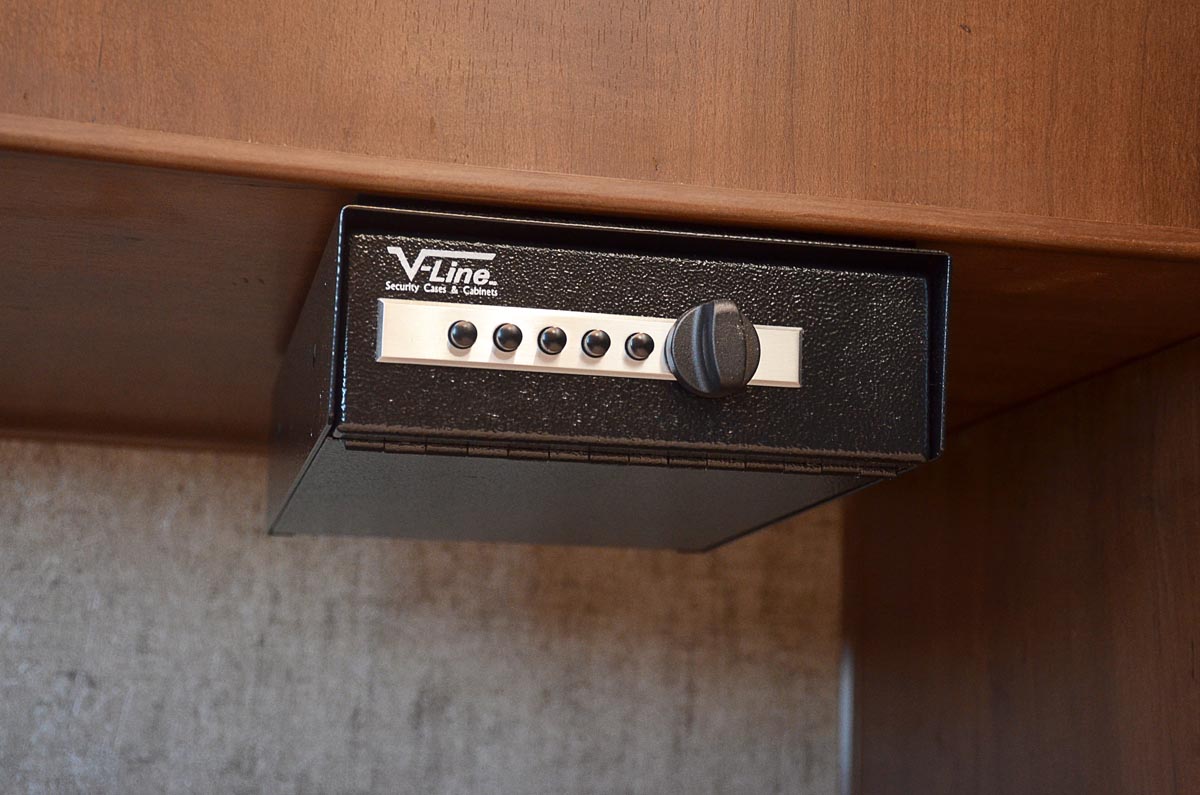

*Quick Access Home Defense Bed Safe

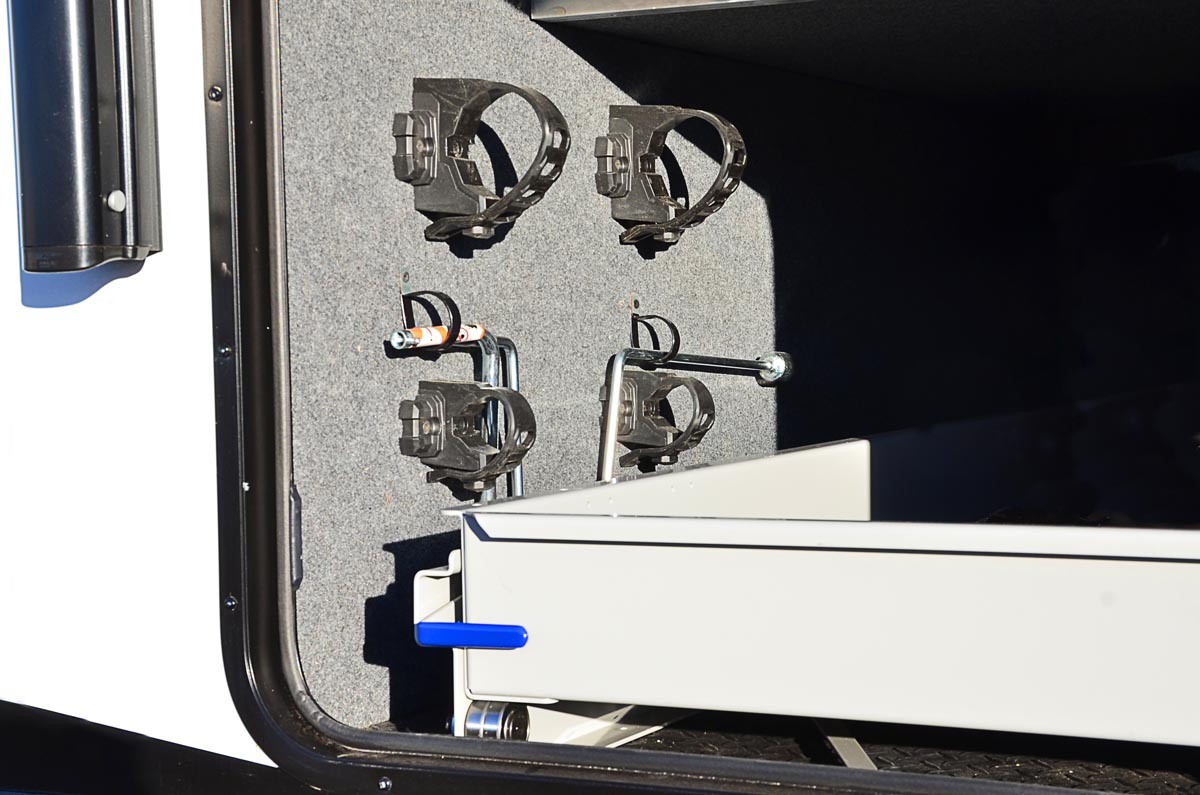

*Toy-Lok (15 FT Cable for Locking Bikes, Coolers, Etc)
*High Pressure Exterior Spray Washer
*Portable Air Compressor
*MorRyde Sliding Cargo Tray in Front Compartment
*Sportsmen’s Rack (Axe, Shovel, Fishing Poles, etc)
*Auto Brackets for Rear Bed Lift System
Floor Length – 25′ Full Featured Dry Weight – 9230
Titanium Series
Optional Premium Package
Ground Control TT Auto Leveling System
Lamilux HD 4000 High Gloss Silver Fiberglass w/ Frameless Windows
Frameless Window Entry Door w/ Privacy Black-Out Roll Shade
Brushed Aluminum Grab Bar Handle
Back-up Lights
Remote Camping Pkg (Controls Main/Rear Awnings, Exterior Awning Lights)

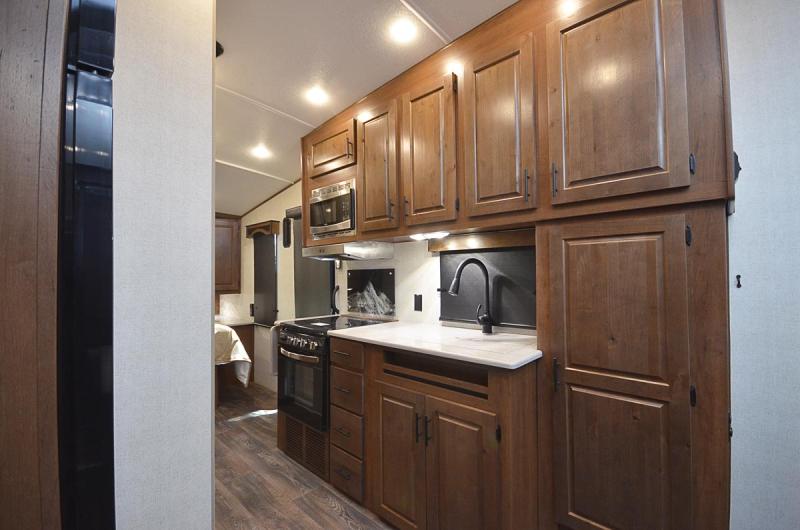

Raised Panel Knotty Alder Cabinet Doors
Hardwood Window Valances w/ Privacy Black-Out Roll Shades (Except Storage Area)
Side Turn Camera System (Driver and Passenger Side)
LG Solid Surface Tops (Galley, Lavy, Entertainment Center, & Bed Nightstands)

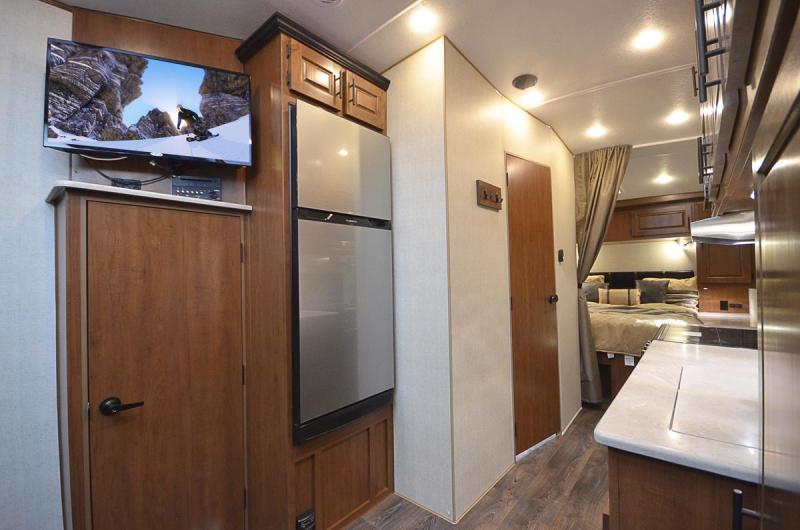

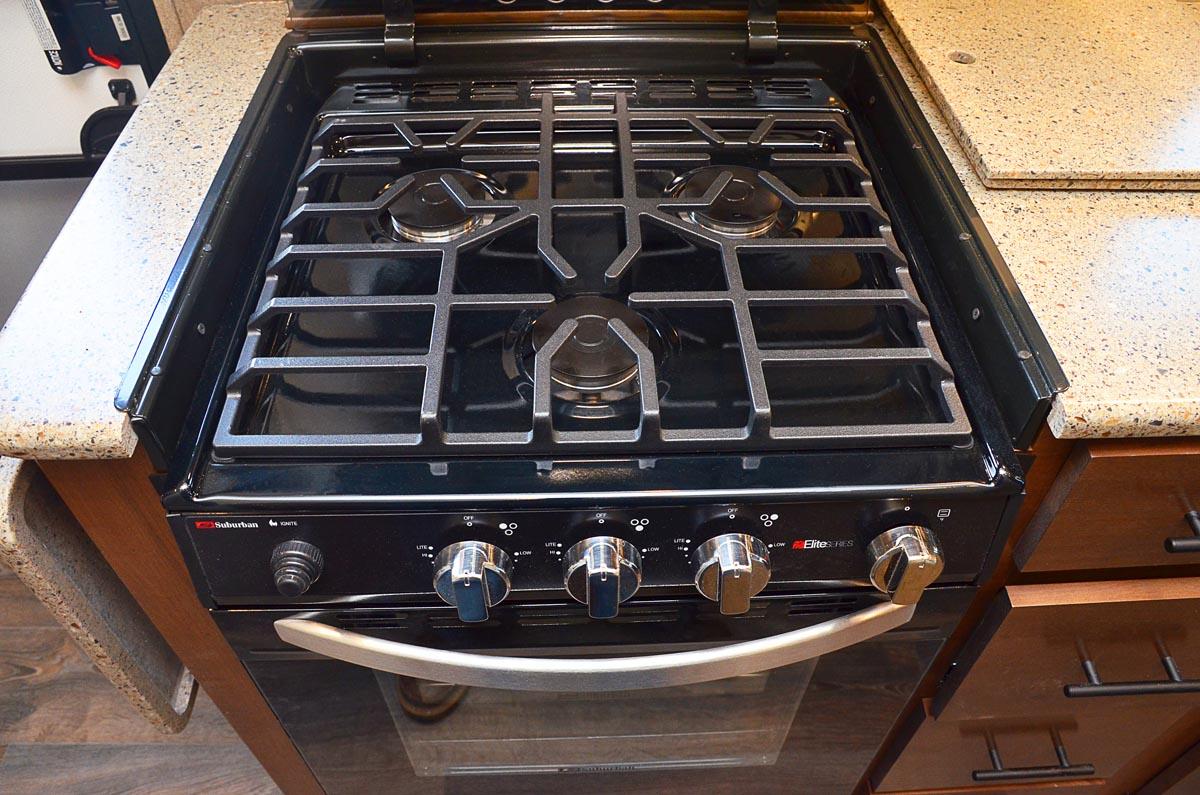

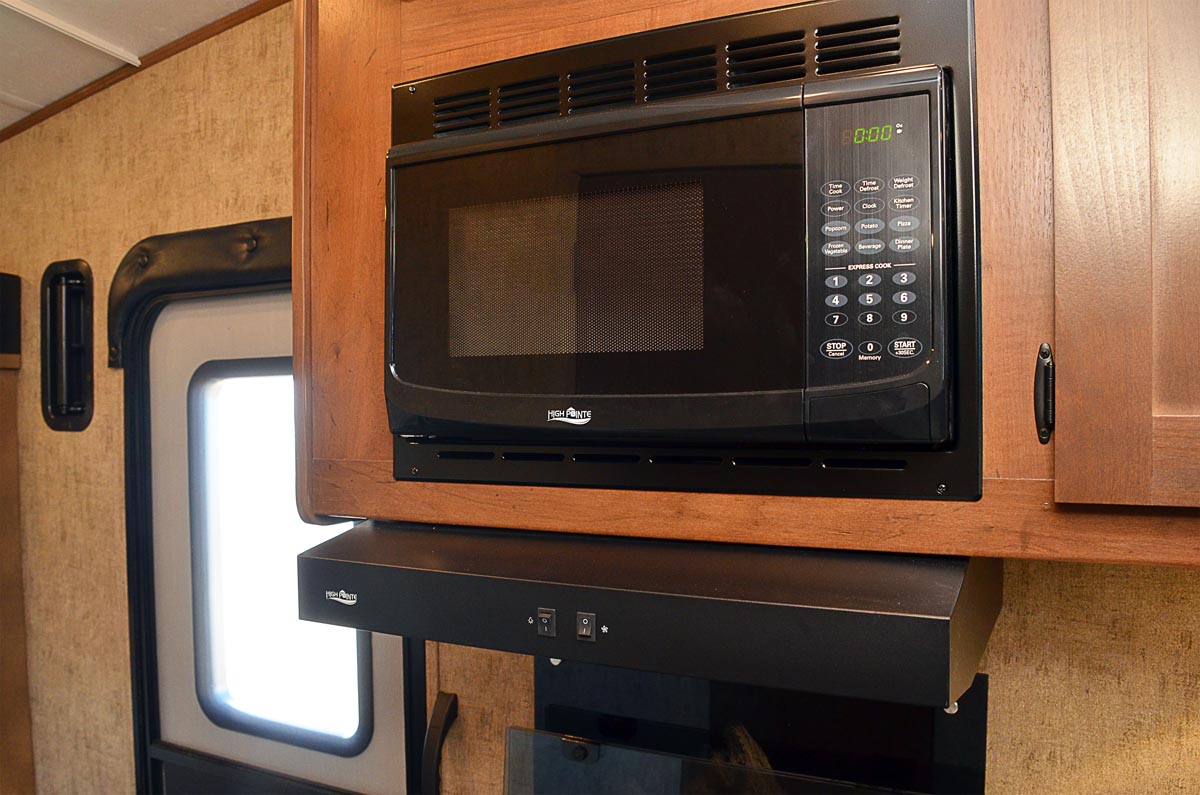

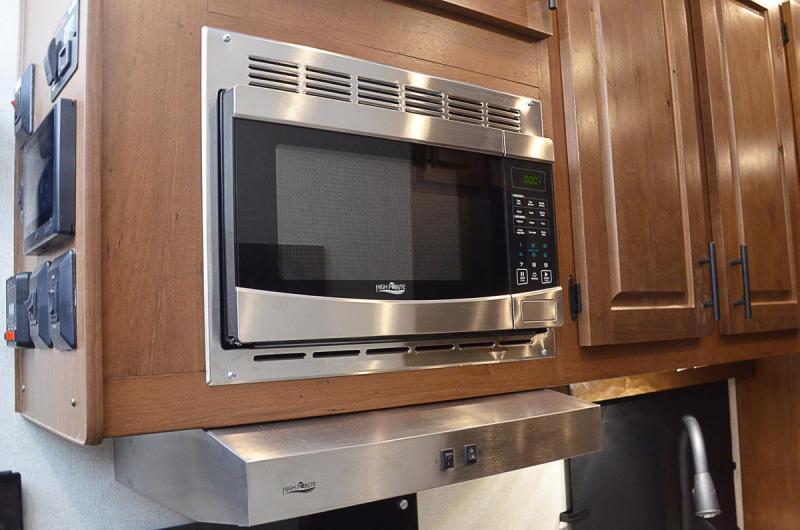

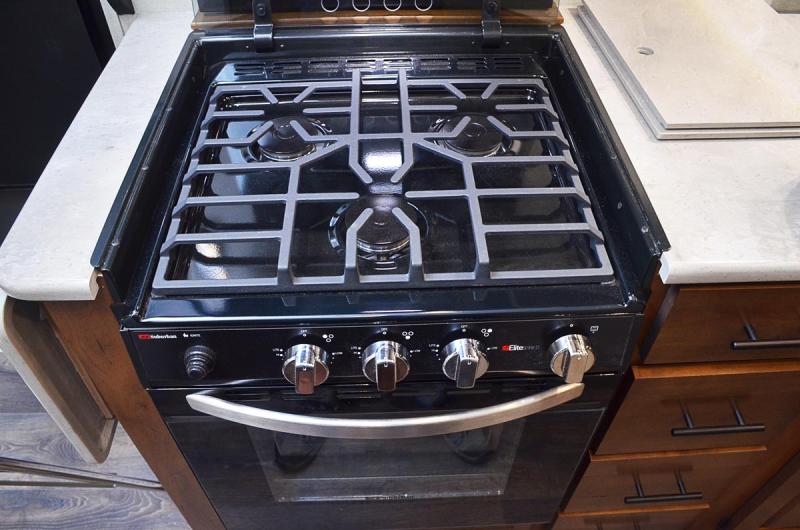

Stainless Steel Fridge, Sunken Range, Microwave, & Range Hood

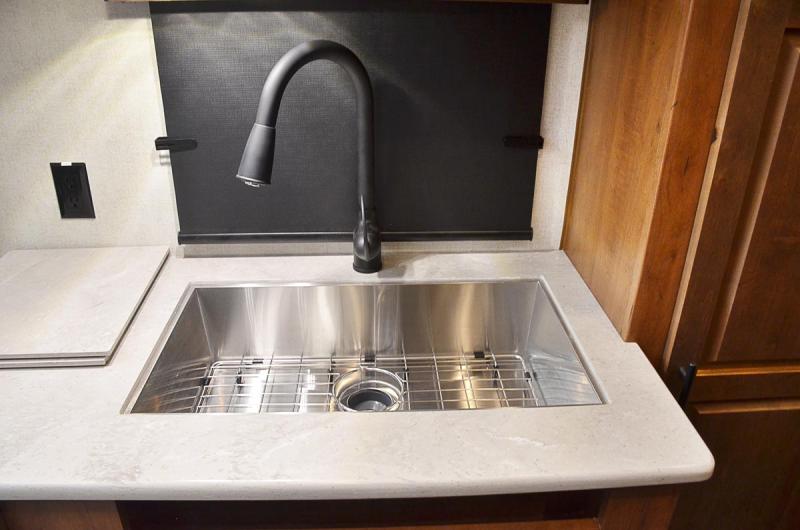

Upgraded High Rise (Single Lever w/ Pull Out) Kitchen Faucet

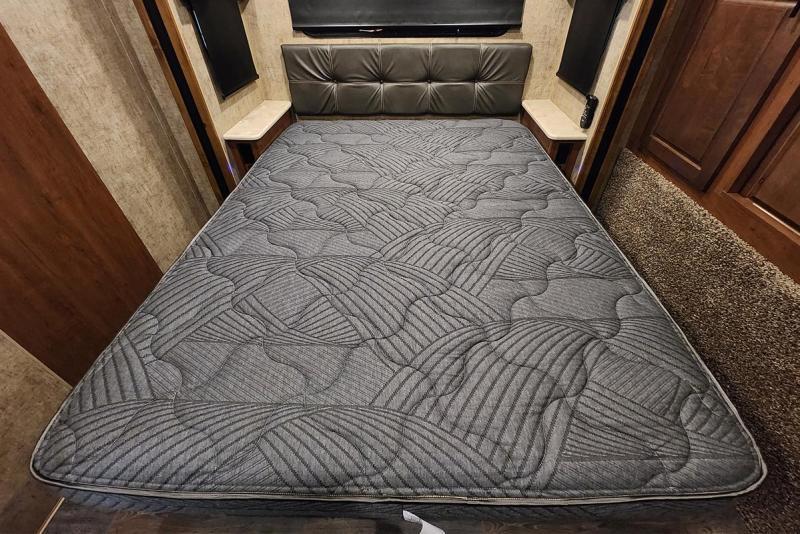

Premium Bedroom Mattress
Plush Mountain Lodge Bedspread w/ Accent Pillows
Individual Bedroom Reading Lights w/ Underneath Cabinet Lighting
Bedroom 12V TV w/ DVD (Select Mdls)

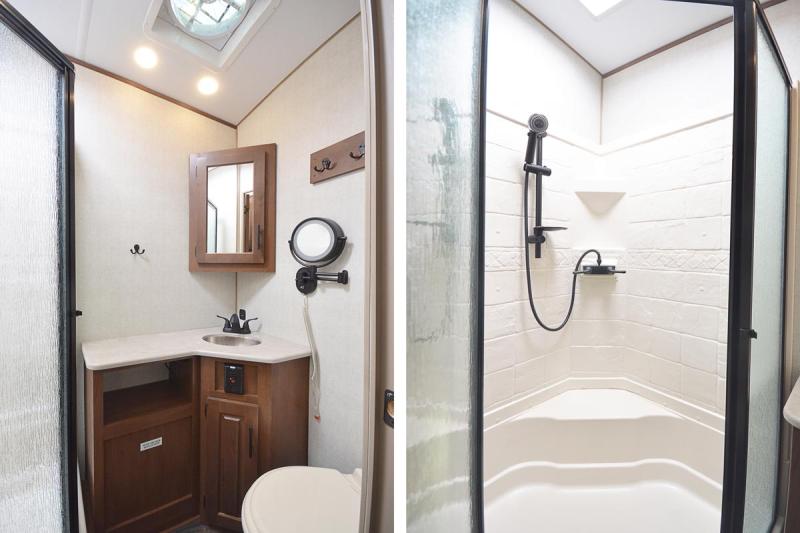

Upgraded Shower Head & Toilet Paper Holder

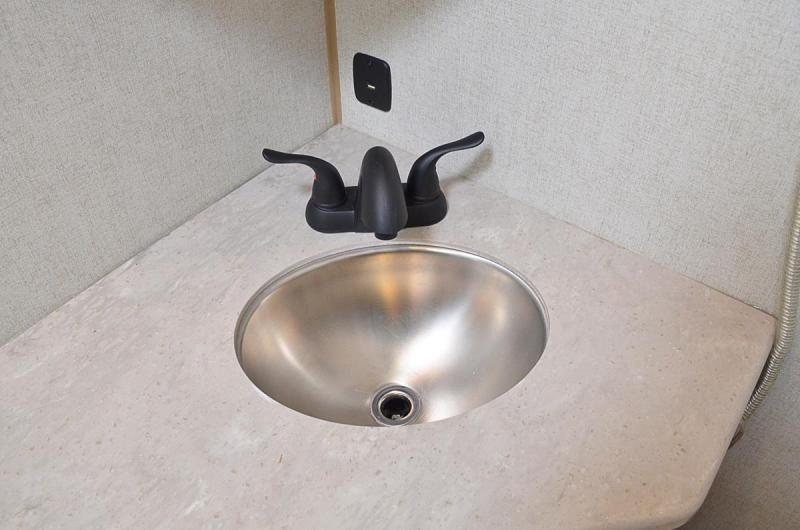

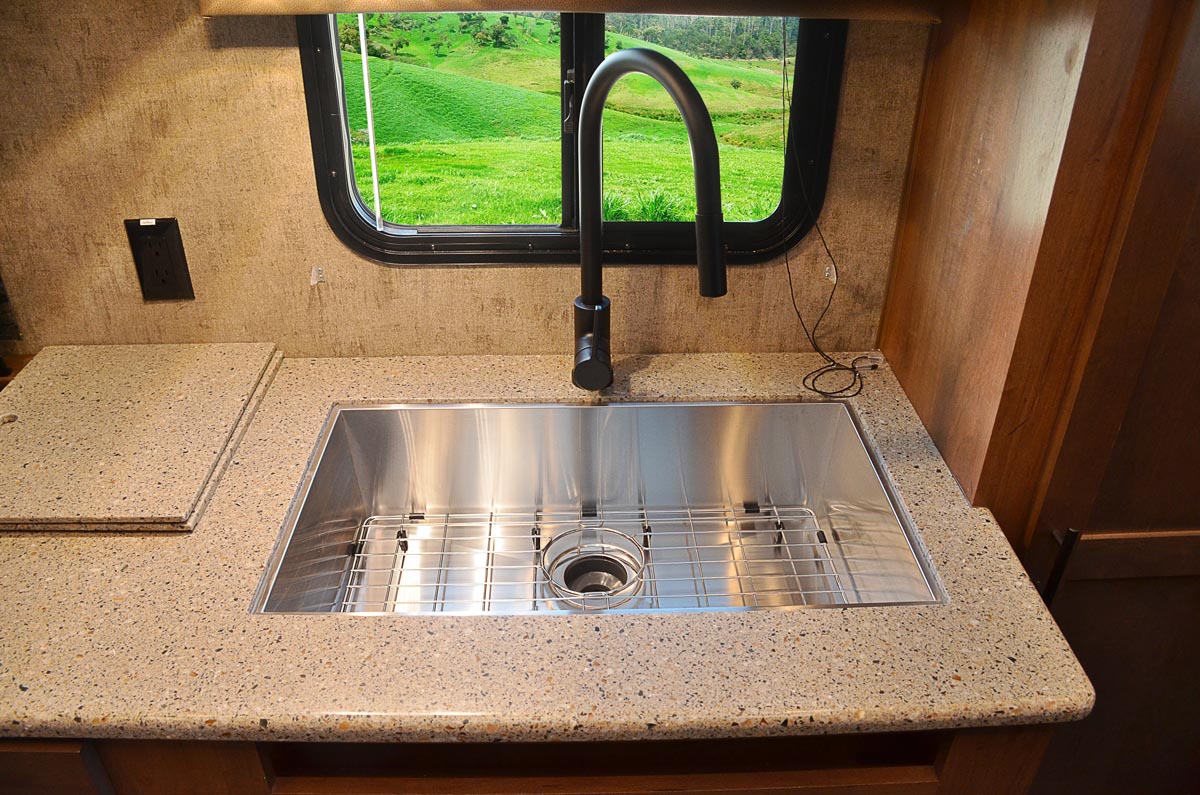

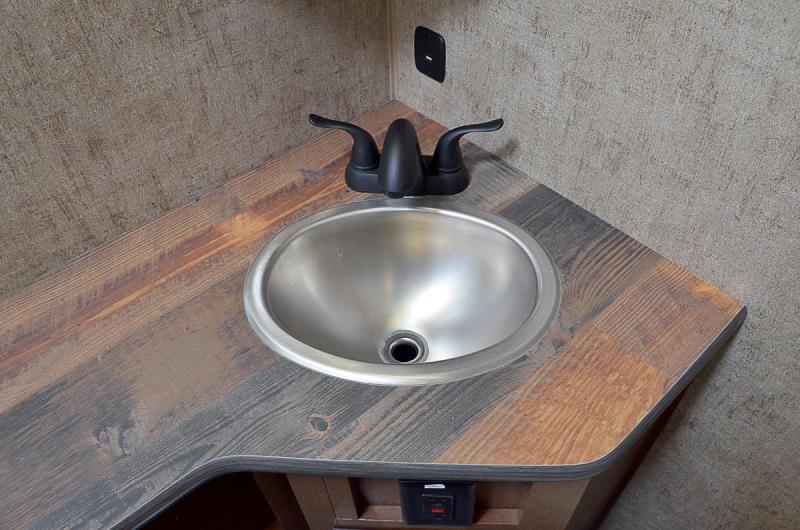

Lighted Make-Up Mirror (Select Models), Undermount Metal Sink

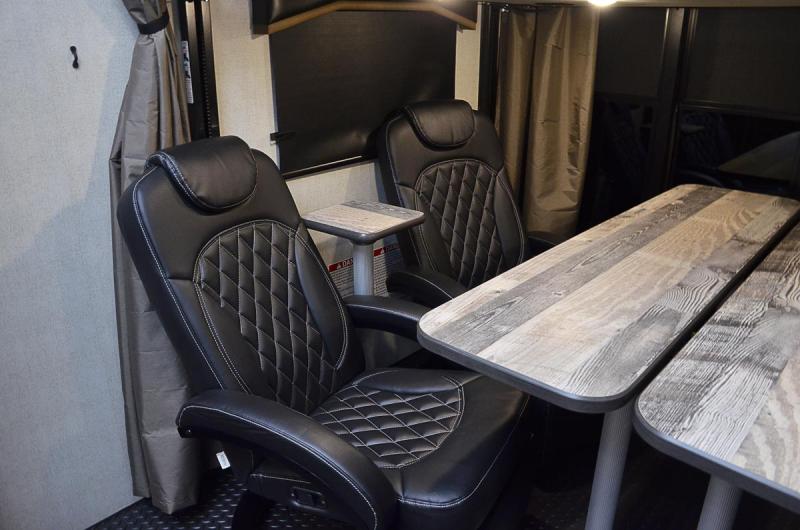

TITANIUM SERIES GALLERY
*Photos shown may feature optional equipment, standard features subject to change without notice
3D Tour
Trail Series 24TRX
Trail Series 24TRX Titanium
Available Options
