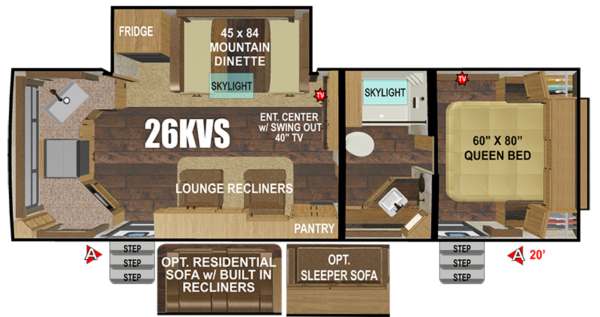

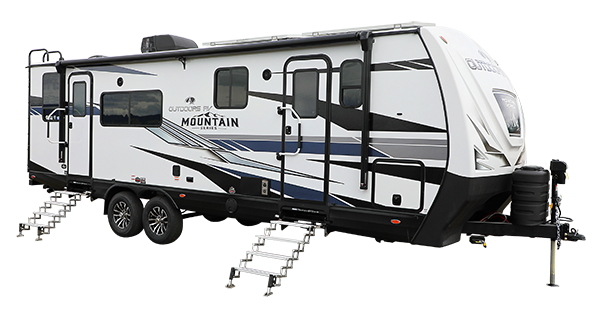

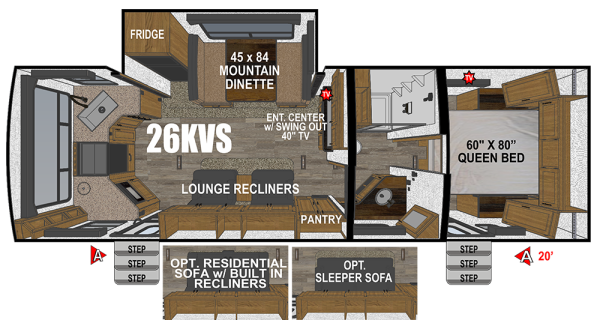

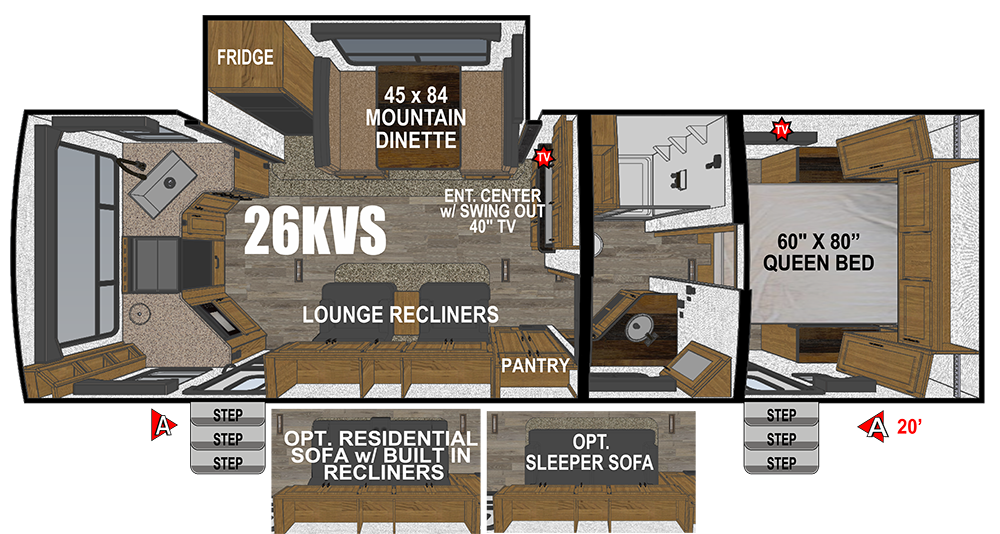

Floor Length – 27′ Full Featured Dry Weight – 7200

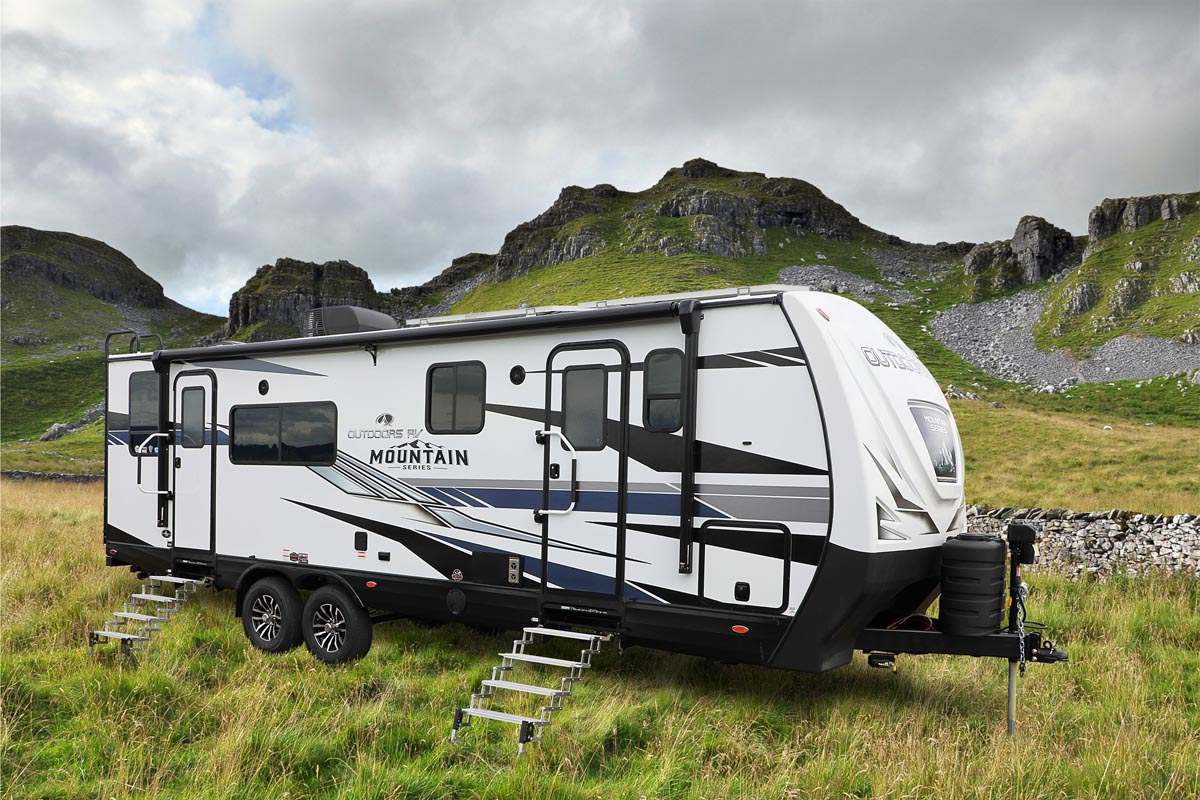

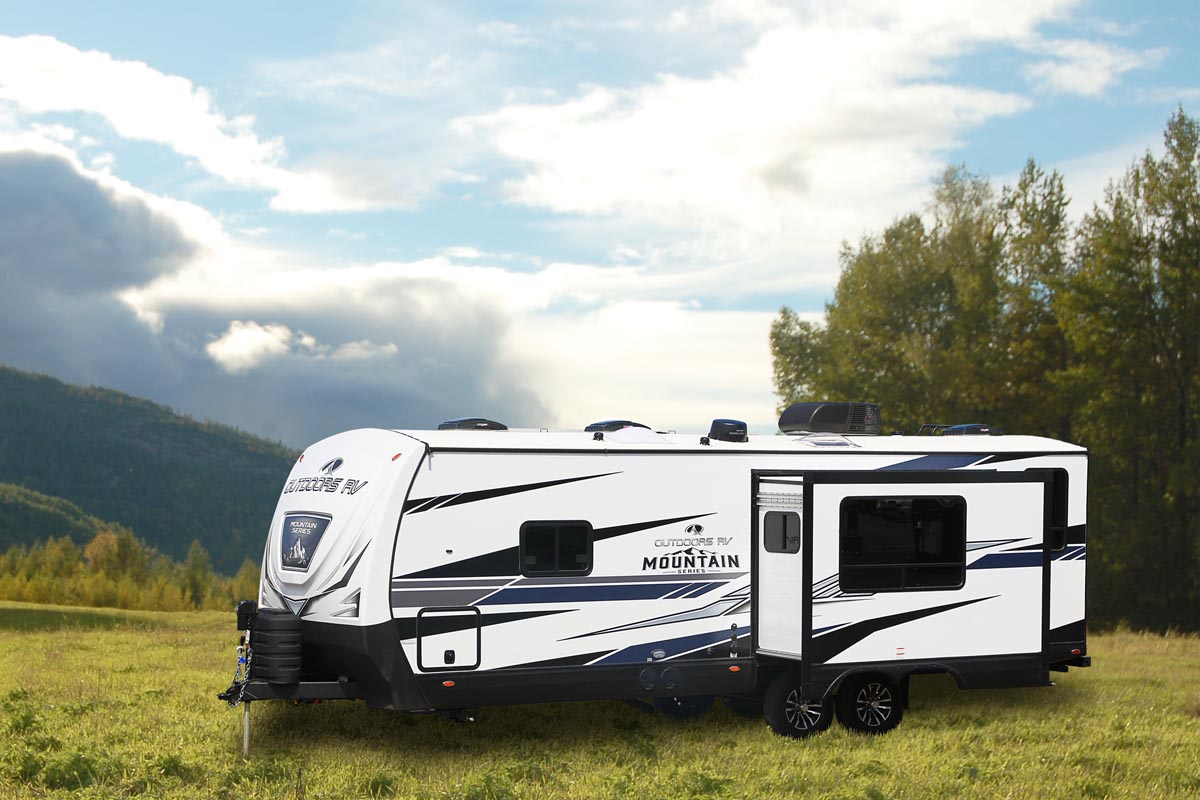

MOUNTAIN SERIES GALLERY

*Photos shown may feature optional equipment, standard features subject to change without notice

Specifications

Full Feature Dry Weight - Lbs.	7200
Exterior Length (approx. hitch to back of ladder)	31'2"
Fresh Water Capacity (approx. gal)	80
Water Heater Capacity (approx. gal)	10
Good Year Tire Size	ST235/80/16E
Load Range	E
Heavy Duty 6 Lug Axles (lbs)	5100(2)
Climate Designed Furnace	35K
Exterior Height	11'7" w/AC
Interior Height	6'11"
LPG Capacity (approx. pounds)	60
Grey Water Tank (approx. gallons)	40/40
Black Water Tank (approx. gallons)	40
Net Carrying Capacity	2795
Dry Hitch Weight (approx. Lbs.)	770
Maximum Trailer Weight - Lbs.	9995

Mountain Series Standard Features

*Mountain Extreme Thermal Pane Windows
*Climate Designed – Four Seasons Camping
– Designed for Mountain States & Western Canada
*Triple Layered Four Seasons Roof Insulation
(Reflective Insulation Layer & Two Layers of R-7 Fiberglass Insulation)
*Fully Enclosed-Heated-Insulated Underbelly
*1″ Thick Thermal Insulated Luggage Doors
*Reflective Insulation Layer Roof, Slide-Out Floor, Entire Underbelly, Holding Tanks

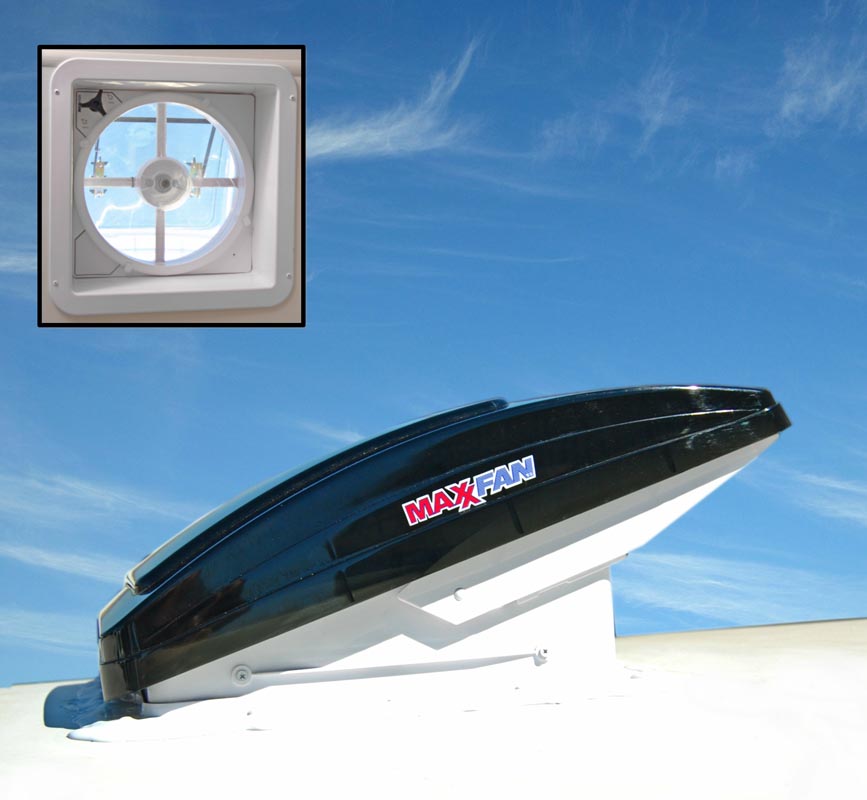

*Thermal Insulated Bedroom Ceiling Vent
*XL Furnace for Extreme Camping Heat System
*Exterior Shower Protected by 1″ Thick Thermal Insulated Door
*1.2.3 Built Outdoors Tough Warranty
*Rugged 2″ Bonded Aluminum Frame Walls (Every Wall)
*All New Rugged Fiberglass Front Cap w/ Lower Armor Guard Rock Protection
*HD Laminated Fiberglass Hardwall – Front, Rear, Side, & Slide-Out Walls

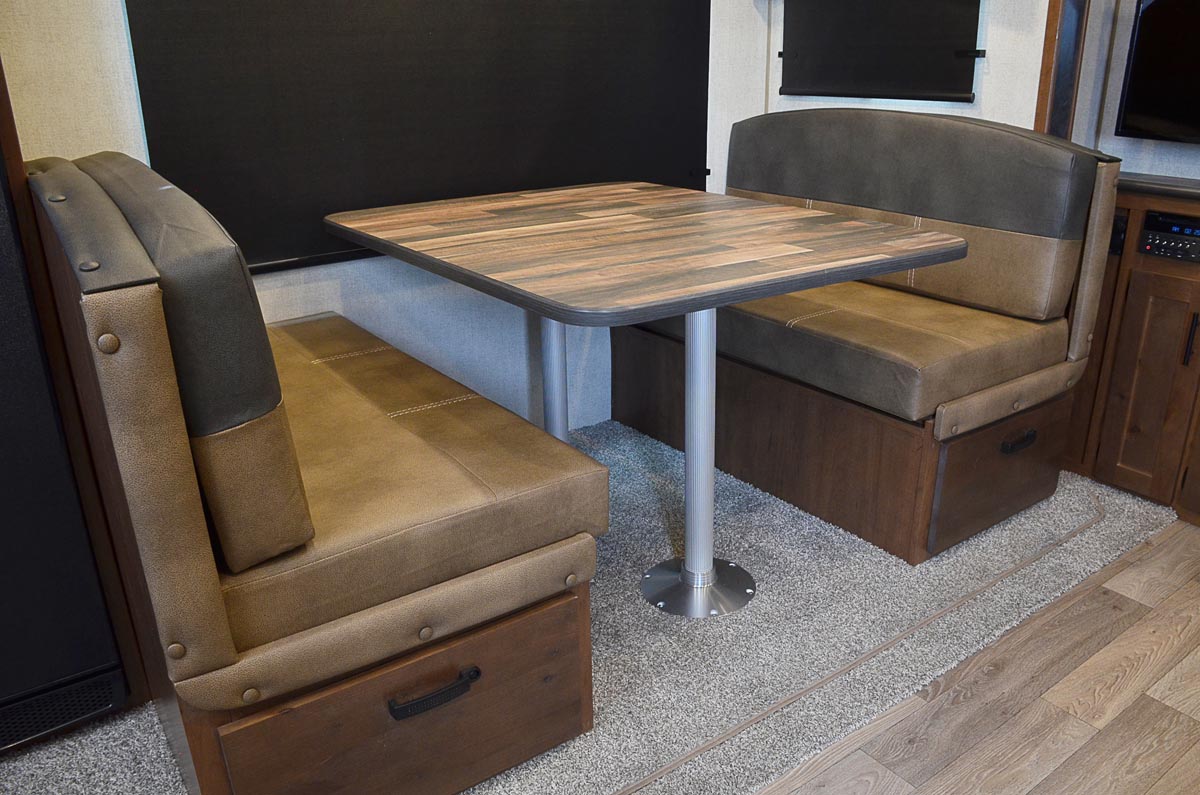

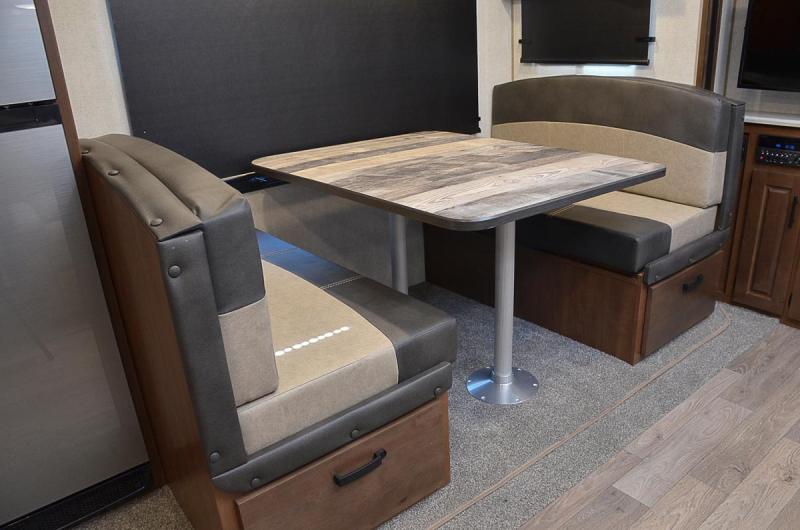

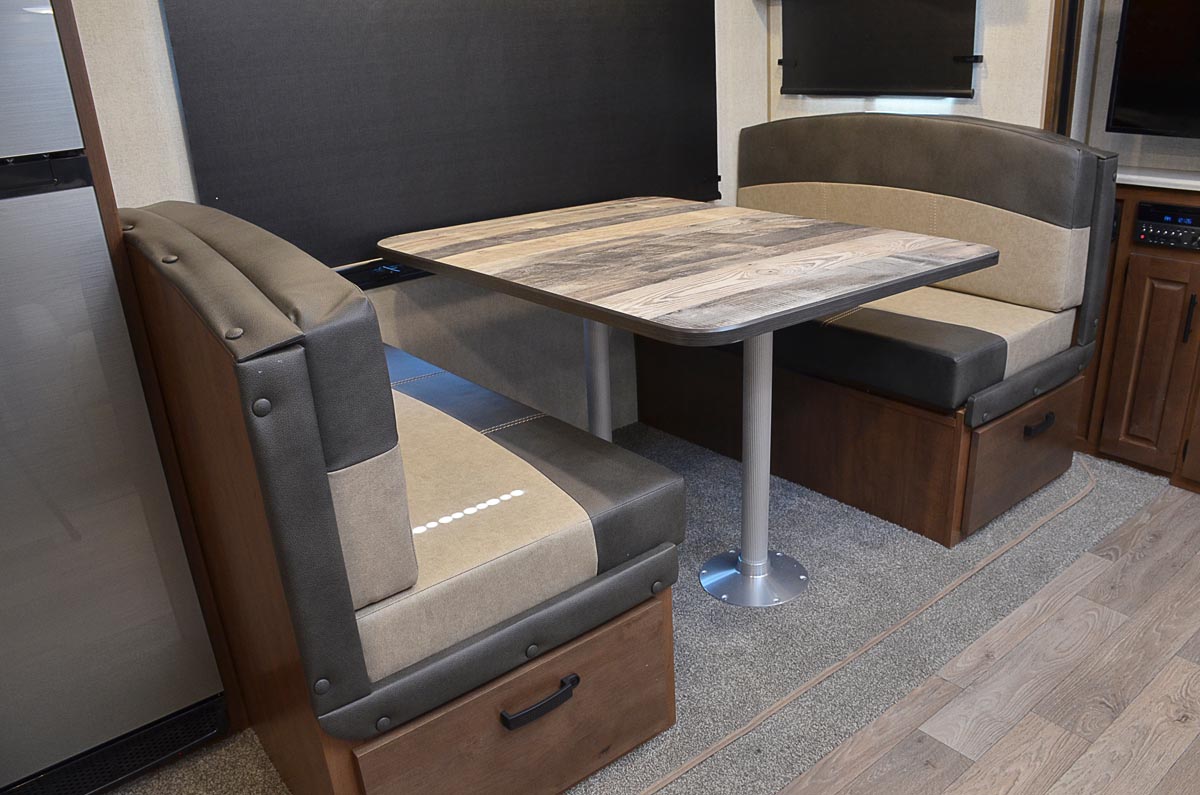

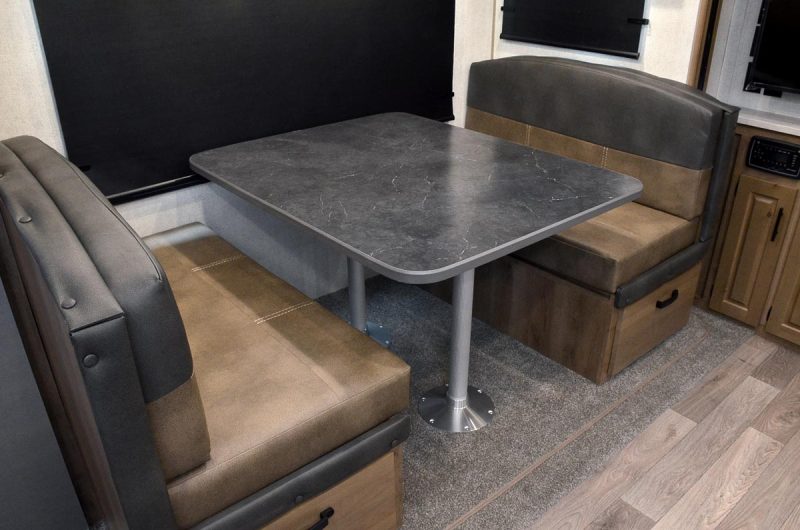

*Eco-Friendly Laminated Wall CutOuts in Dinette – 40% Thicker Cushions
80 Gallon Fresh water Capacity
Custom-Built Cambered Off-Road Chassis
Underslung Off Road Hitch
Integrated A-Frame Chassis Construction
*Xtra Tall 24″ Power Tongue Jack w/ LED Light
*Off Road X4 Suspension – MorRyde AllTrek 4000, HD Shackle Kit
*KYB World Class Shock Absorbers
*15″ Rugged Mud Flaps
*Rugged “Armor Guard” XL Protected Bumper
*Heavy Duty 5 Lug 5100 LB Axles w/ Off-Road Brake System (All Models)

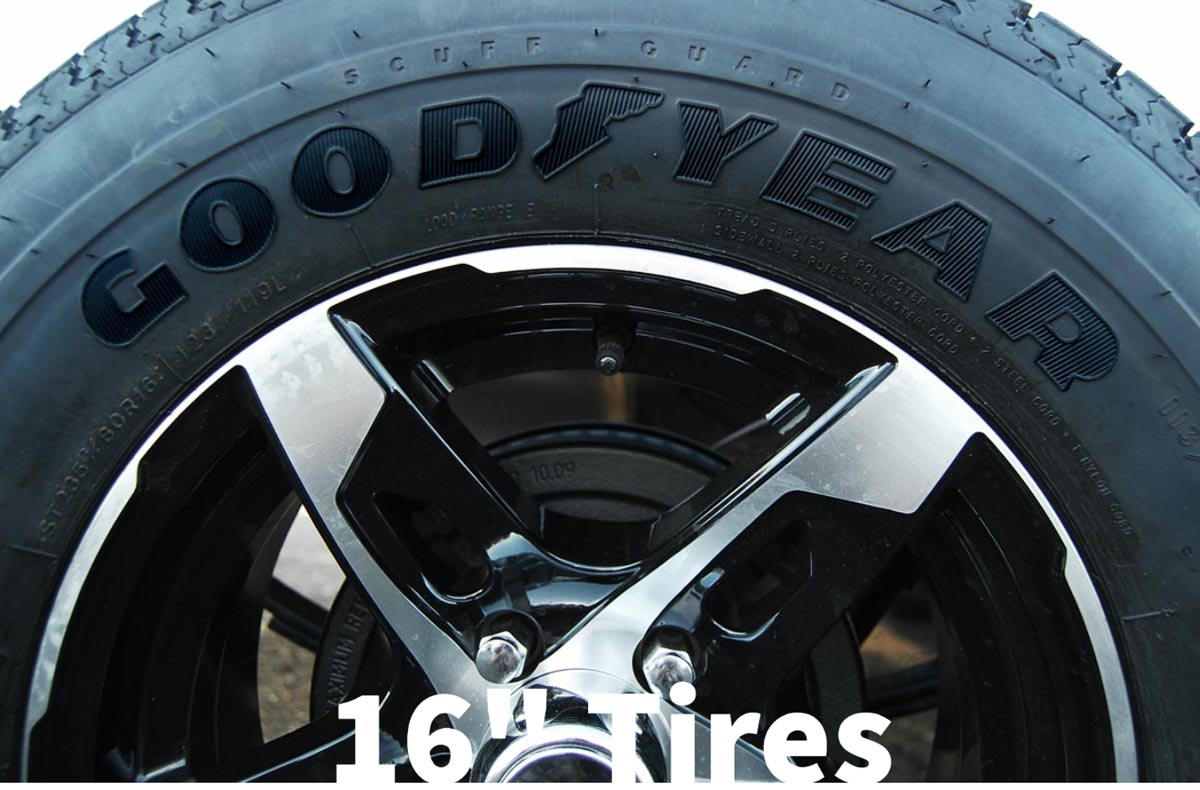

*16″ GoodYear Endurance 235 E Range 10 Ply Radial Tires (Safety/Warranty)
*Laminated Fiberglass Slide-Out Floor (Slide-Out Models)
*Laminated Aluminum Frame Slide-Out Ceiling (Slide-Out Models)
*Roto-Torqued “Outdoors Tough” Cabinetry (All Cabinets)
*Off-Road Clearance Lights
*Radius-Crowned Full Walk-On Roof w/ HD Big Tube Rear Ladder
*Exterior Grade Tongue & Groove Plywood Sub-Floor
*Marine Grade Plywood Roof Decking
*Full Extension 100lb Metal Drawer Guides

*For full list of standard features please consult your local dealership or download a brochure HERE

Floor Length – 27′ Full Featured Dry Weight – 7680

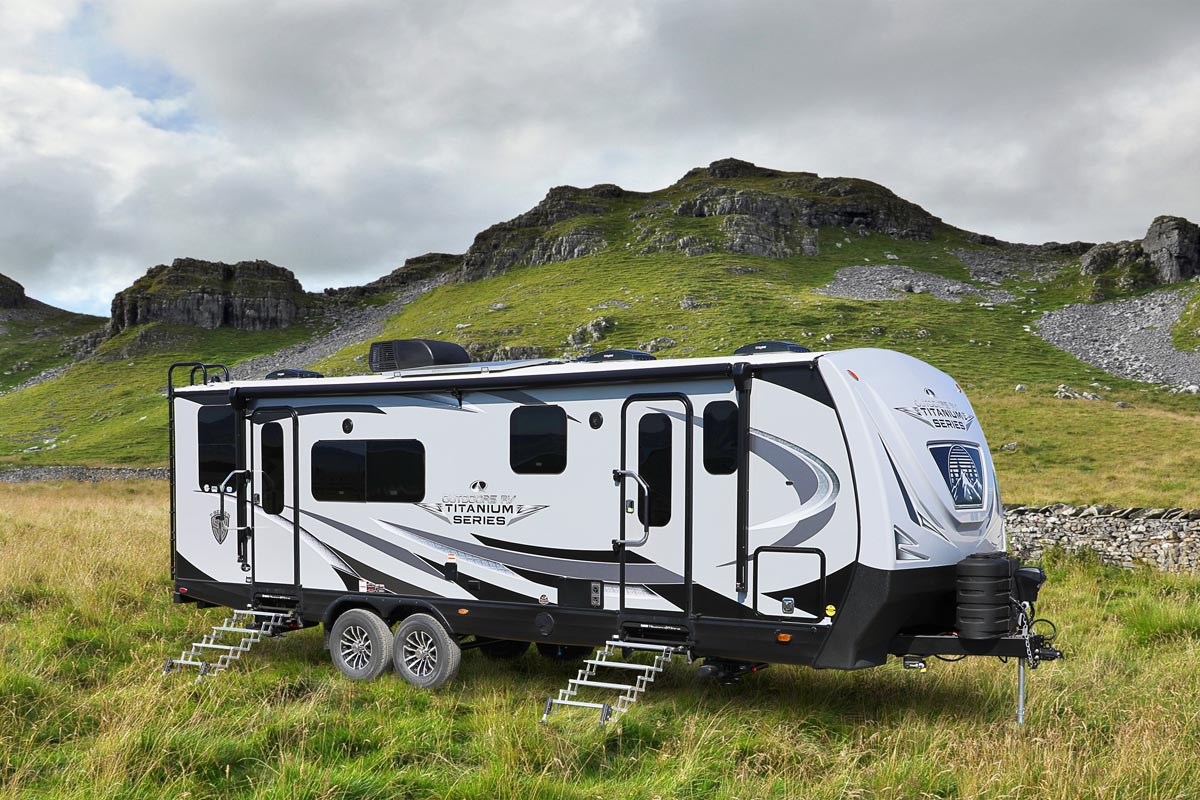

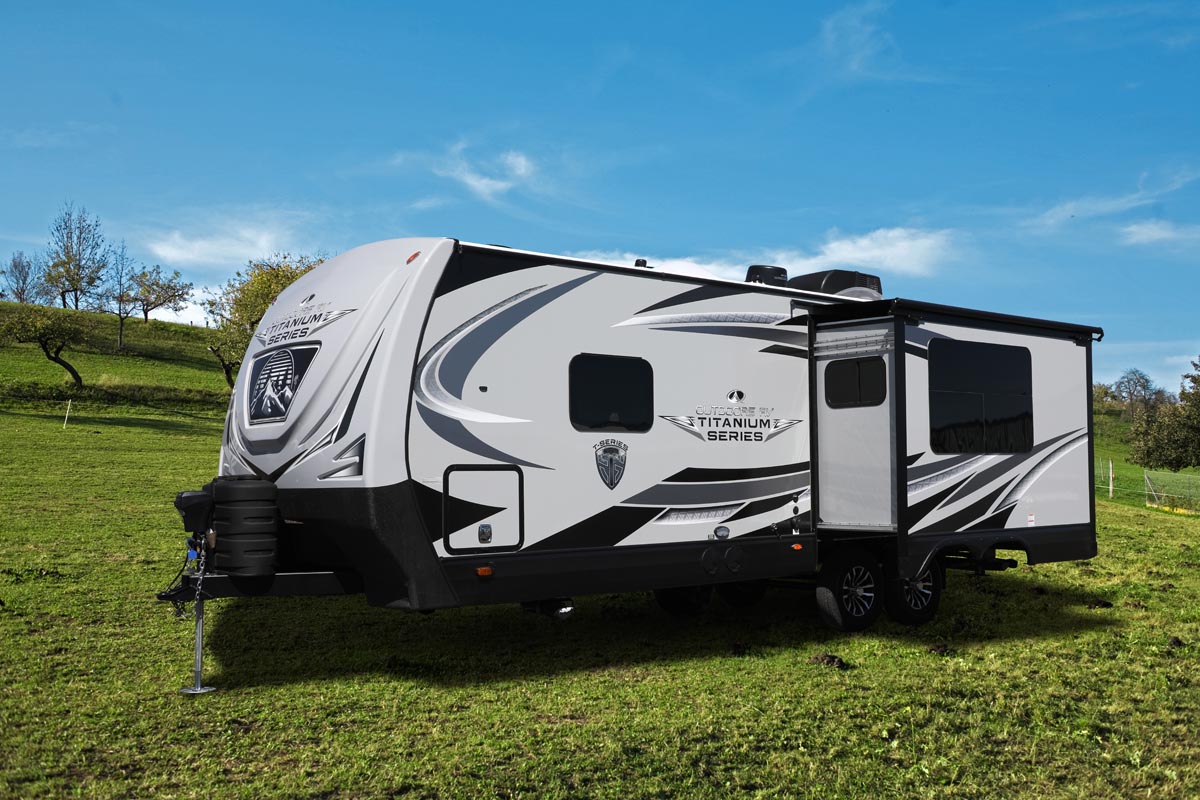

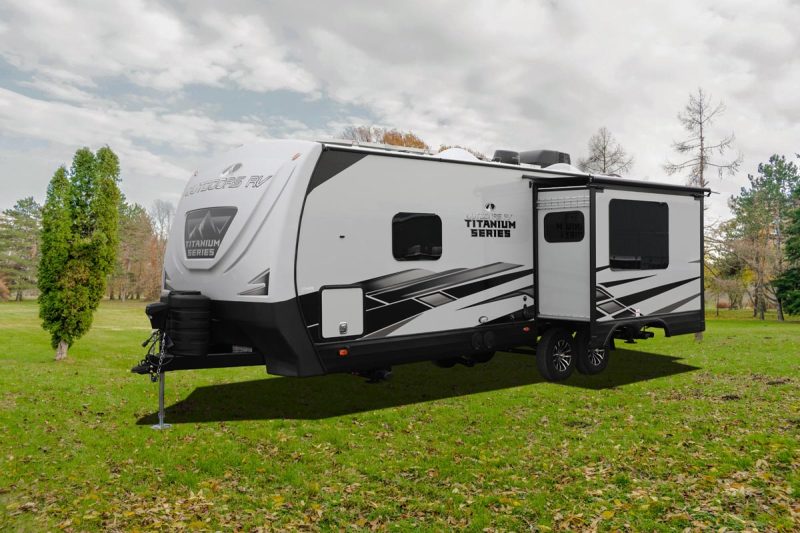

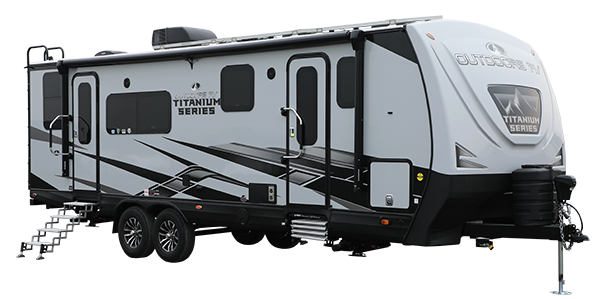

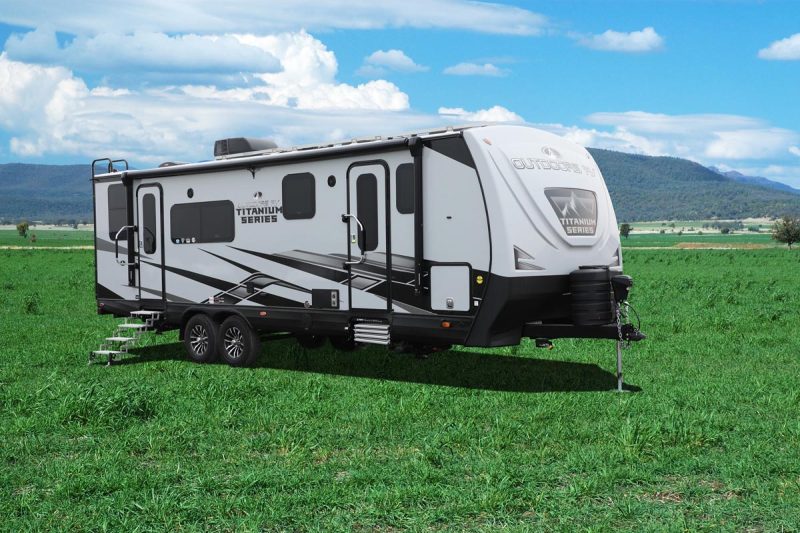

Titanium Series

Optional Premium Package

*Ground Control TT Auto Leveling System
*Lamilux HD 4000 High Gloss Silver Fiberglass w/ Frameless Windows
*Titanium Series Graphics Package
*Frameless Window Entry Door w/ Privacy Black-Out Roll Shade
*Brushed Aluminum Grab Bar Handle
*15K Coleman A/C / Back-up Lights
*Remote Camping Pkg (Controls Awning, Slide-Out, Exterior Light)
*Raised Panel Knotty Alder Cabinet Doors
*Hardwood Window Valances w/ Privacy Black-Out Roll Shades
*Hardwood Slide-Out Fascia (Slide-Out Models)

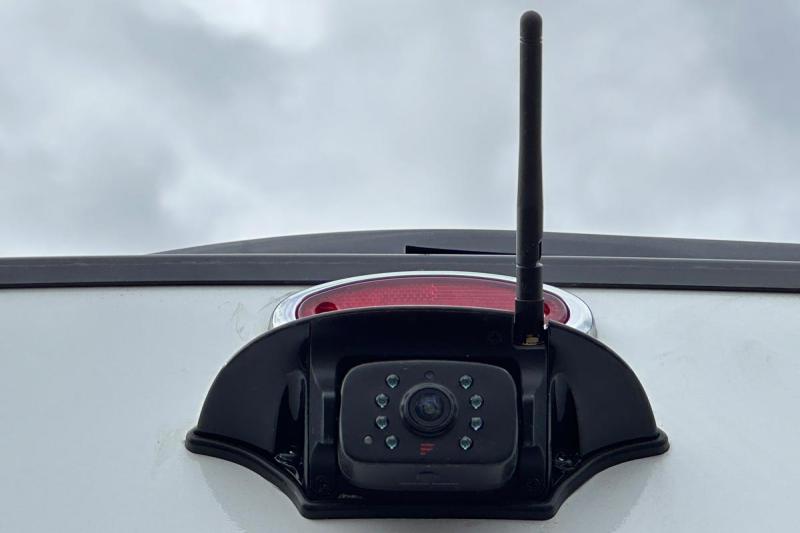

*Wireless Rear Observation Camera
*Wireless Side Turn Camera System

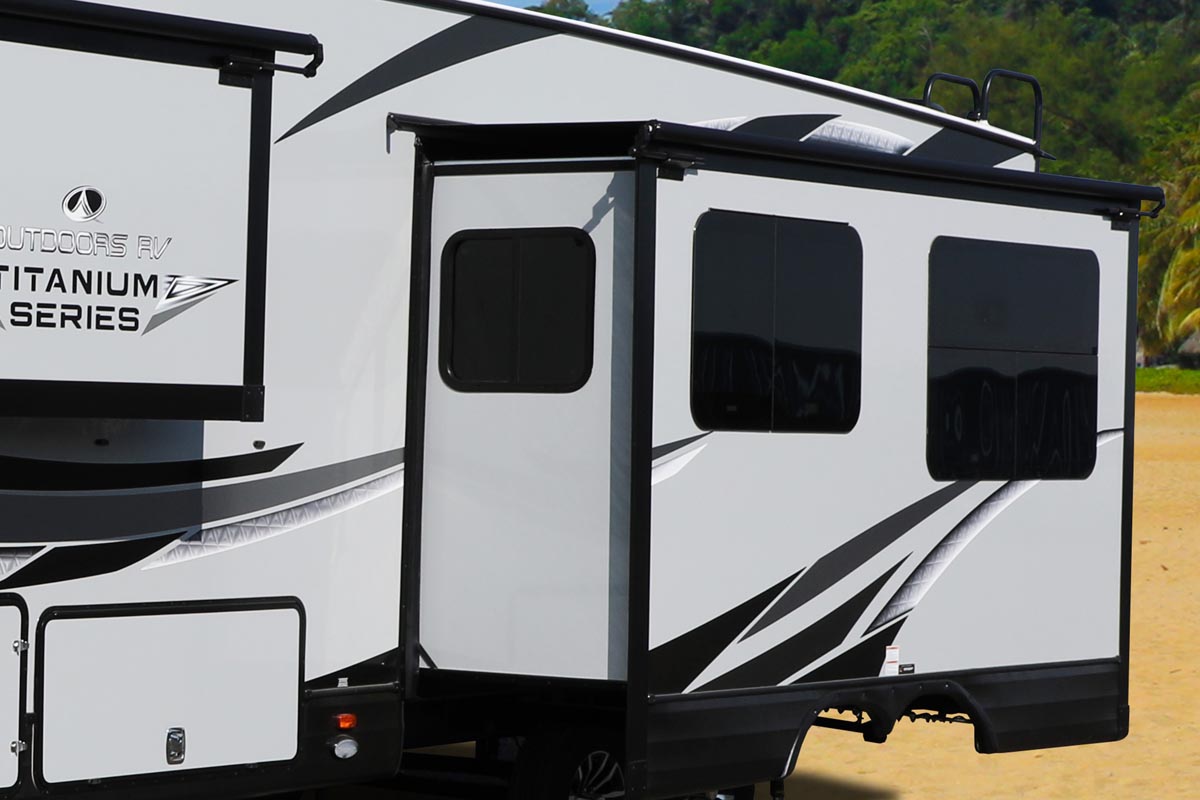

*Slide-Topper Awnings (Slide-Out Models)

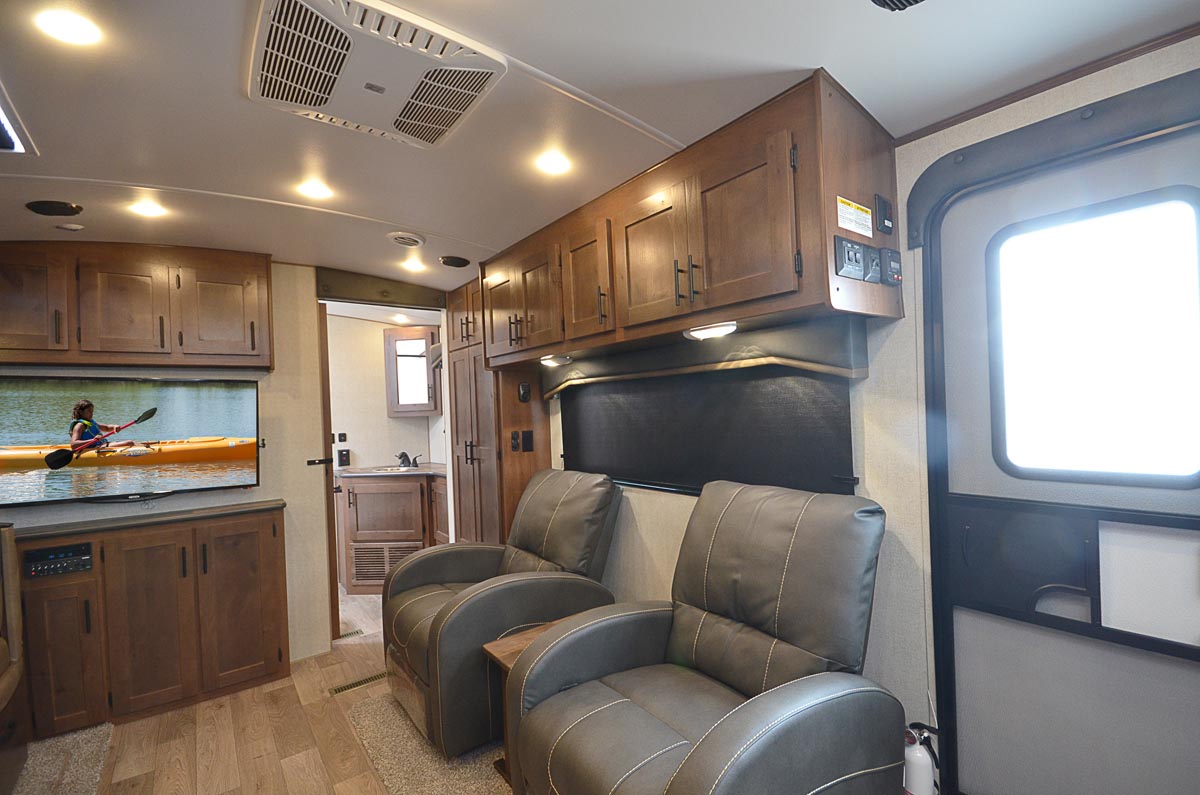

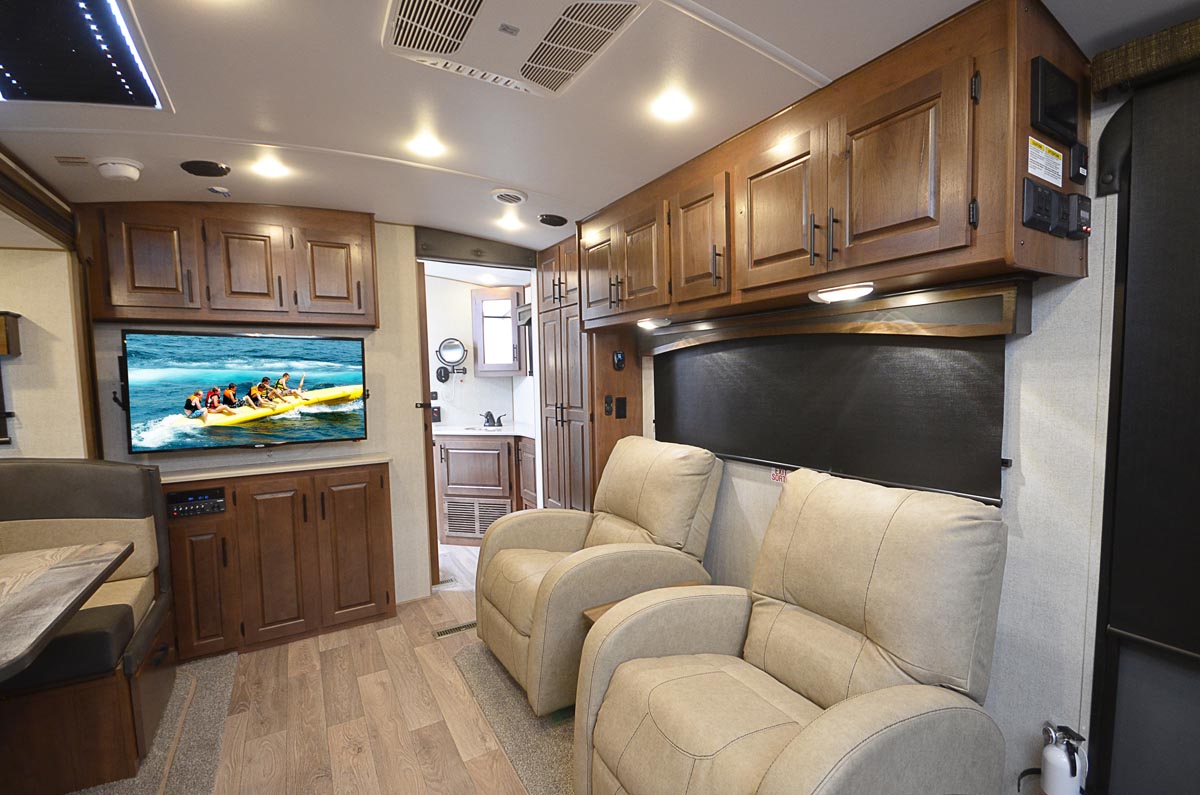

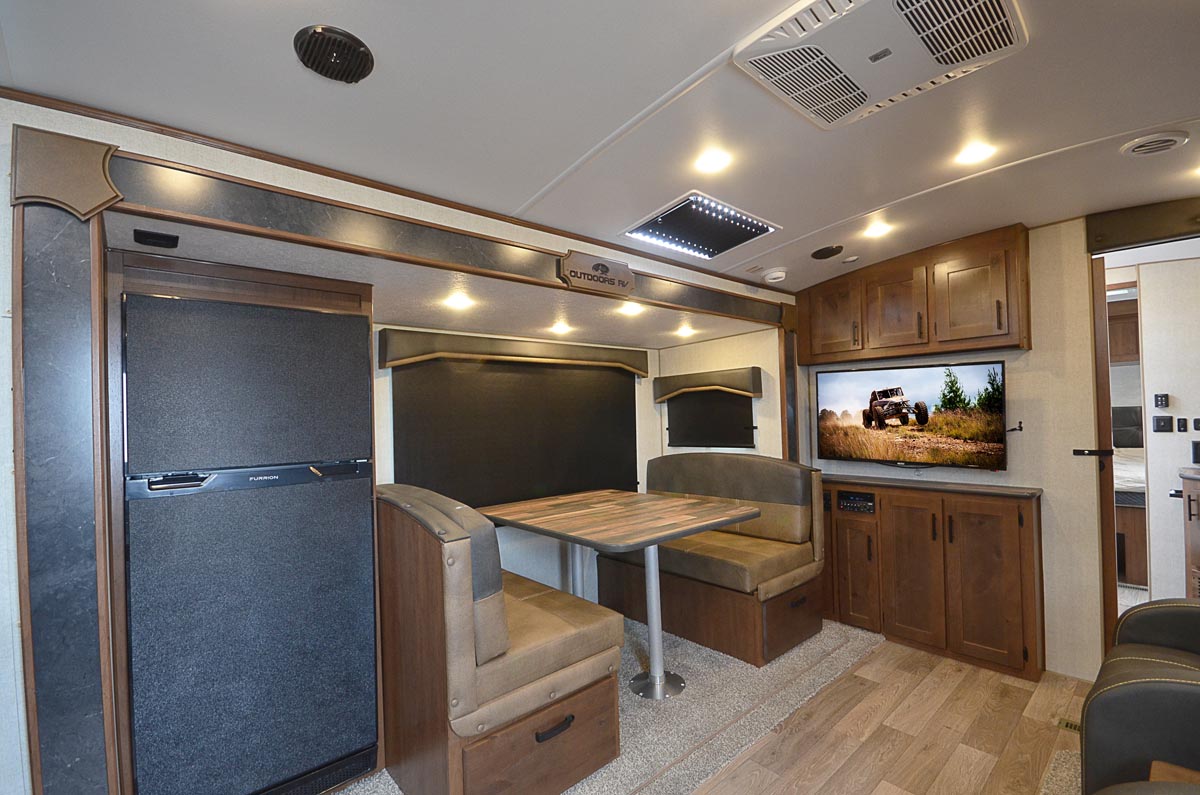

*Mountain Lodge Inspired Interiors
*LG Solid Surface Tops
(Galley, Lavy, Entertainment Center, & Bed Nightstands)

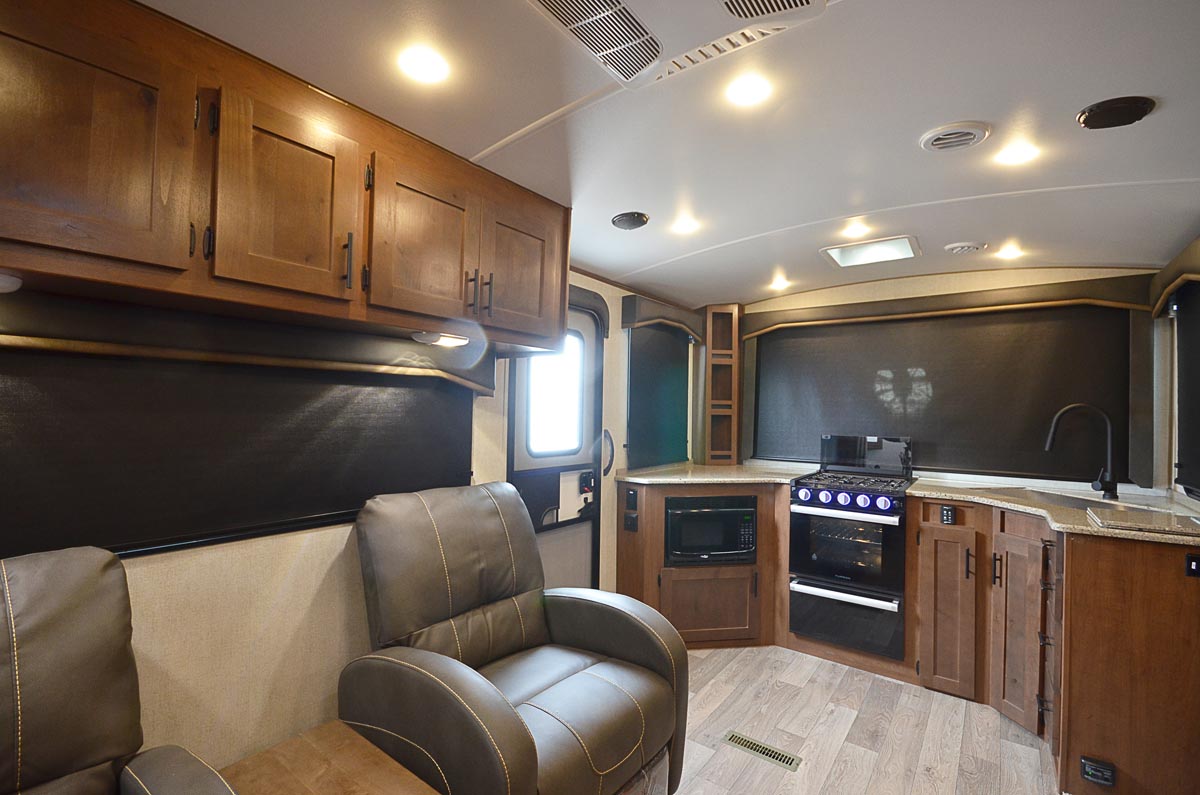

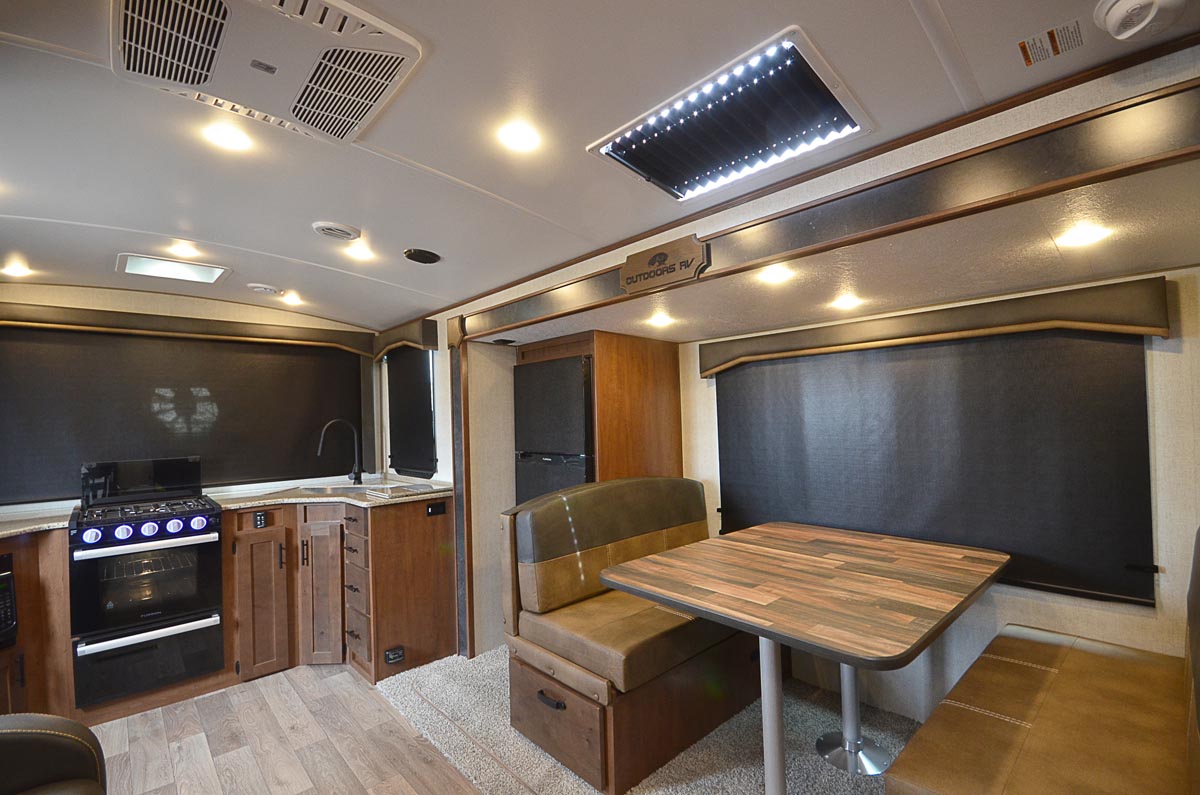

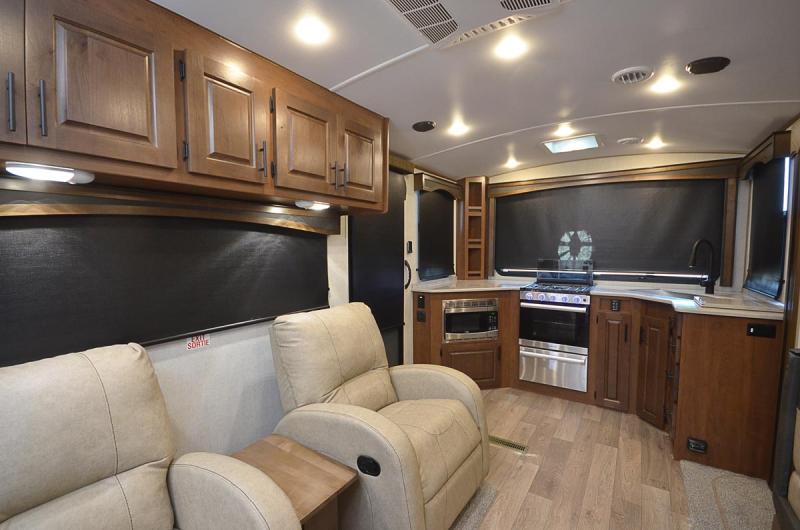

*Mountain Lodge Inspired Kitchen Package

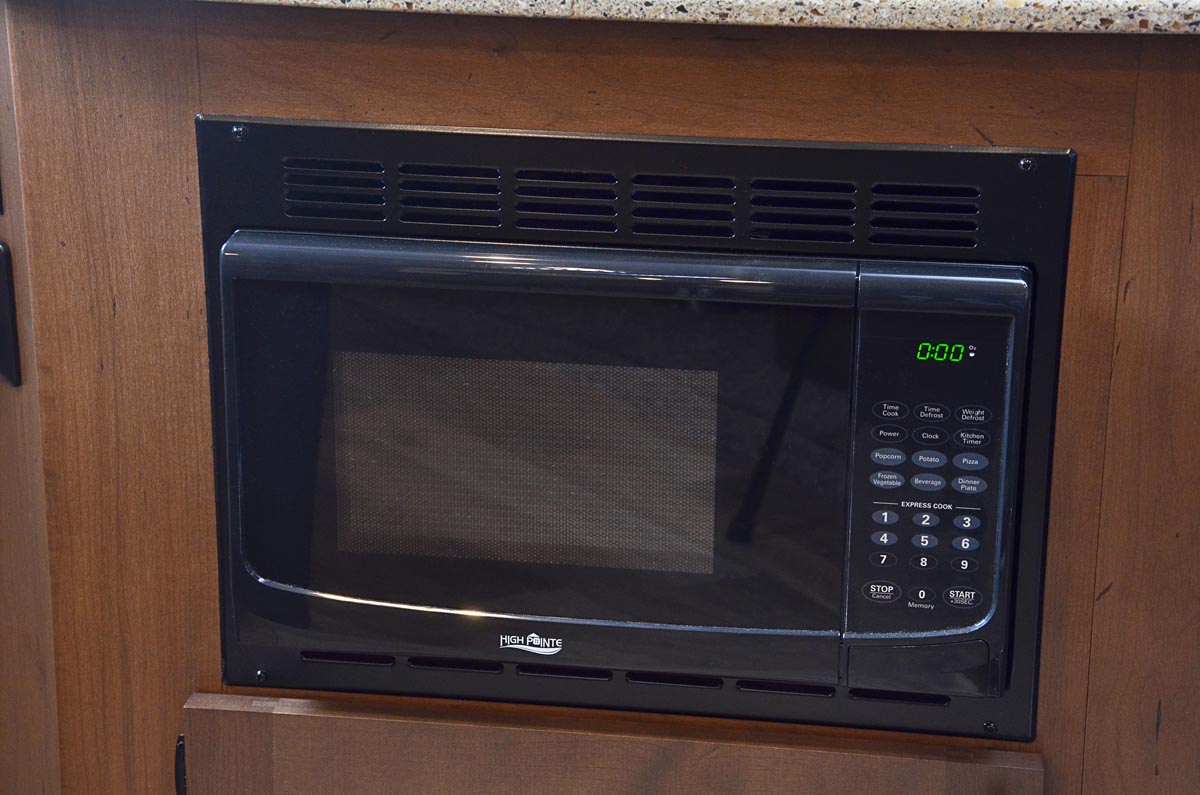

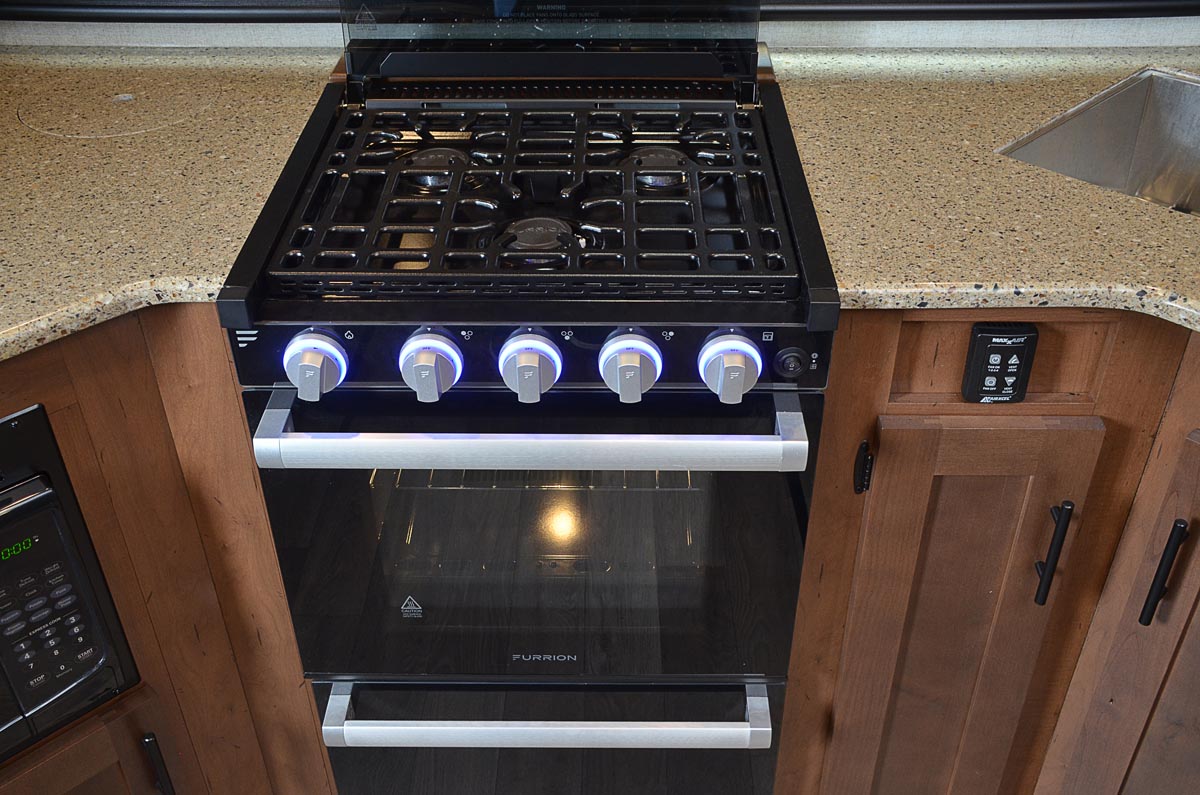

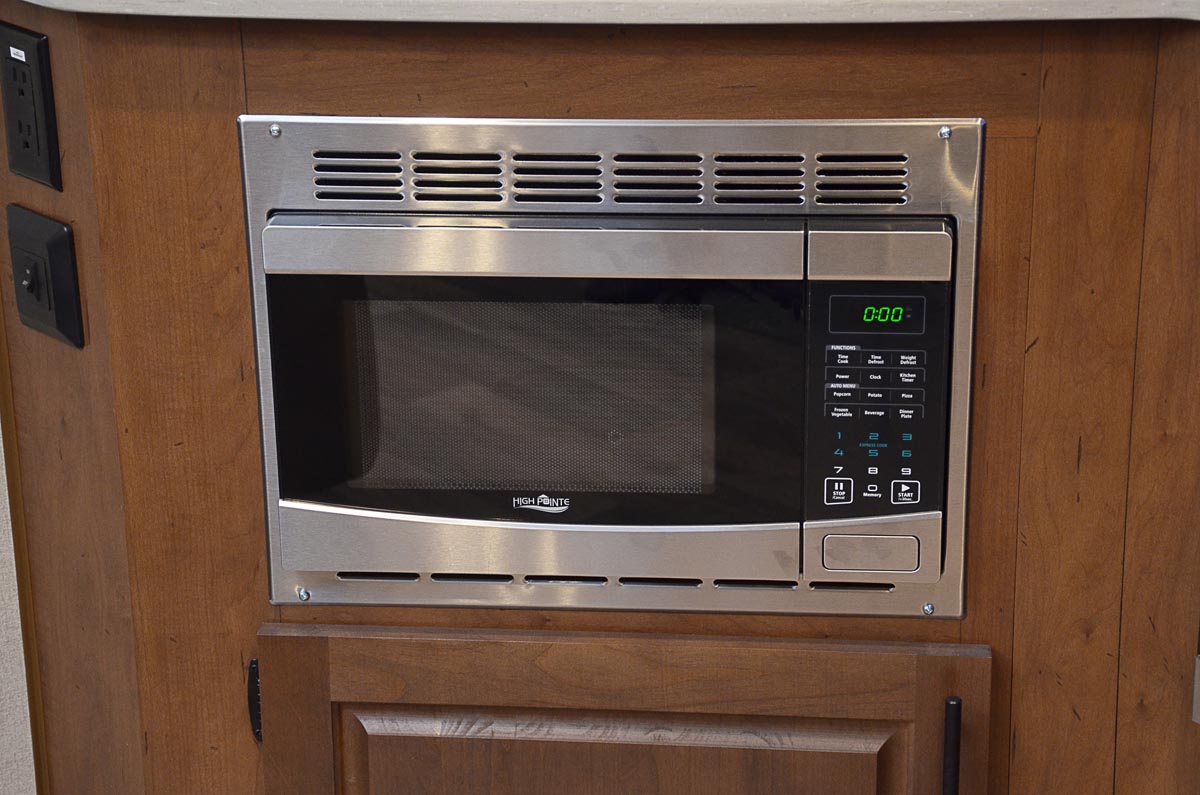

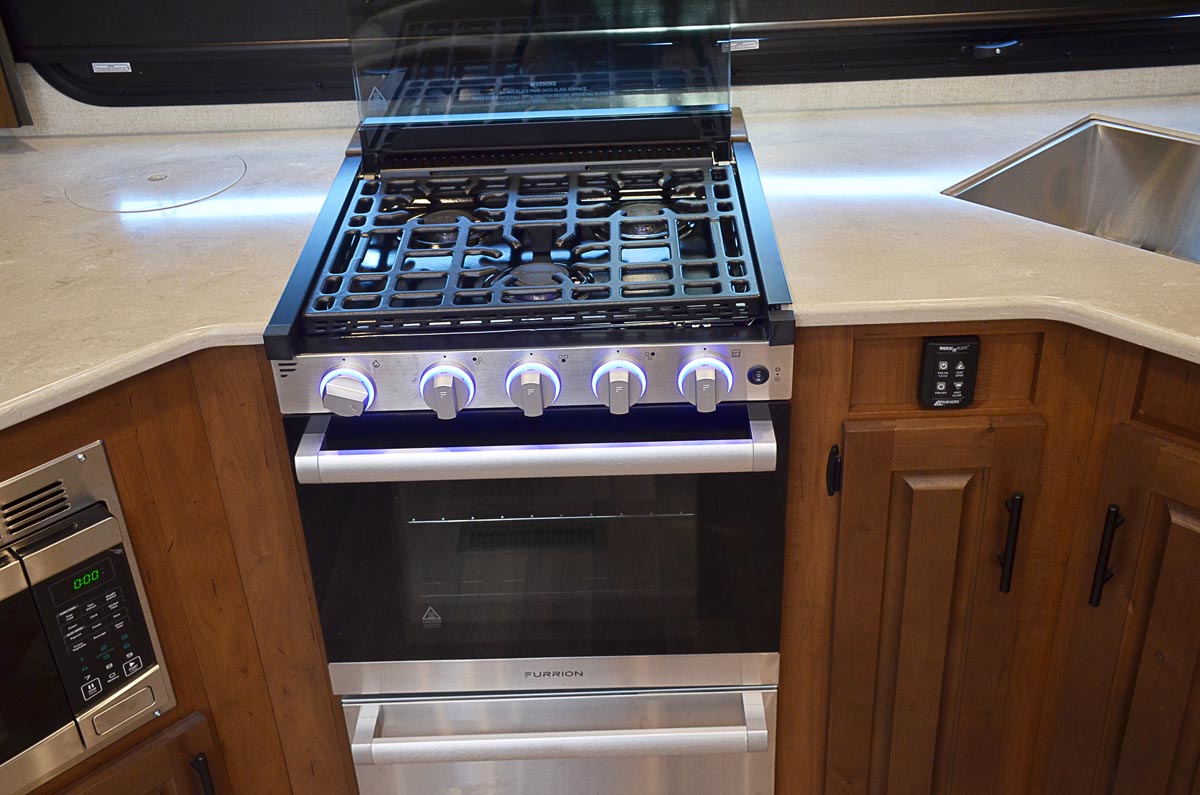

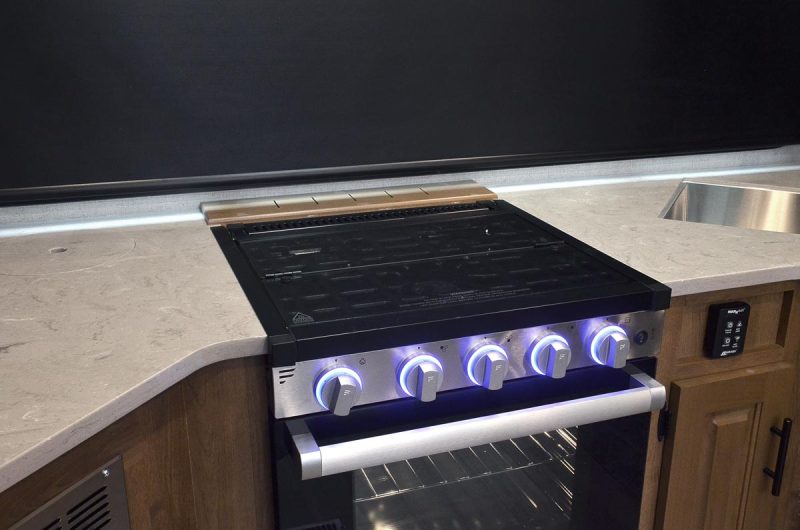

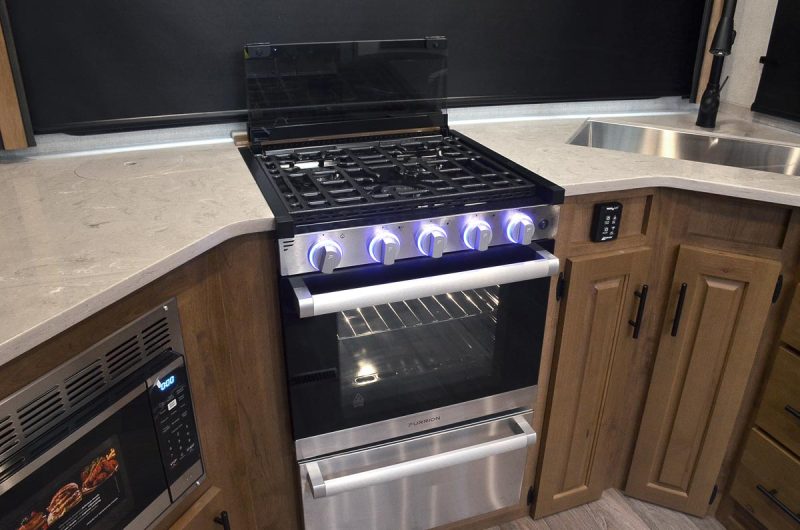

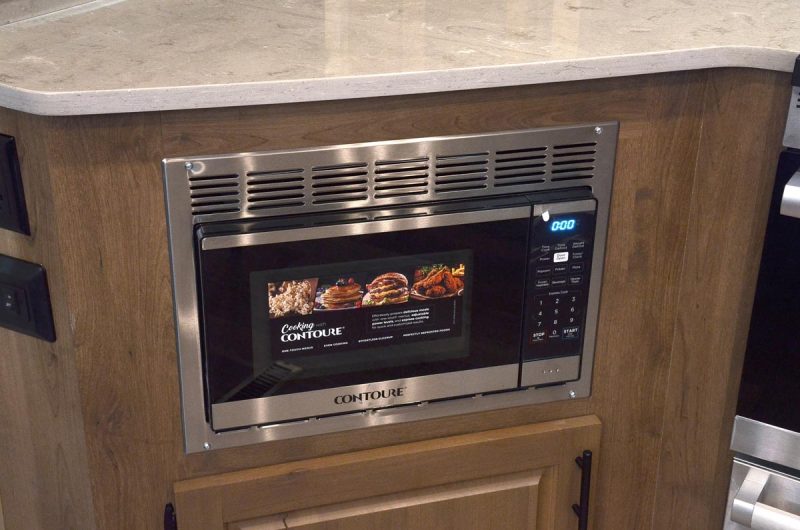

*Stainless Steel Sunken Range, Microwave, & Range Hood

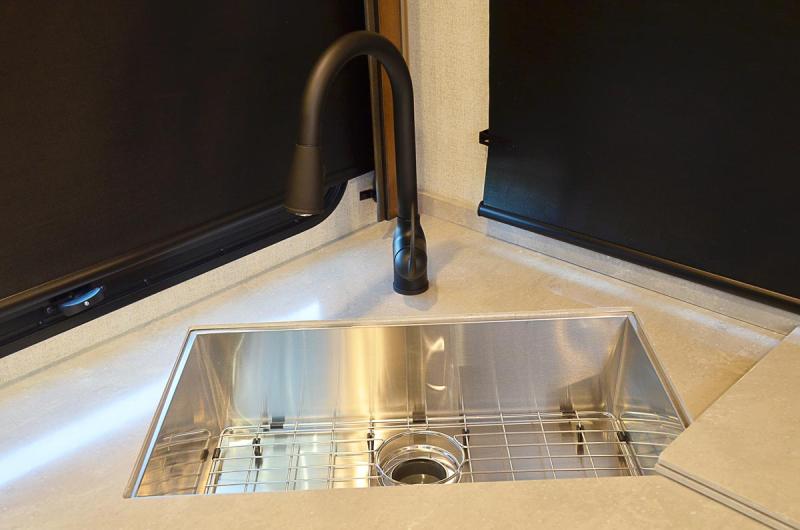

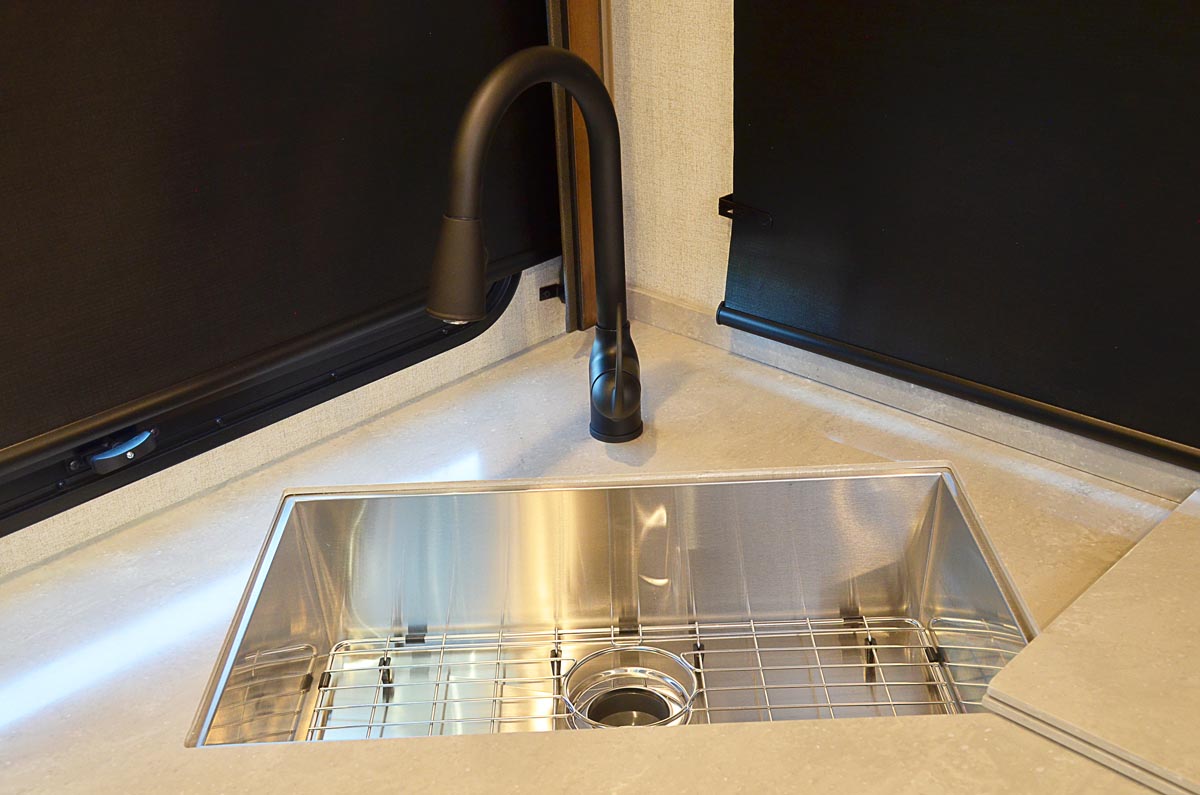

*Upgraded High Rise (Single Lever w/ Pull Out) Kitchen Faucet

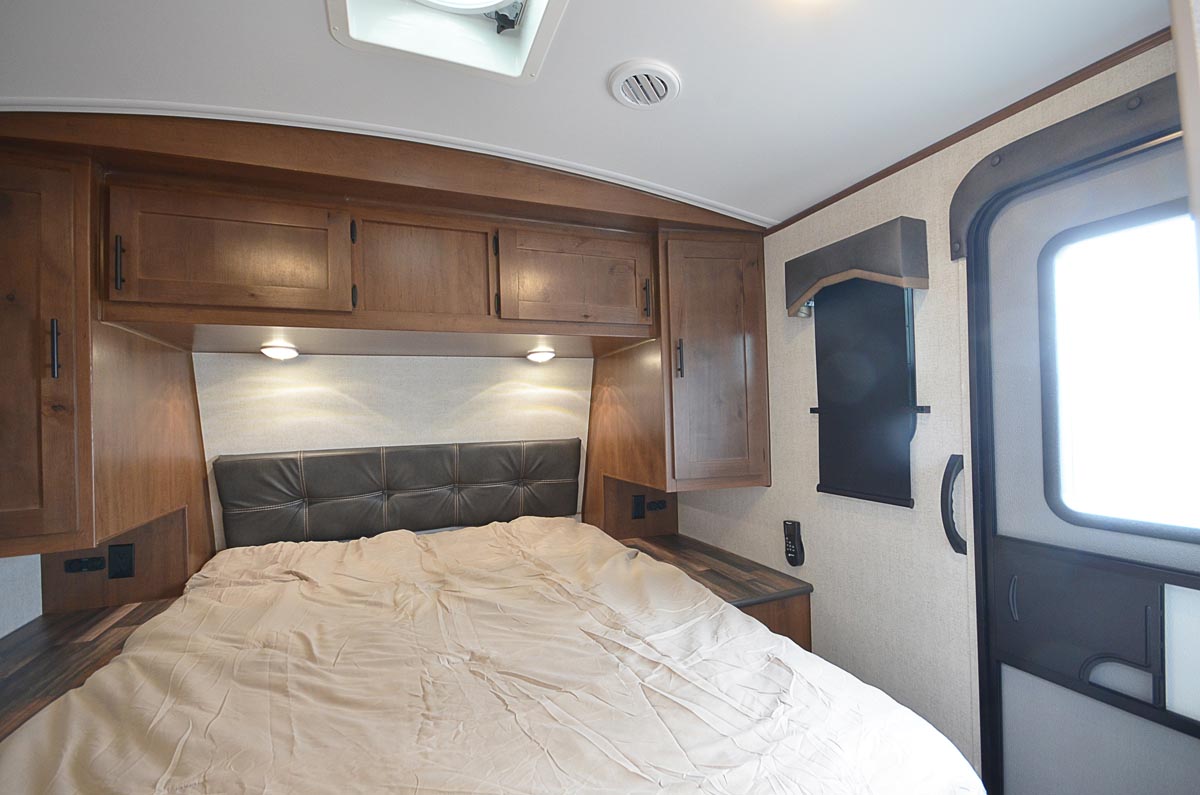

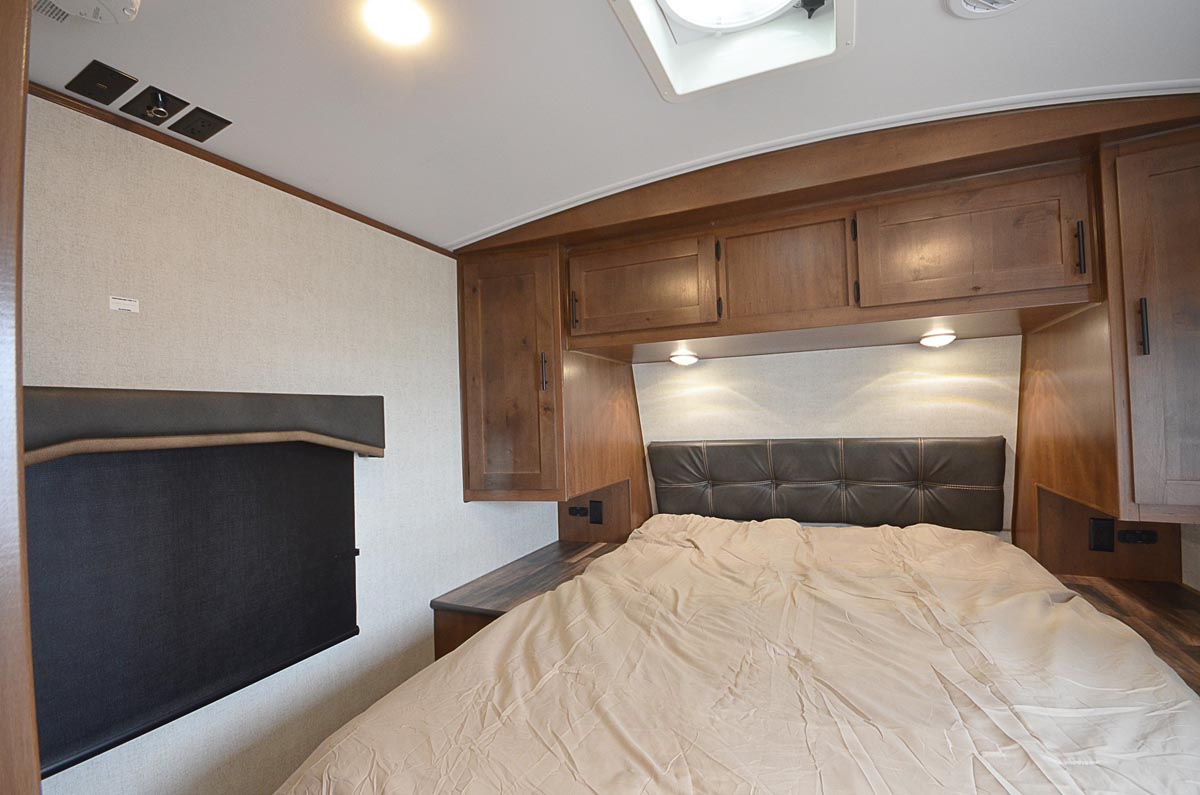

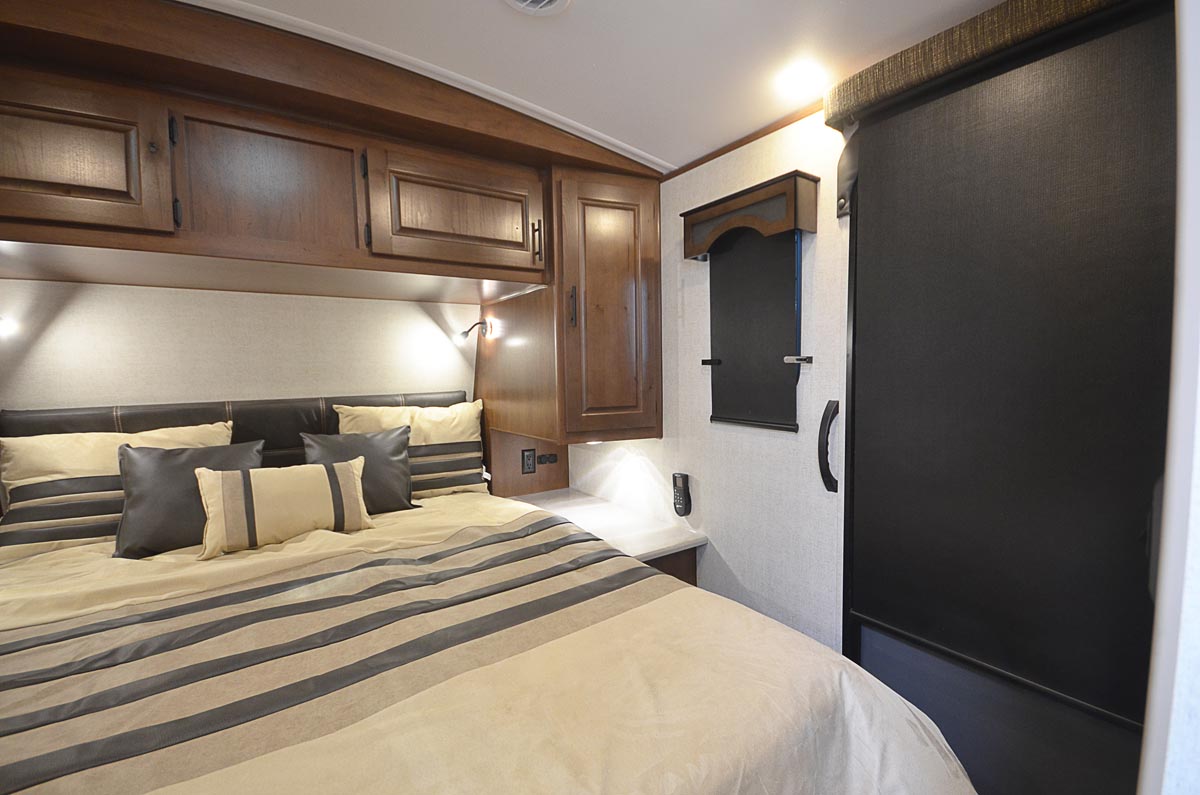

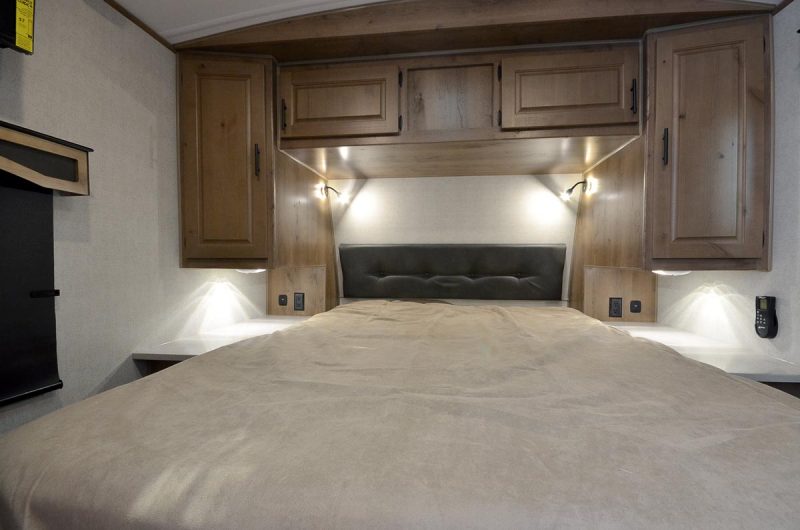

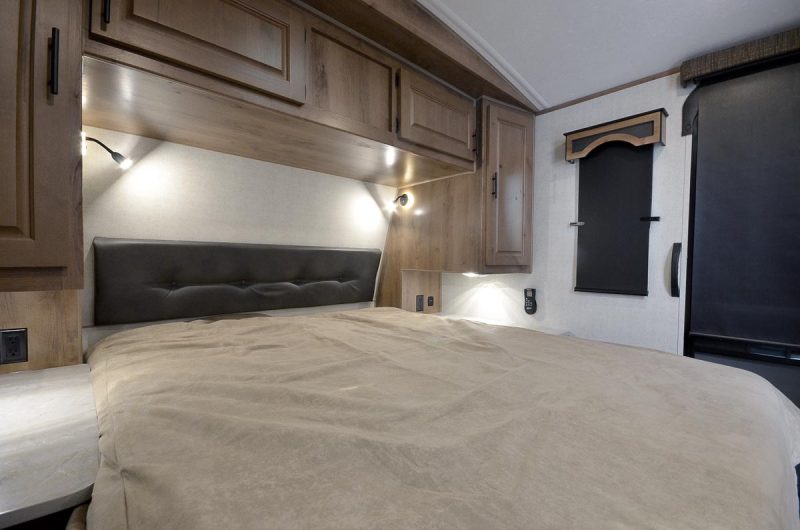

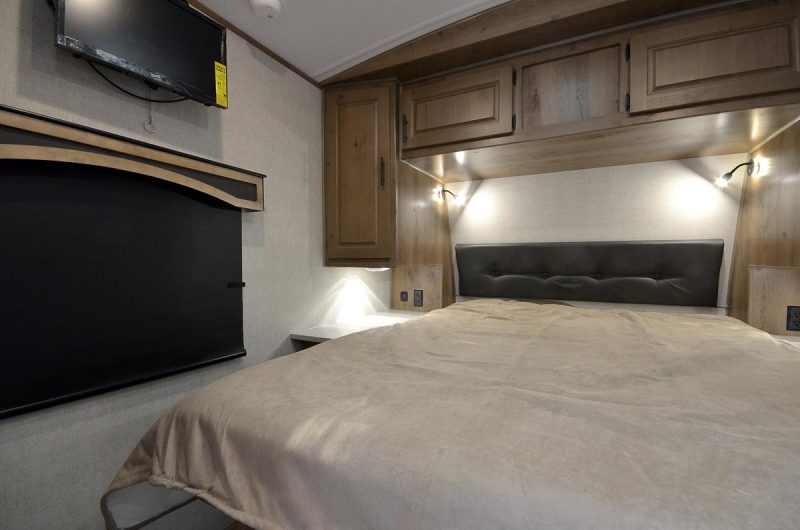

*Mountain Inspired Bedroom Package

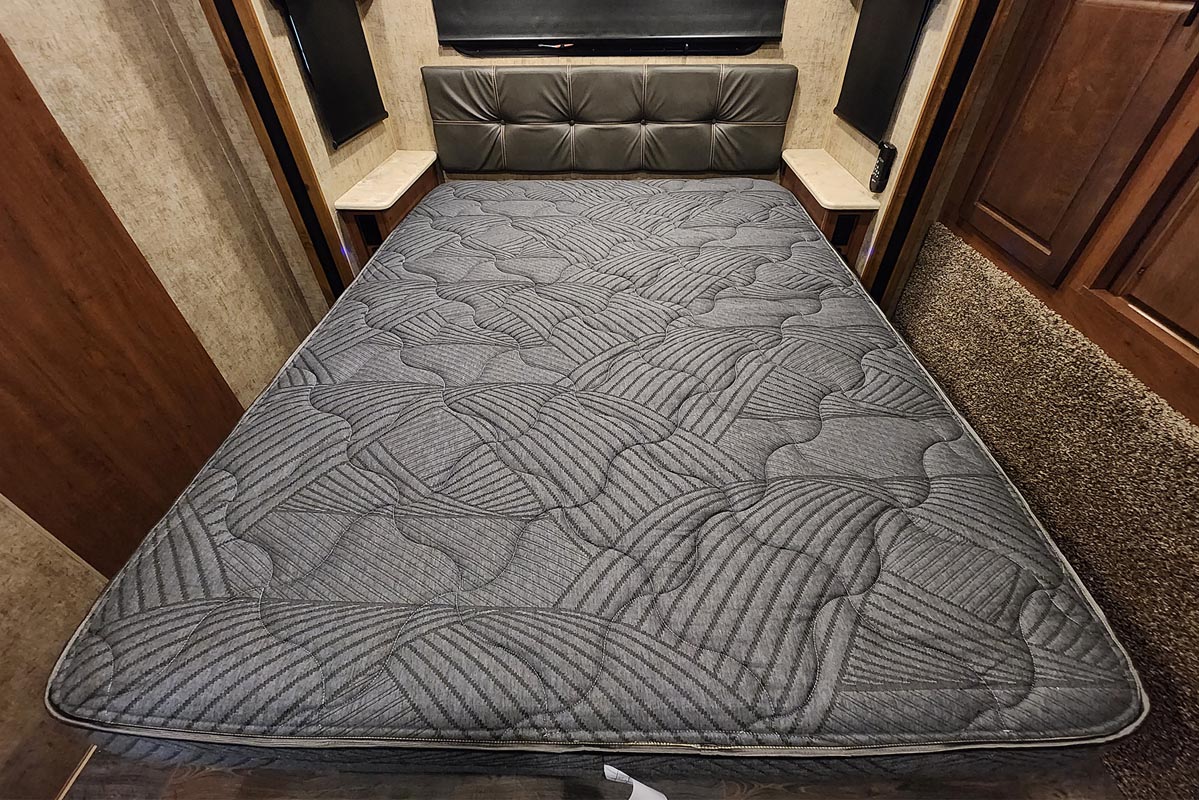

*Premium Gel Infused Cooling Memory Foam Heartland Mattress
*Plush Mountain Lodge Bedspread w/ Accent Pillows

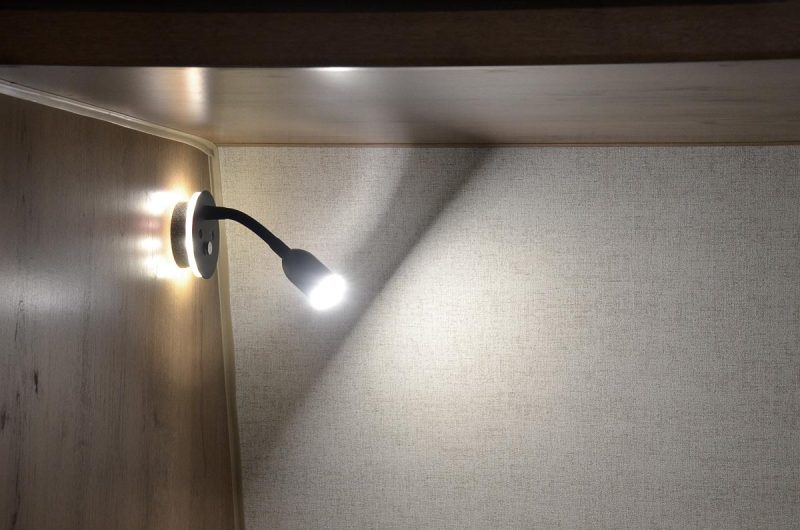

*Individual Bedroom Reading Lights w/ Underneath Cabinet Lighting

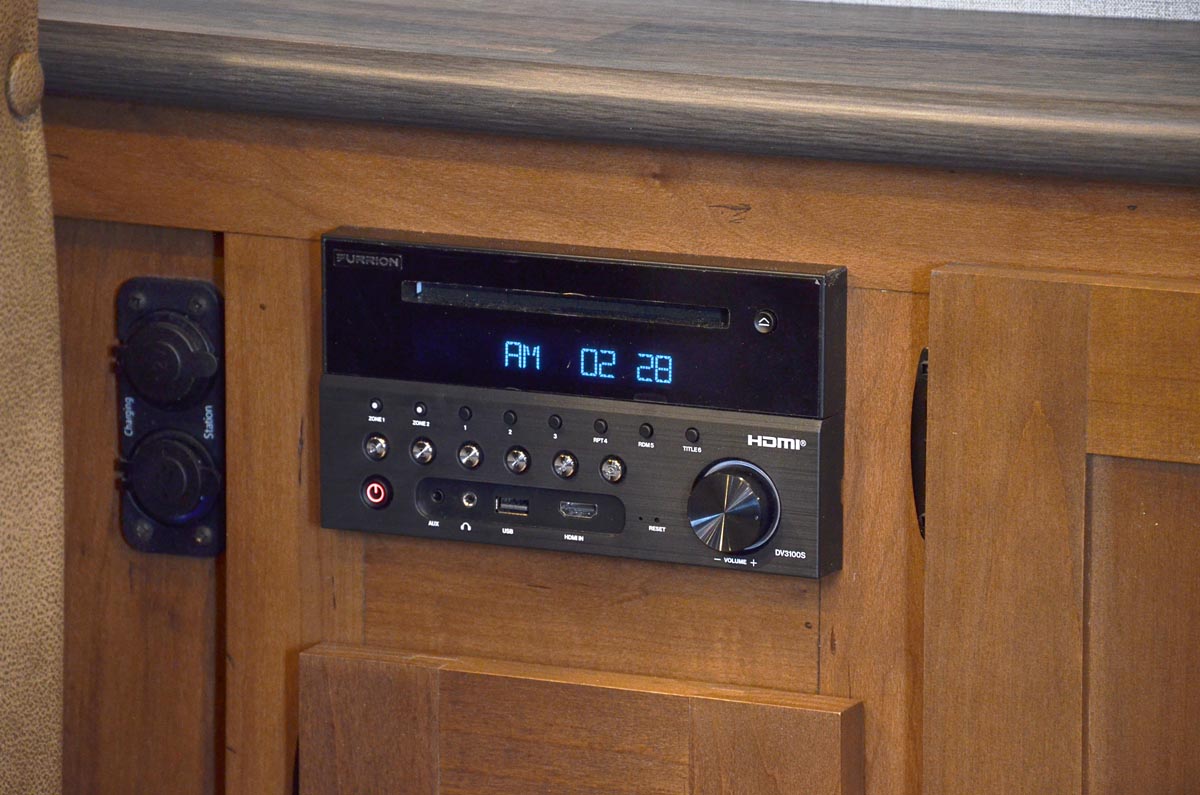

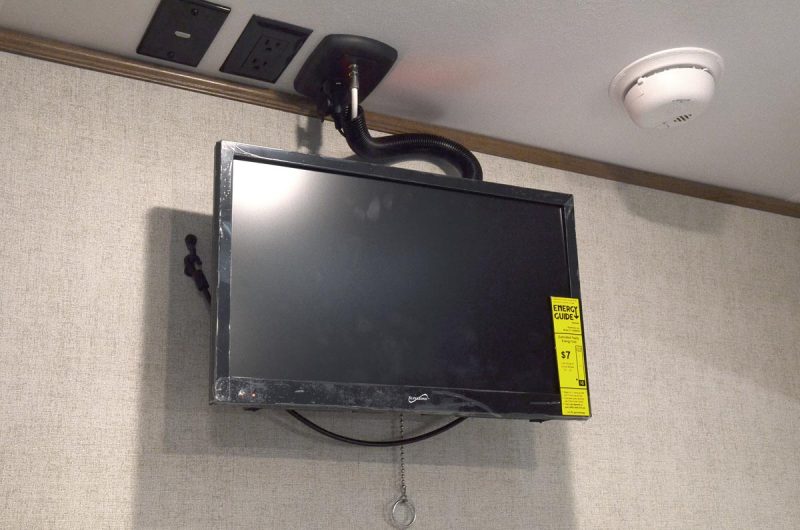

*Bedroom 12V TV w/ DVD (Select Models)

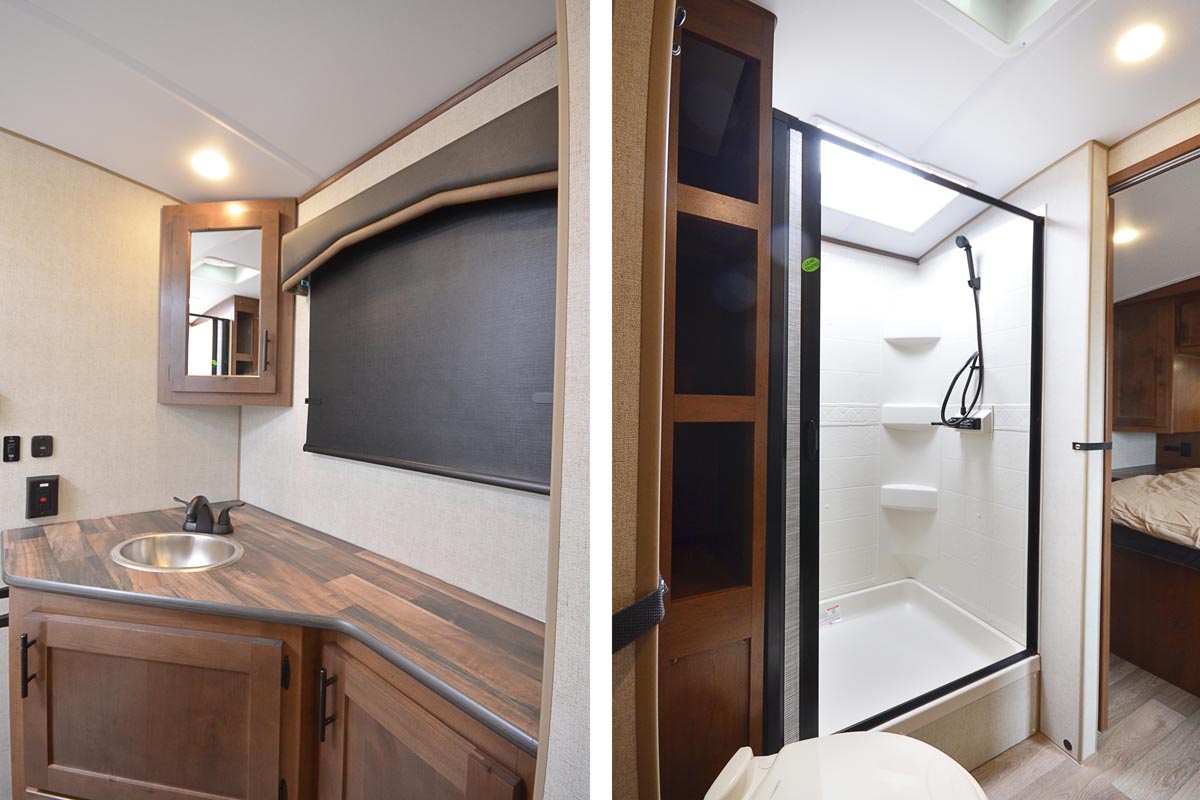

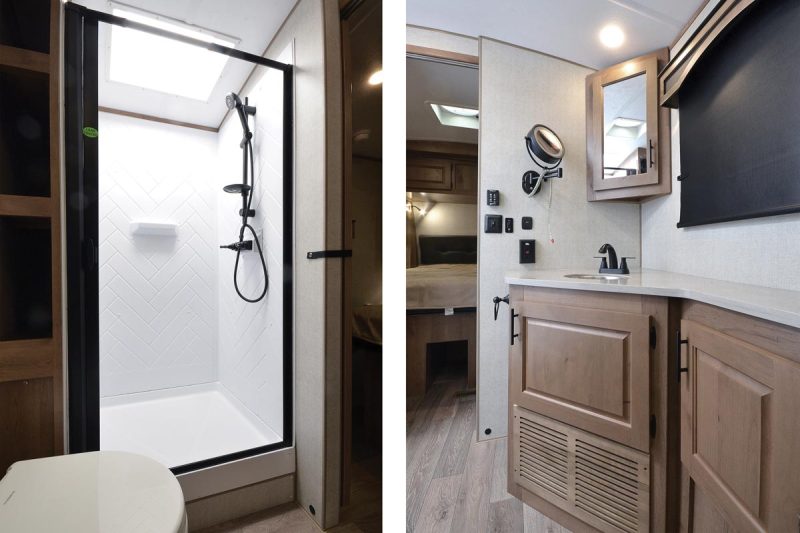

*Mountain Lodge Inspired Bathroom Package
(Shower Head & Toilet Paper Holder)

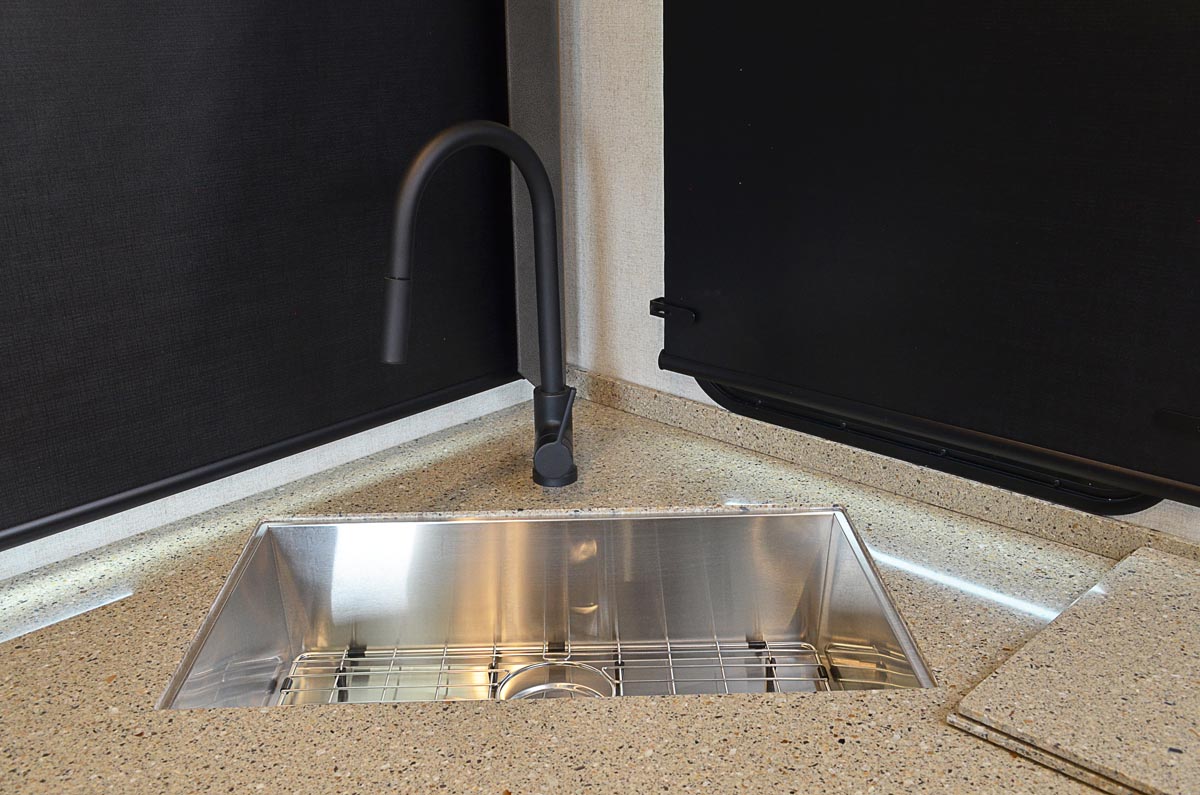

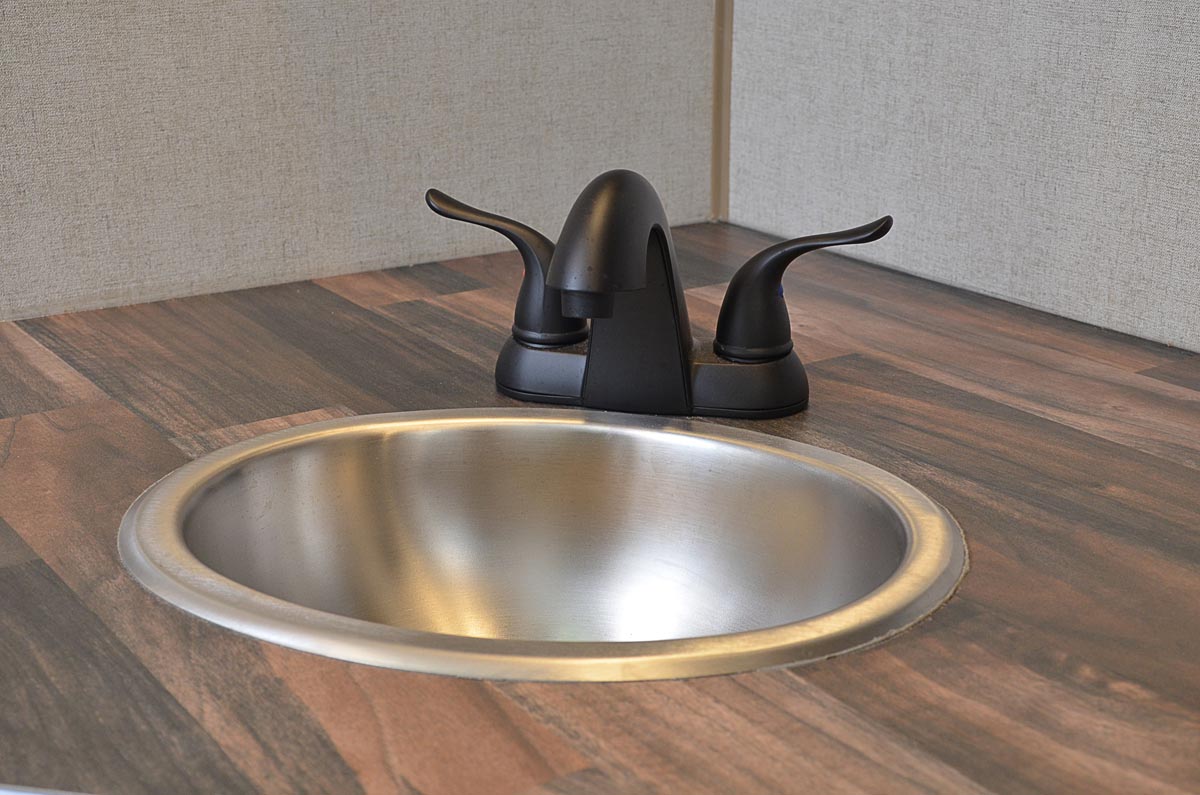

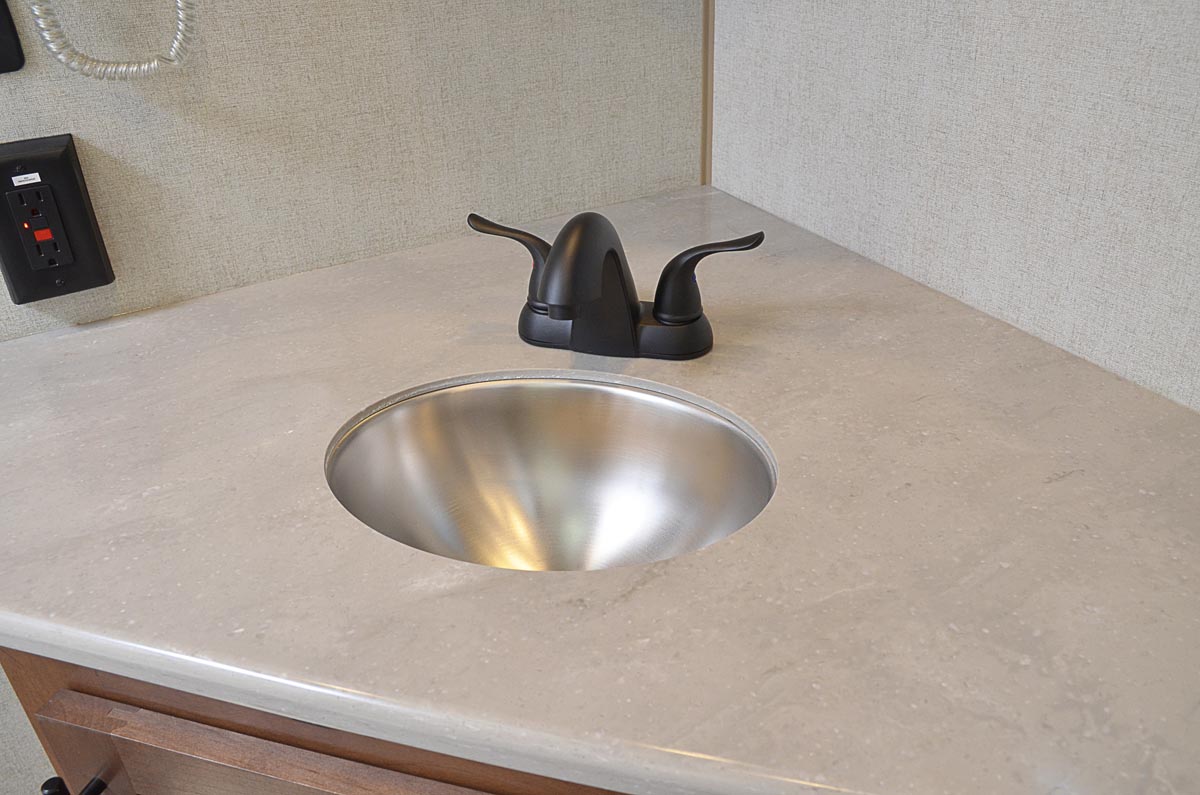

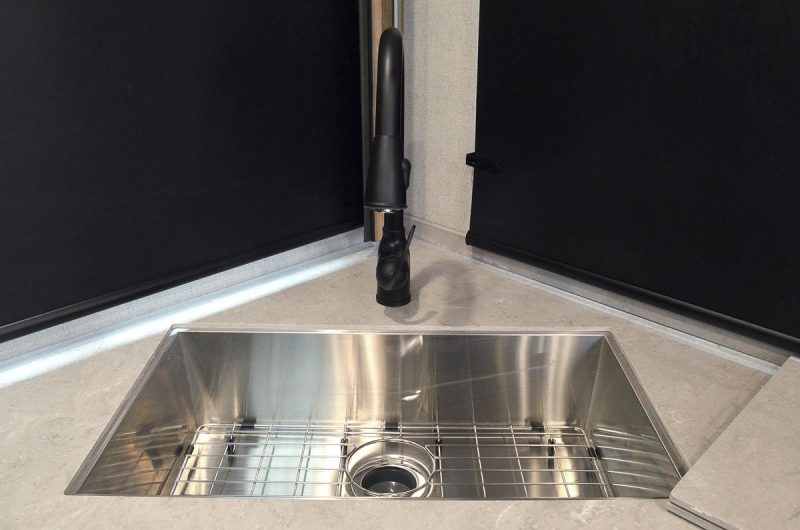

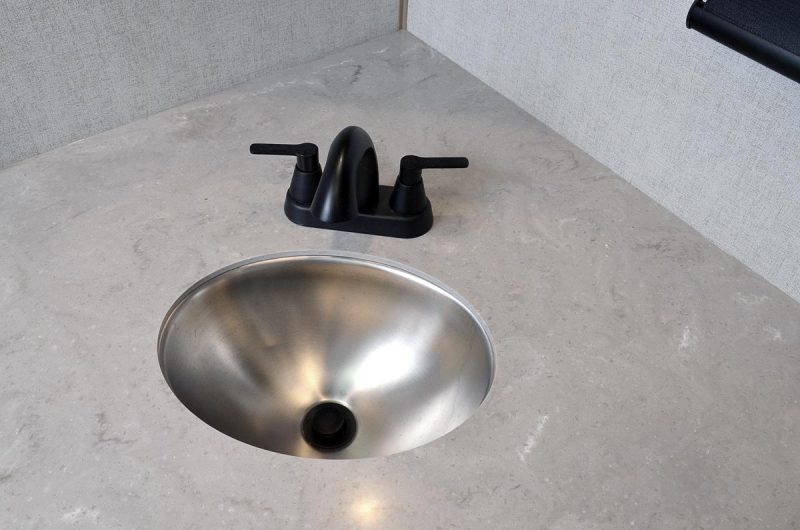

*Lighted Make-Up Mirror (Select Models), Undermount Metal Sink
