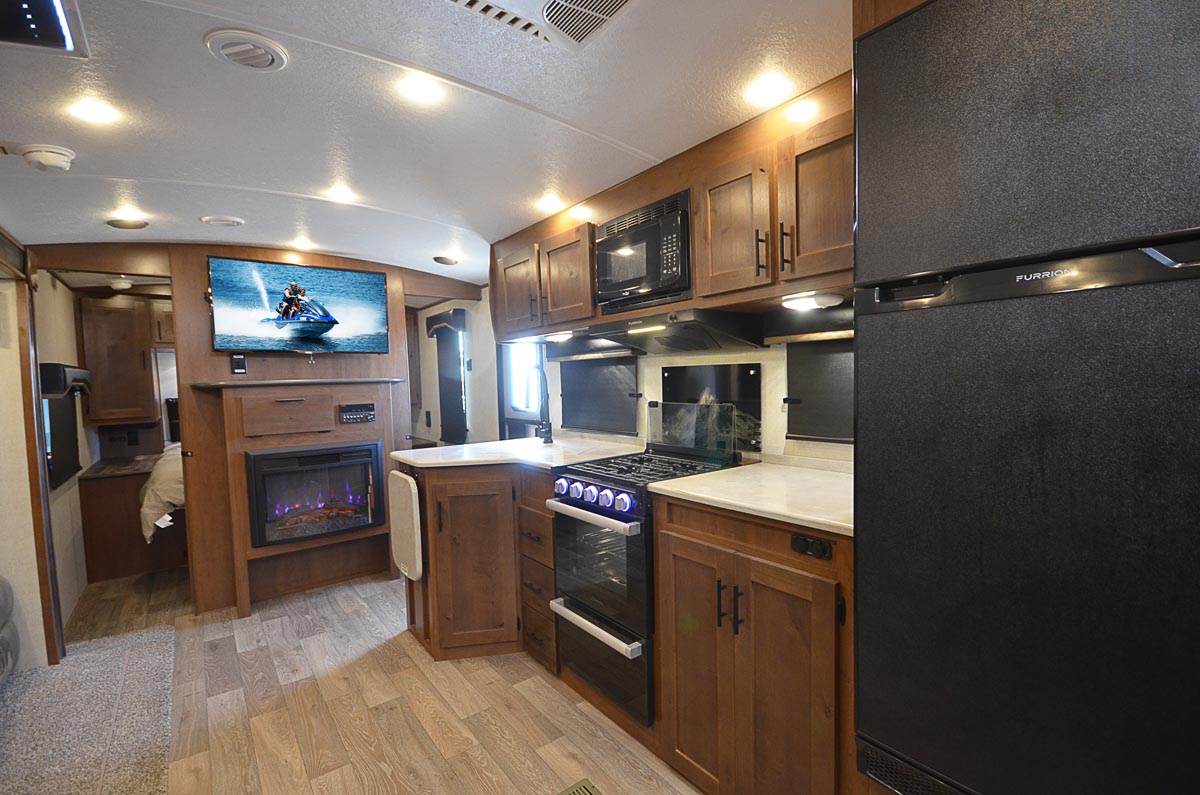

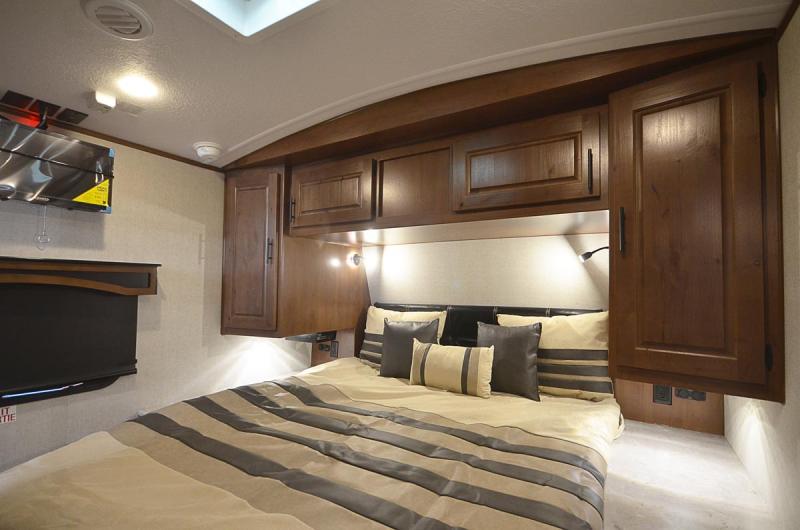

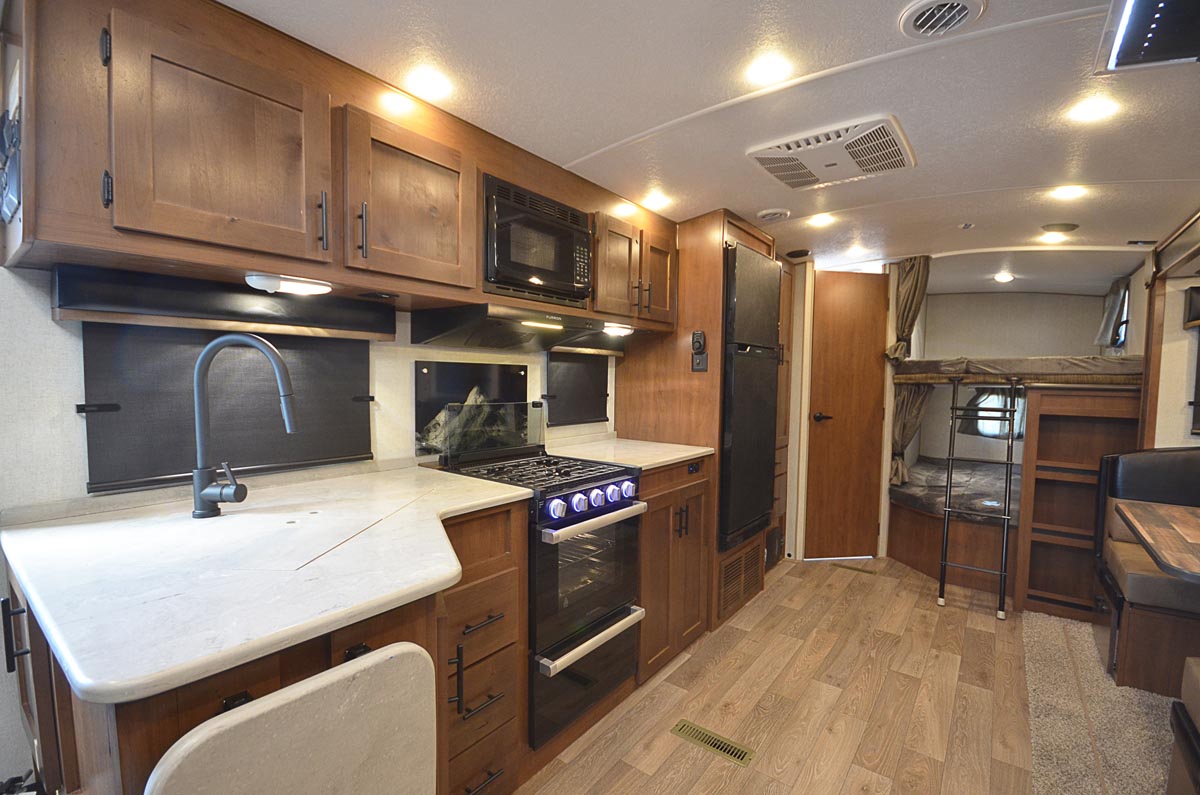

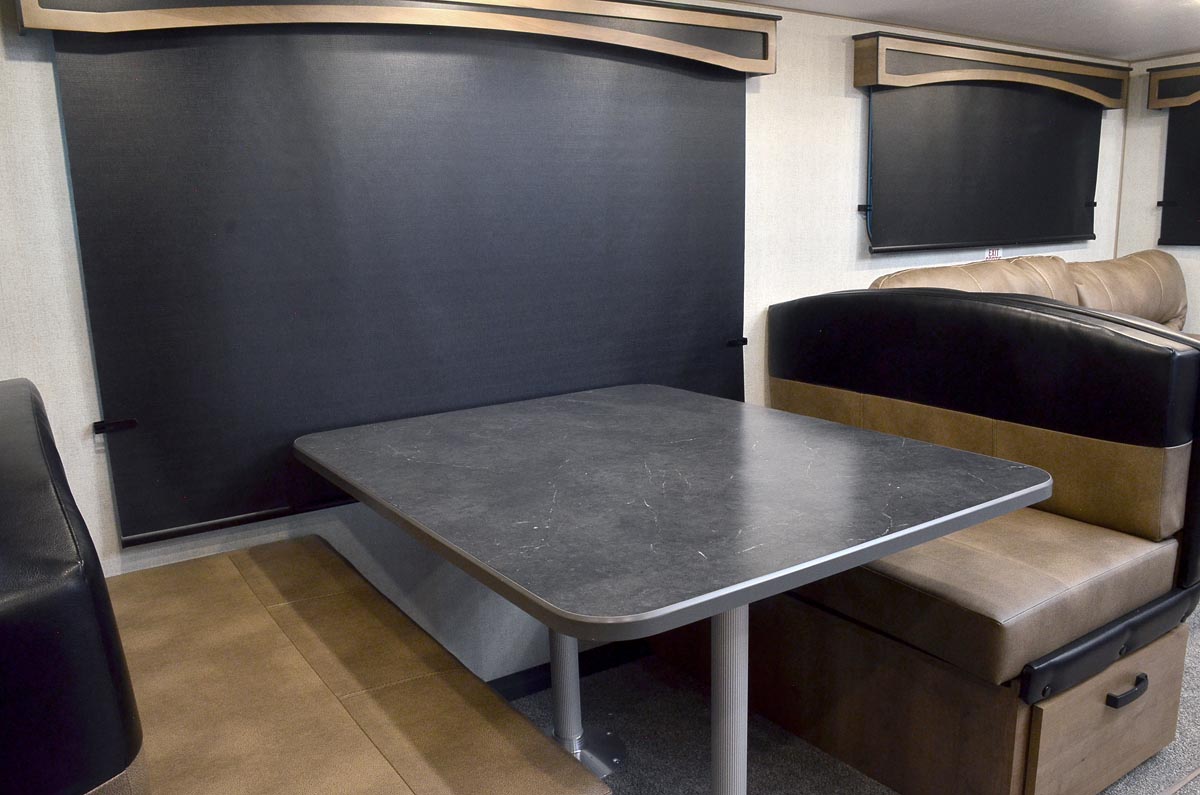

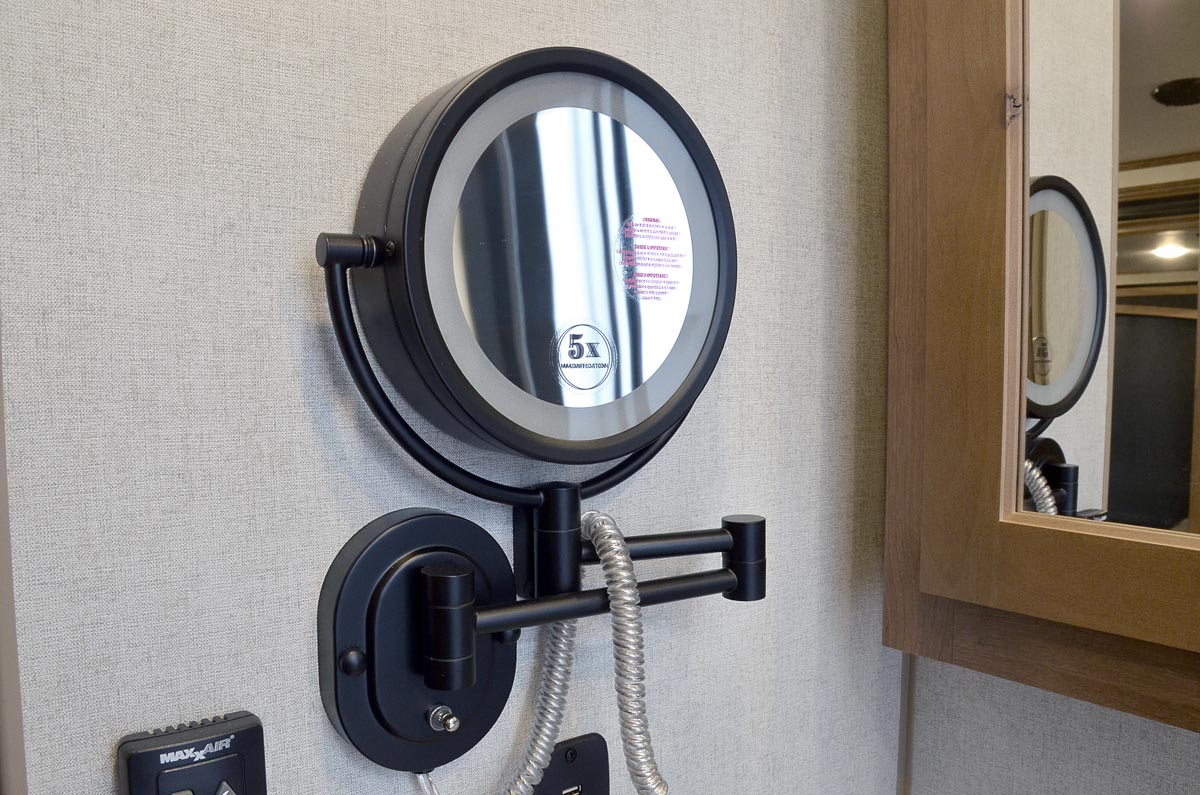

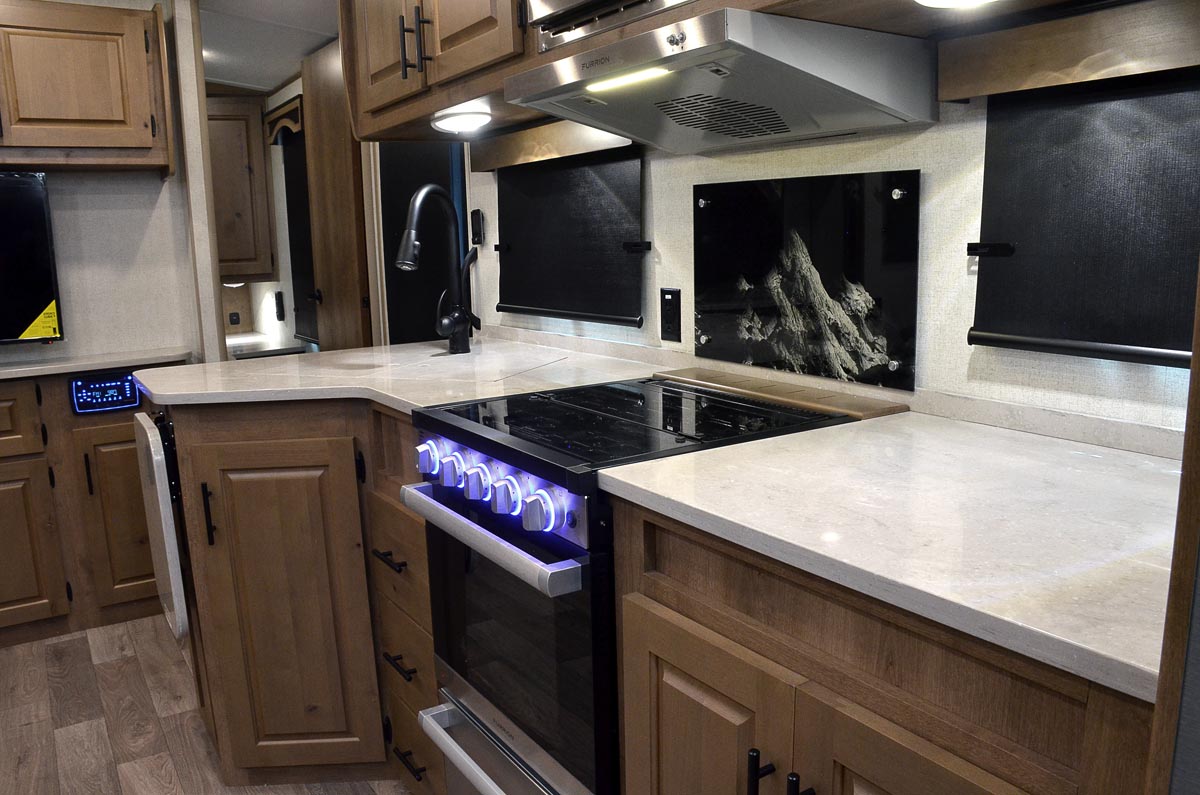

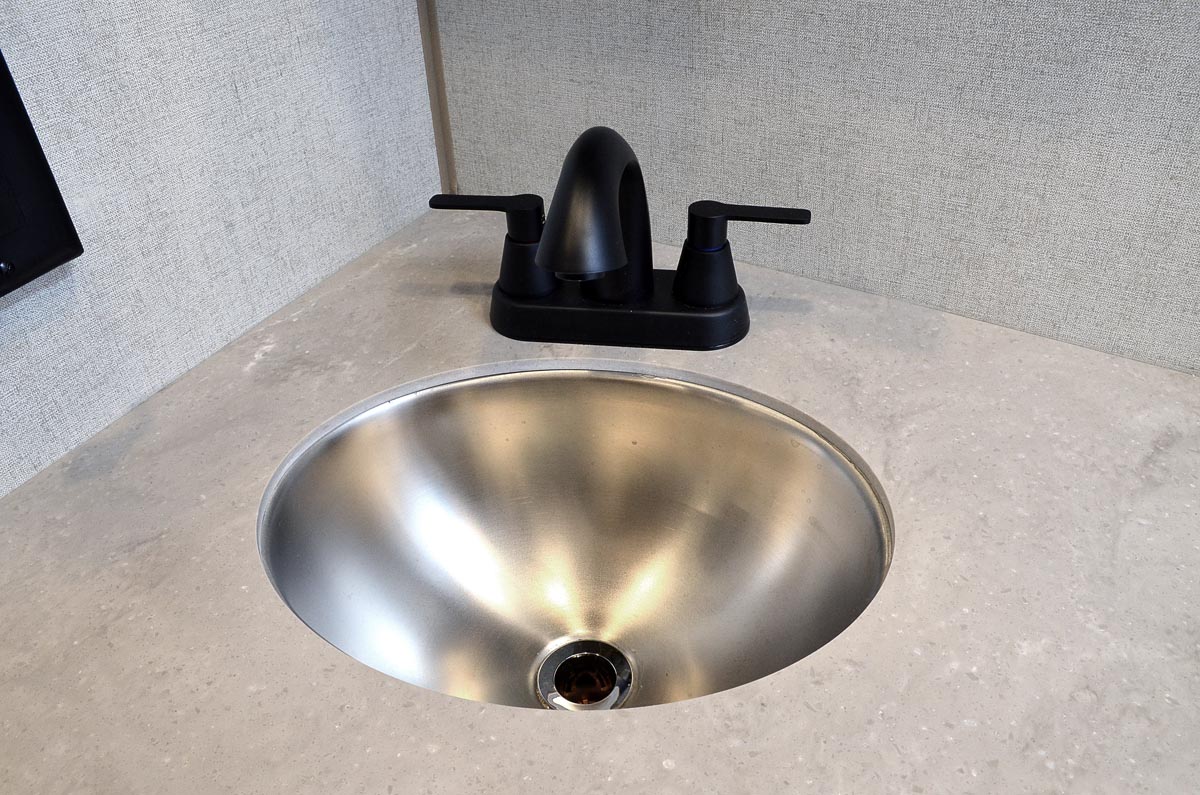

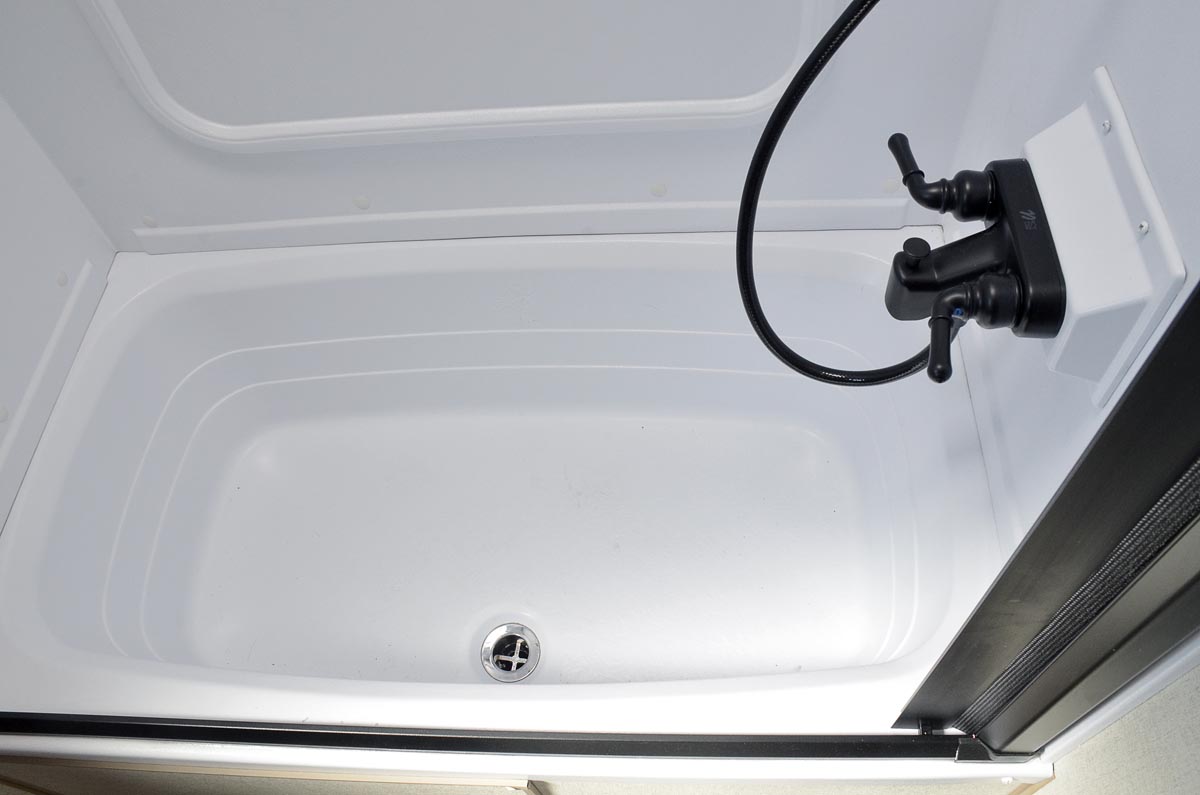

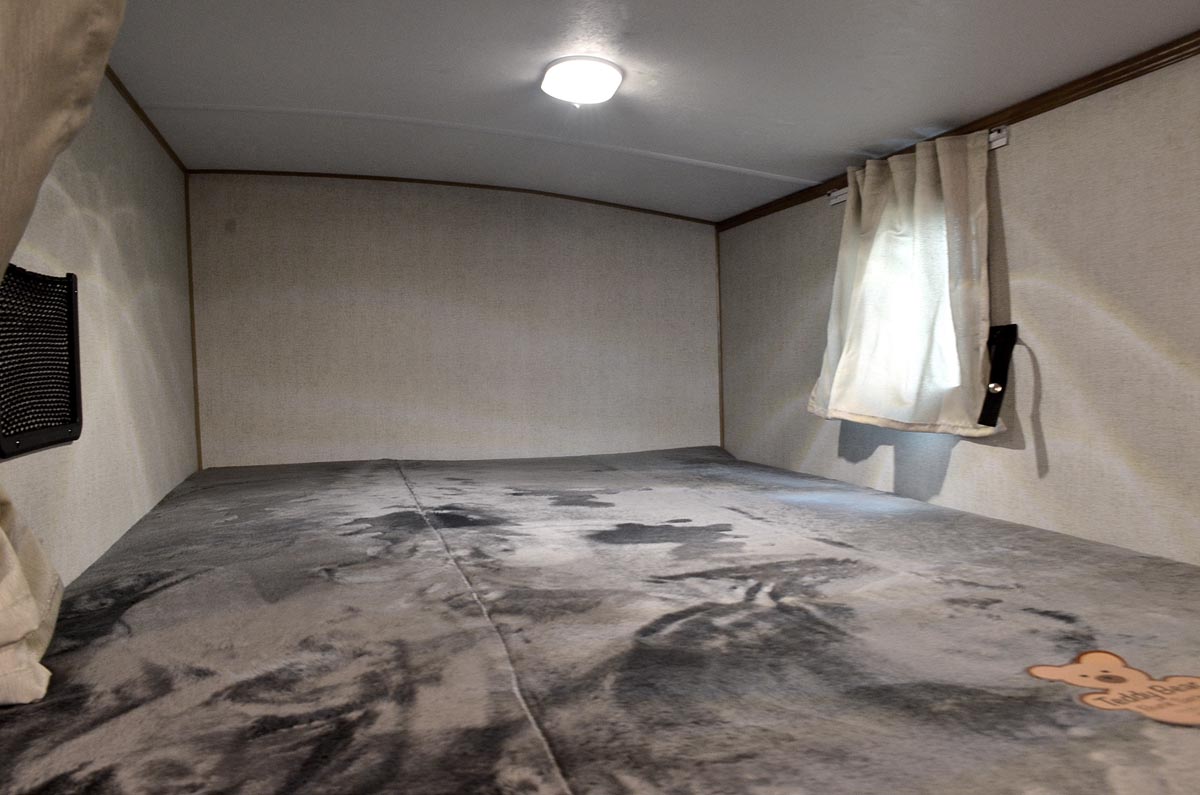

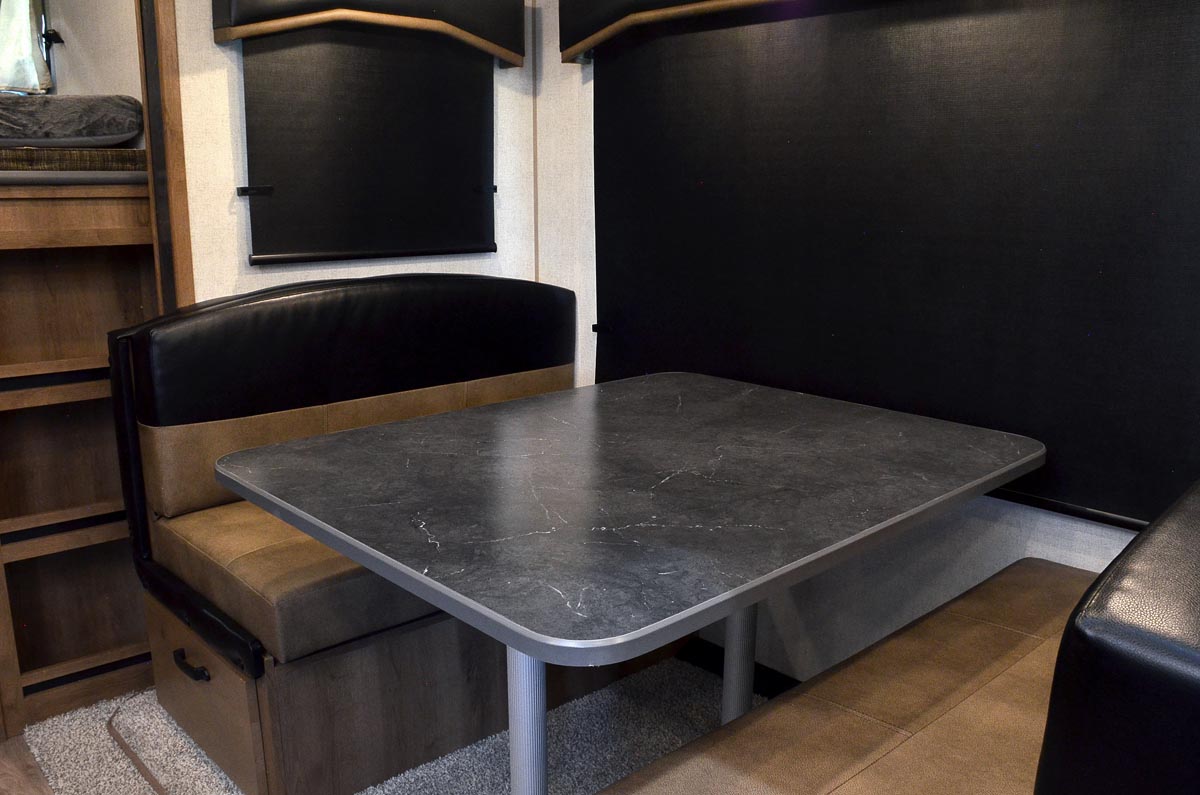

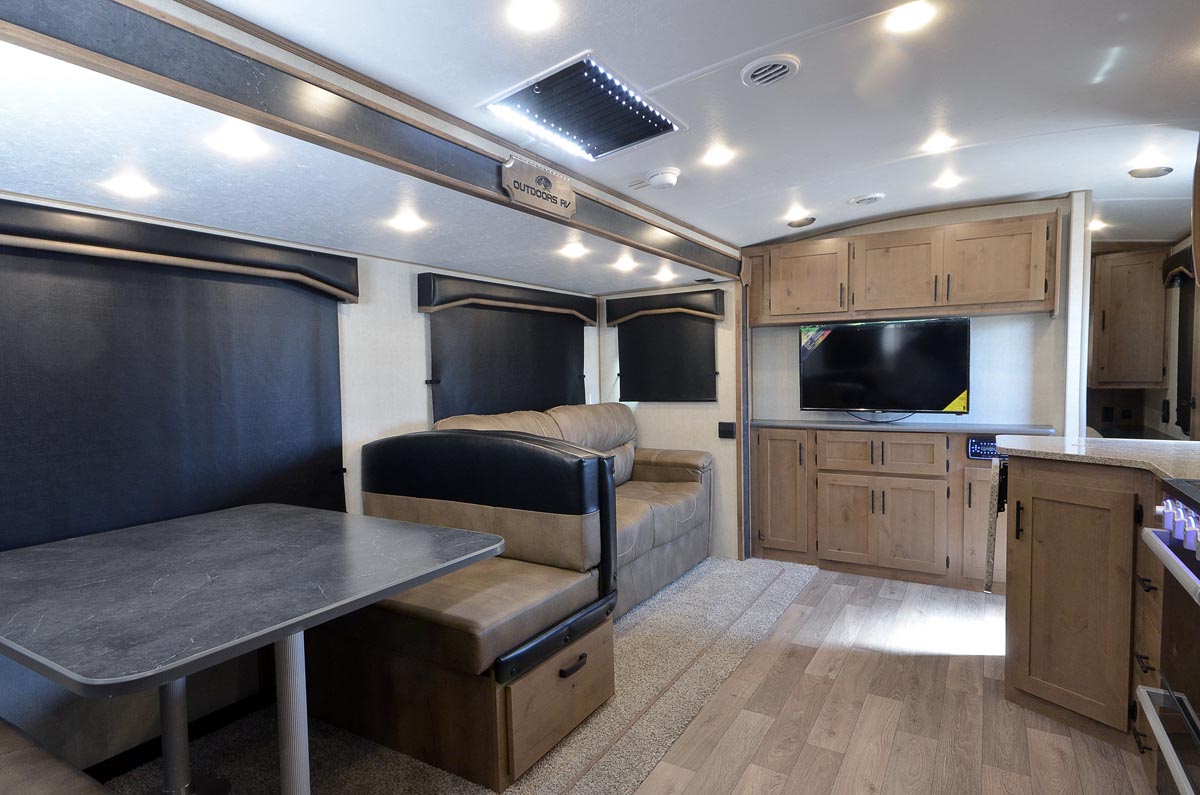

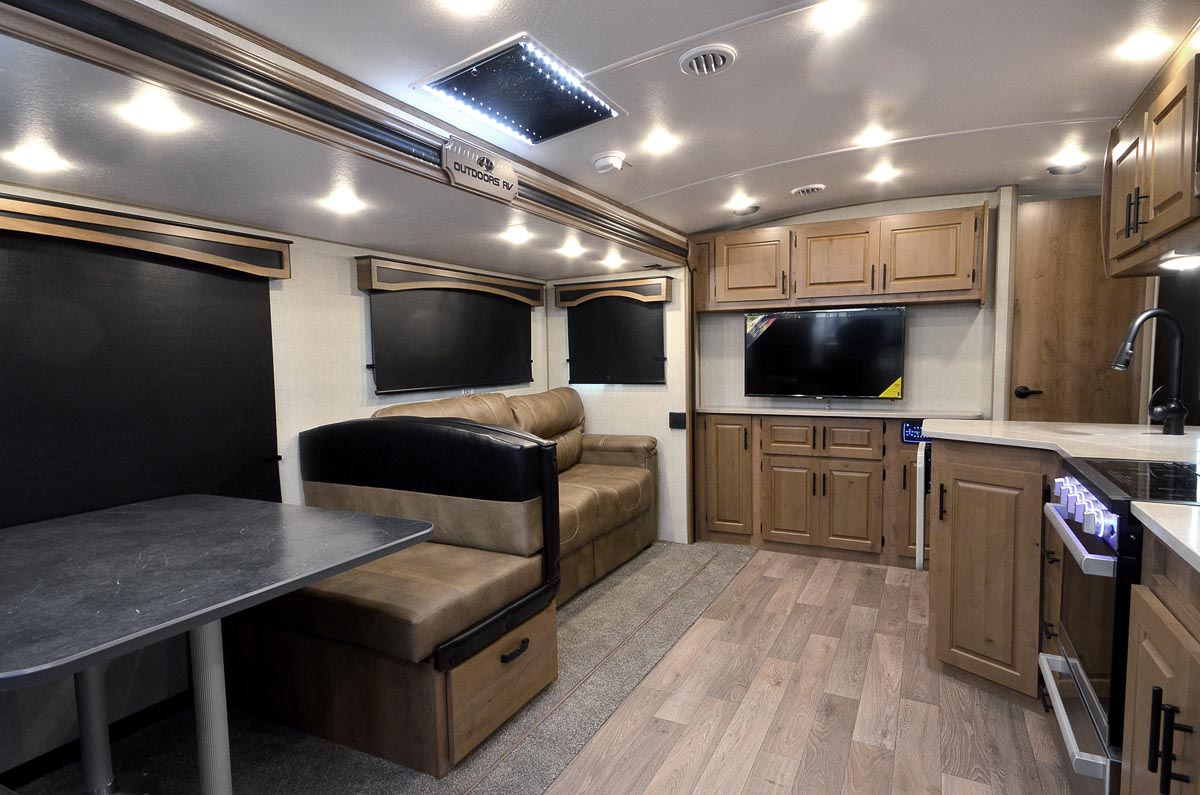

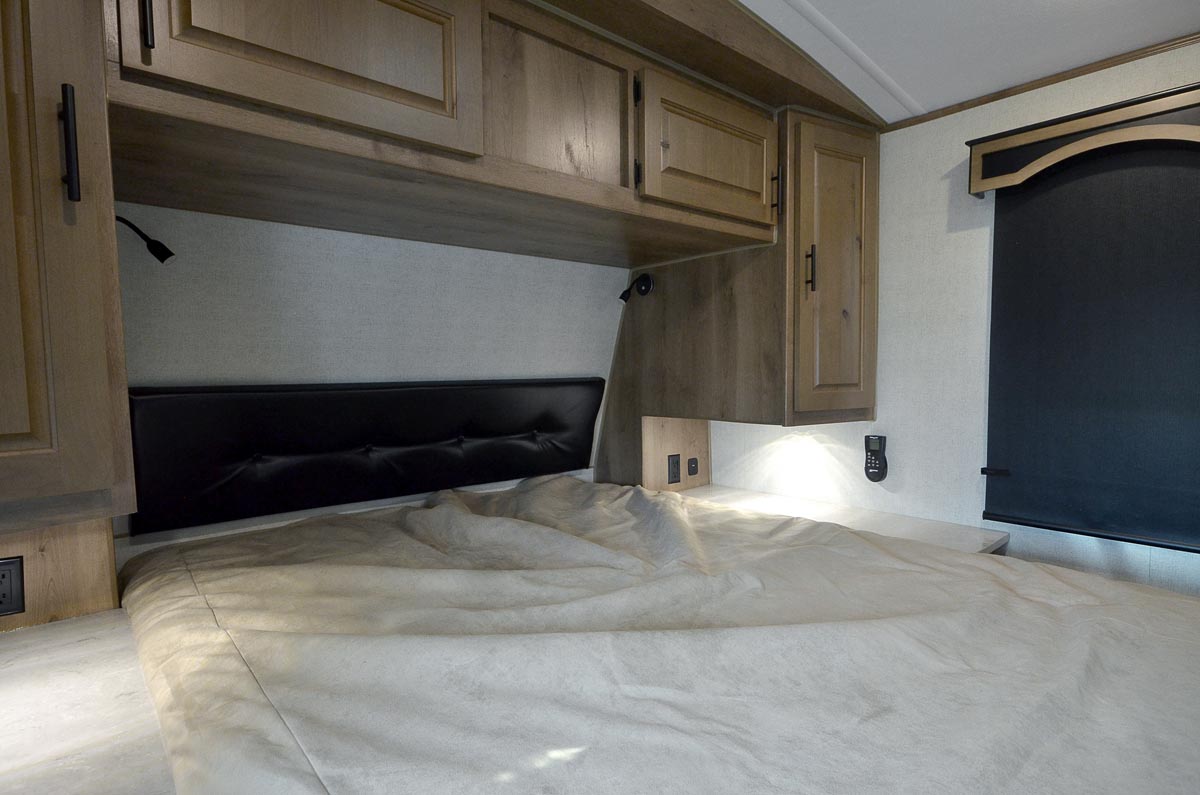

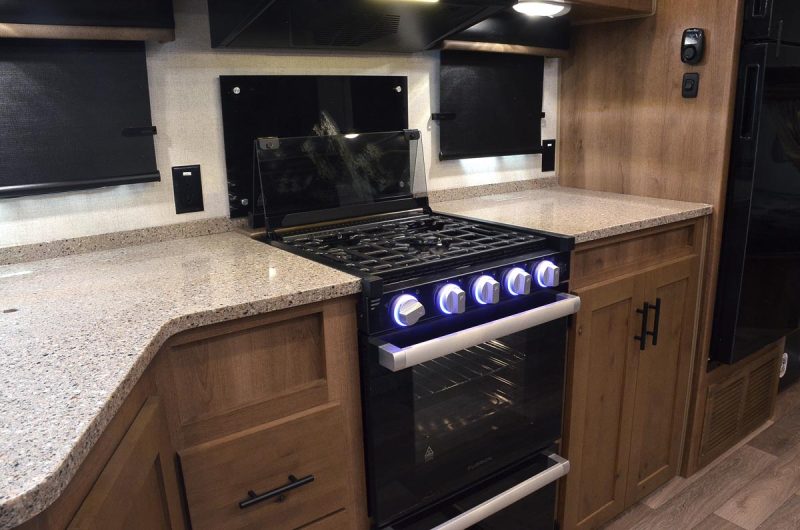

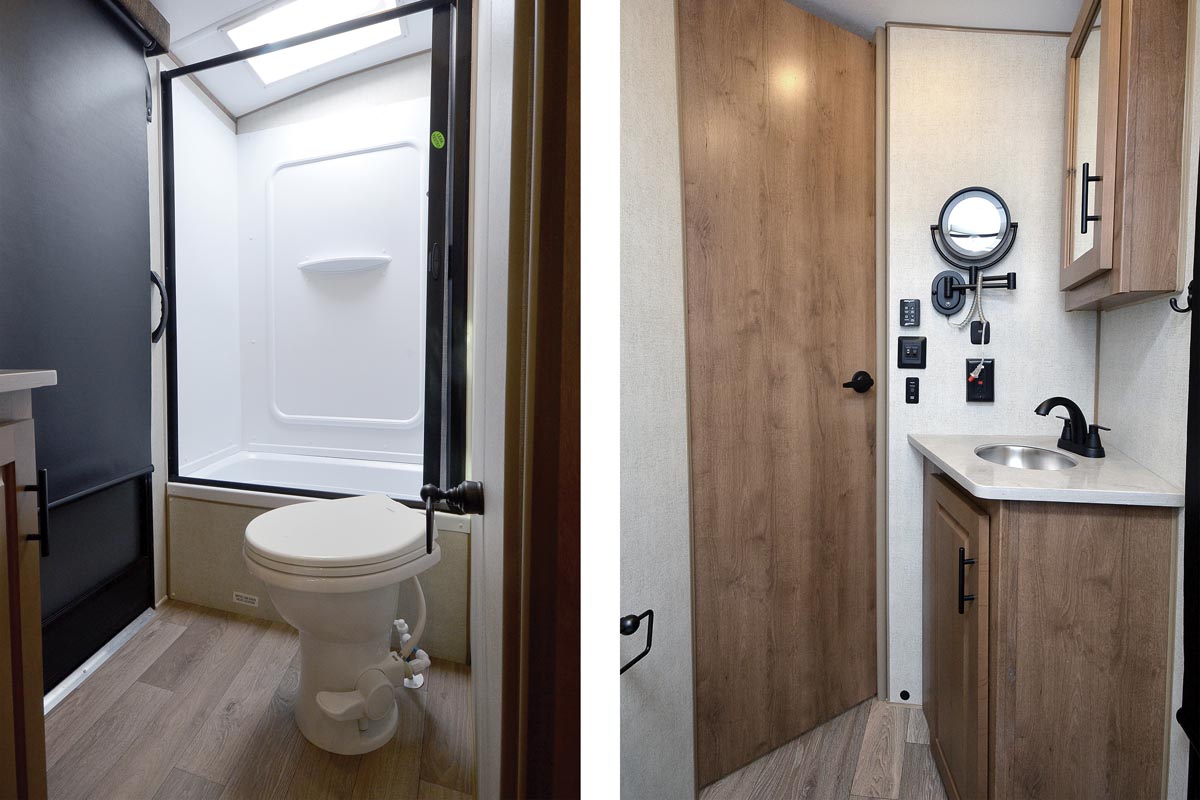

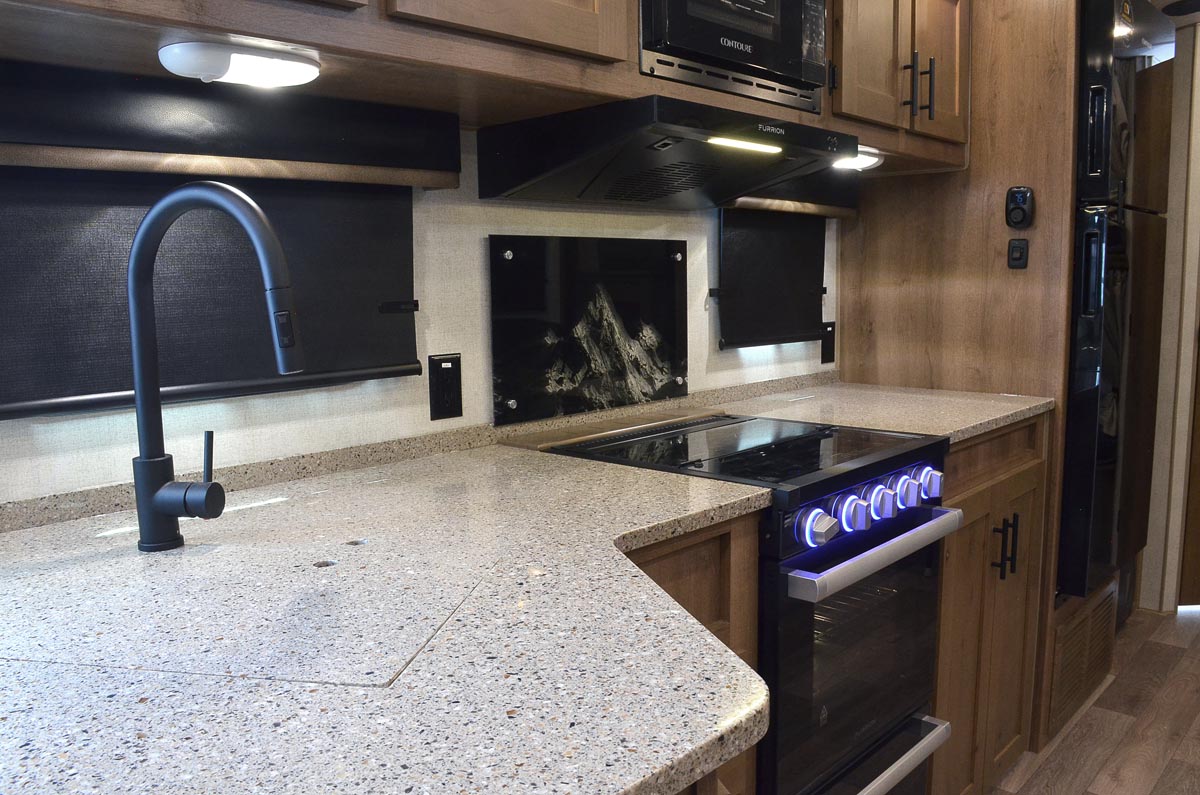

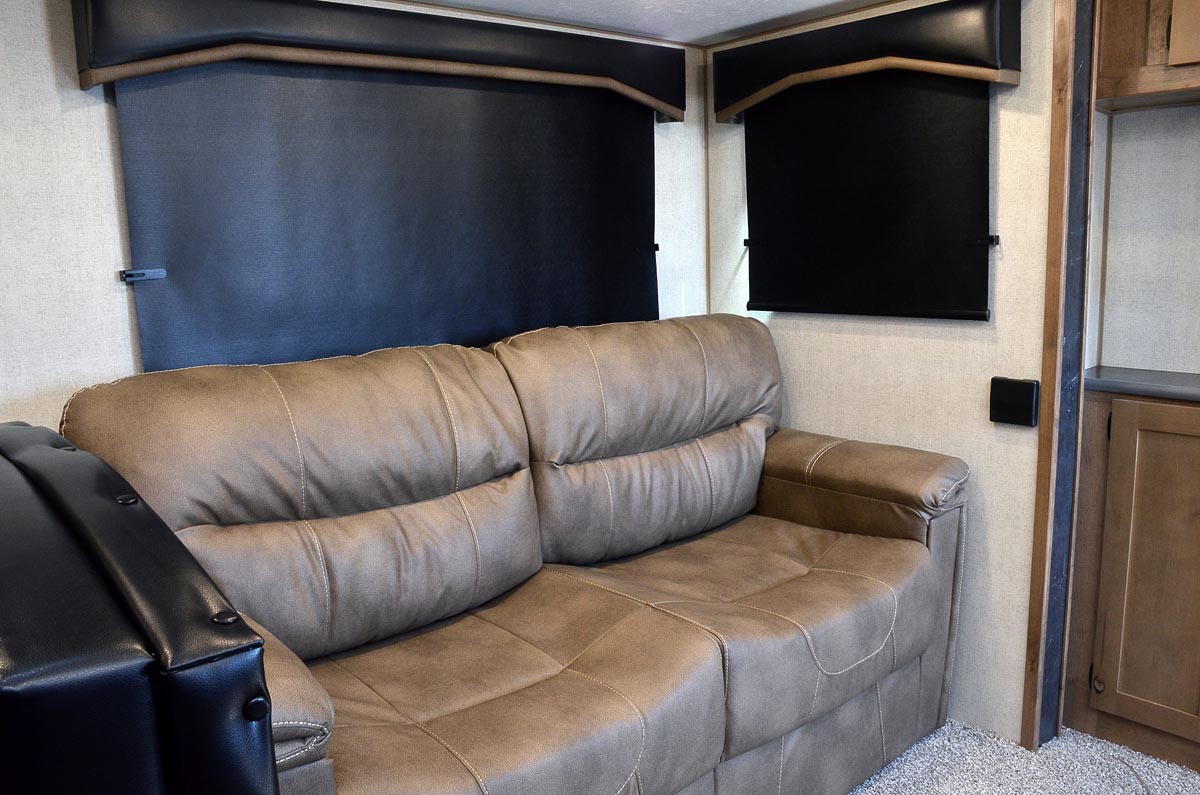

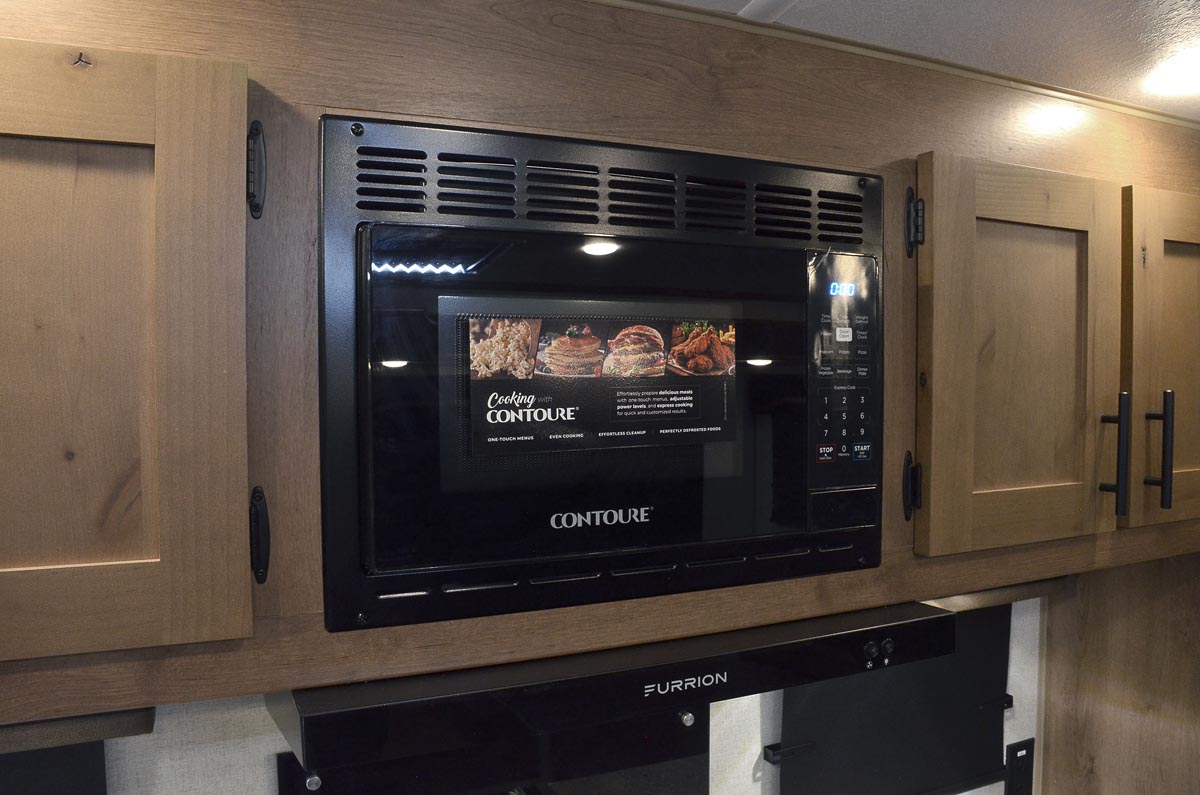

28DBS GALLERY
*Photos shown may feature optional equipment, standard features subject to change without notice
Specifications
| Full Feature Dry Weight - Lbs. | 8030 |
| Exterior Length (approx. hitch to back of bumper) | 33'2" |
| Fresh Water Capacity (approx. gal) | 100 |
| Water Heater Capacity (approx. gal) | 10 |
| Good Year Tire Size | ST235/80/16E |
| Load Range | E |
| Heavy Duty 5 Lug Axles (lbs) | 5200(2) |
| Climate Designed Furnace | 35K |
| Exterior Height | 11'7" w/AC |
| Interior Height | 6'11" |
| LPG Capacity (approx. pounds) | 80 |
| Grey Water Tank (approx. gallons) | 40/40 |
| Black Water Tank (approx. gallons) | 40 |
| Net Carrying Capacity | 2970 |
| Dry Hitch Weight (approx. Lbs.) | 995 |
| Maximum Trailer Weight - Lbs. | 11000 |
Standard Features
*Mountain Extreme Thermal Pane Windows
*Climate Designed – Four Seasons Camping
– Designed for Mountain States & Western Canada
*Triple Layered Four Seasons Roof Insulation
(Reflective Insulation Layer & Two Layers of R-7 Fiberglass Insulation)
*Fully Enclosed-Heated-Insulated Underbelly
*1″ Thick Thermal Insulated Luggage Doors
*Reflective Insulation Layer Roof, Slide-Out Floor, Entire Underbelly, Holding Tanks
*XL Furnace for Extreme Camping Heat System

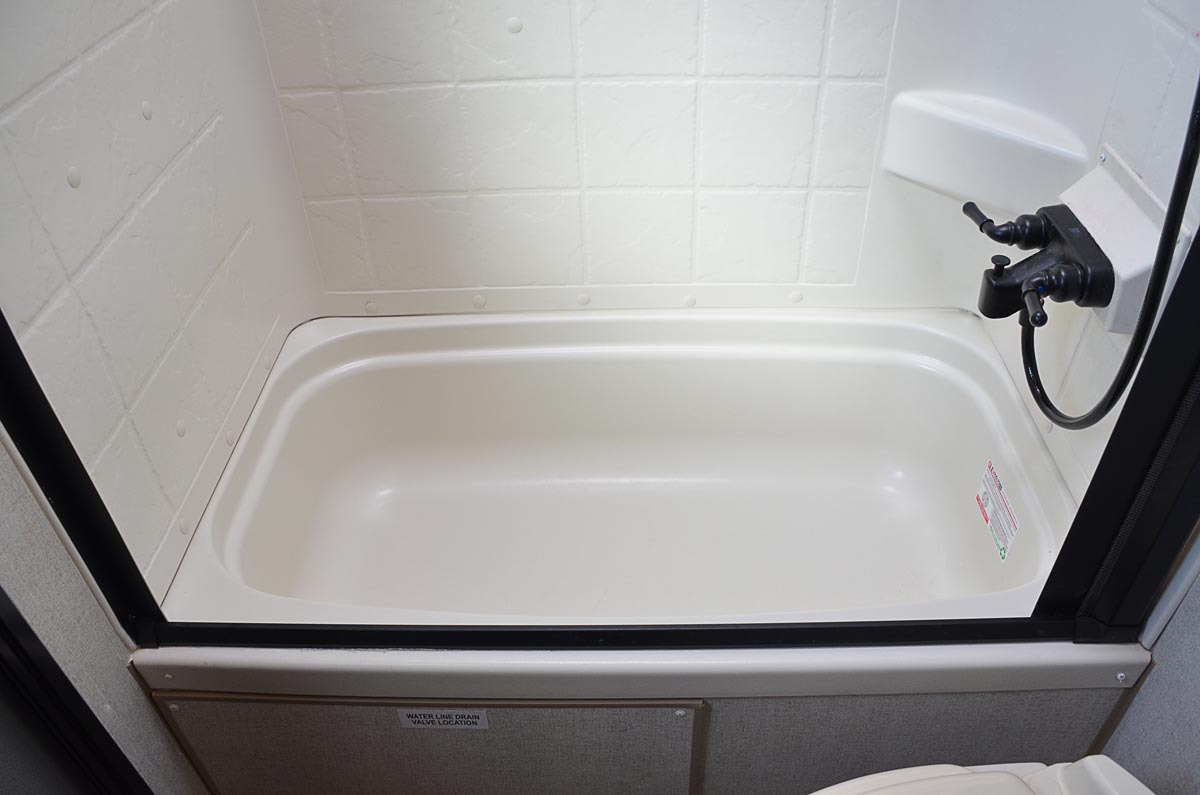

*Exterior Shower Protected by 1″ Thick Thermal Insulated Door
*Custom-Built Cambered Off-Road HD 8″ Chassis (All Models)
*Underslung Off Road Hitch
*Integrated A-Frame Chassis Construction
*Off Road X4 Suspension – MorRyde AllTrek CRE4000, HD Shackle Kit
*KYB World Class Shock Absorbers
*Heavy Duty 6 Lug 5200 LB Axles w/ Off-Road Brake System (All Models)
*16″ GoodYear Endurance 235 E Range 10 Ply Radial Tires
*Roto-Torqued “Outdoors Tough” Cabinetry (All Cabinets)
*Radius-Crowned Full Walk-On Roof
*Exterior Grade Tongue & Groove Plywood Sub-Floor
*Marine Grade Plywood Roof Decking
*Full Extension 100 lb Metal Drawer Guides

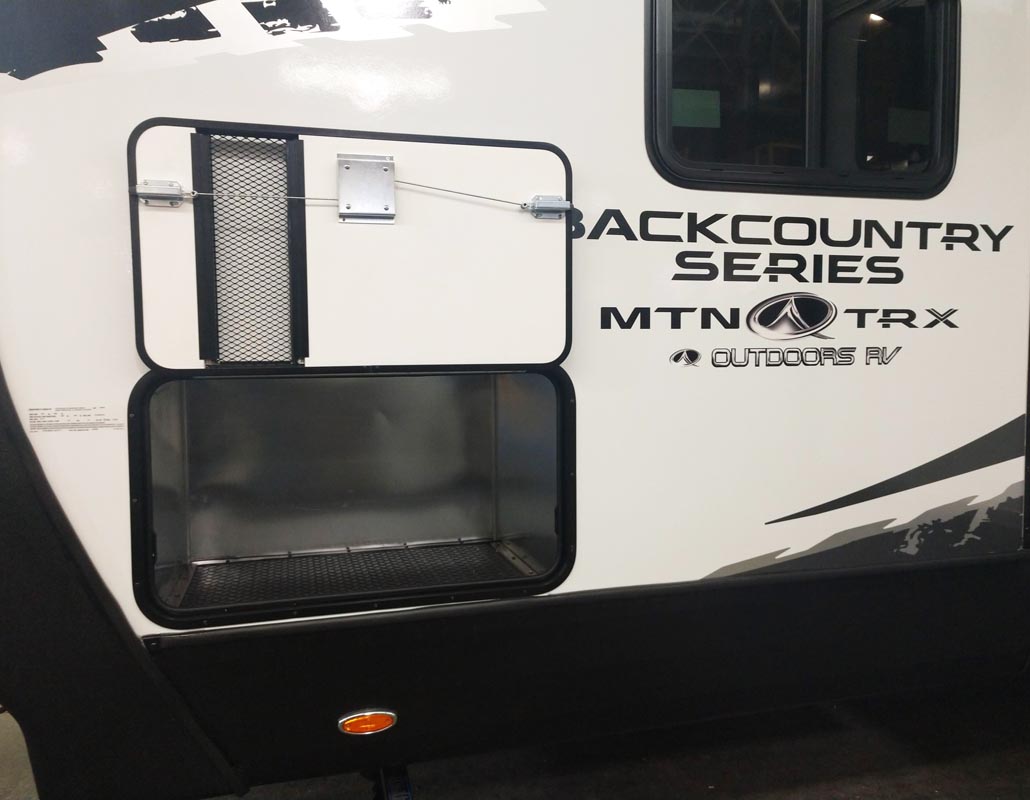

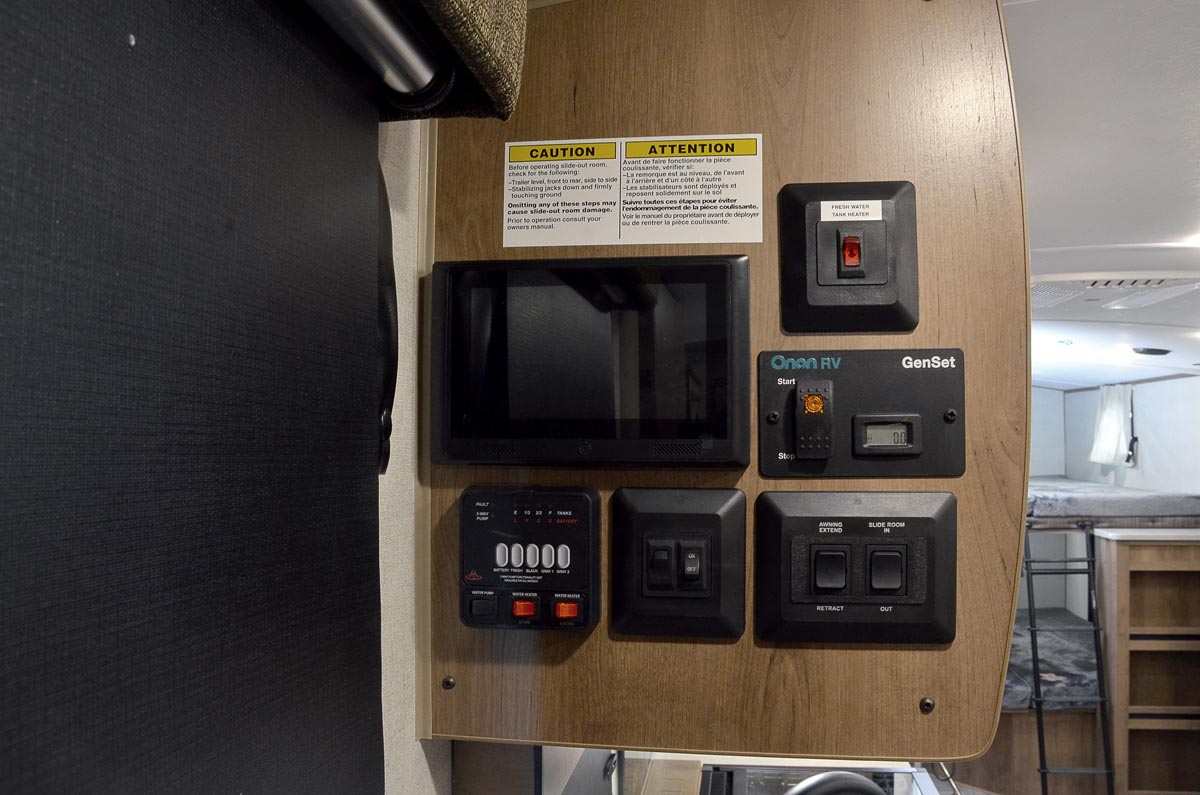

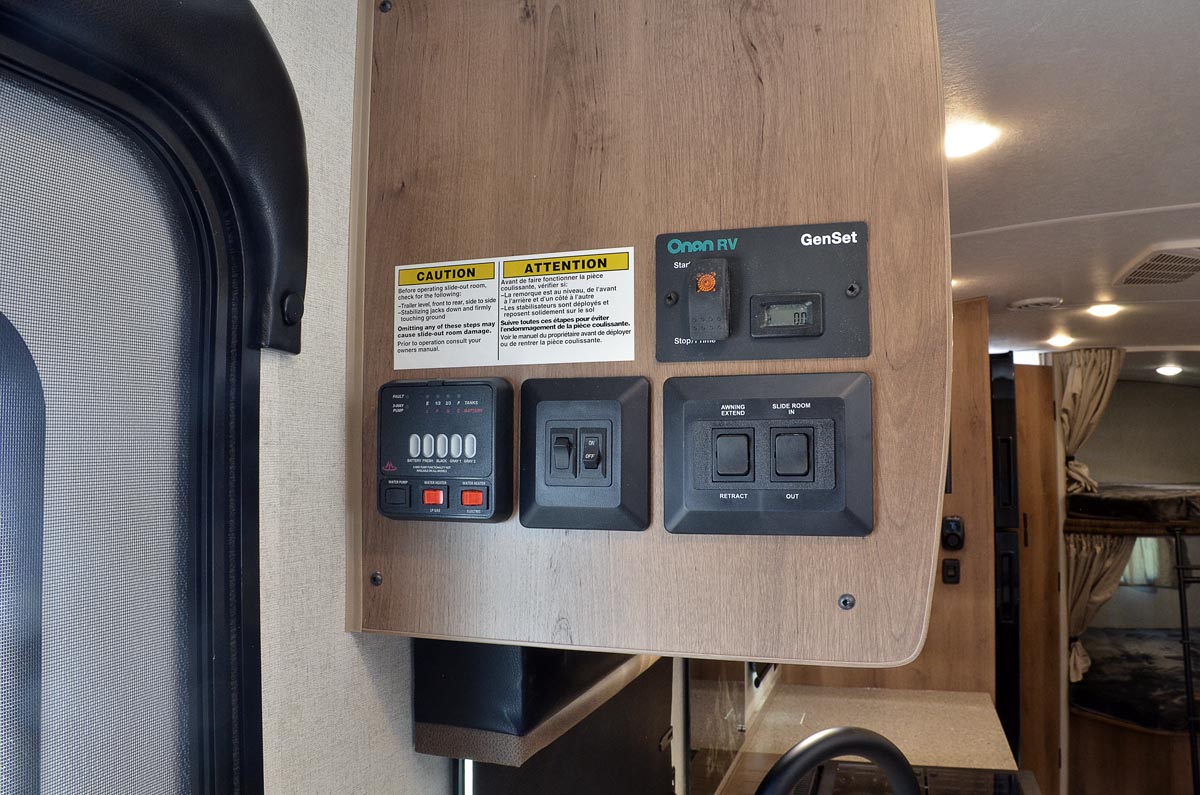

*Cummins Onan 3.6K On-Board LP Generator

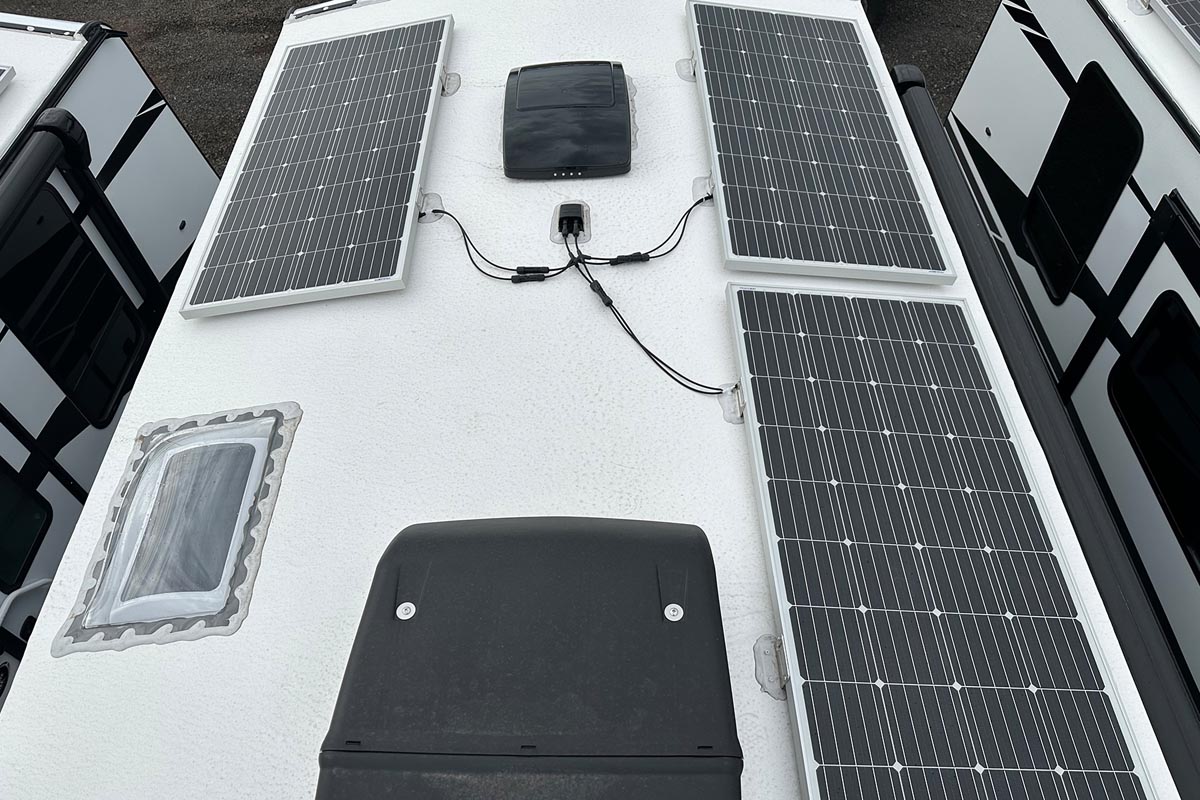

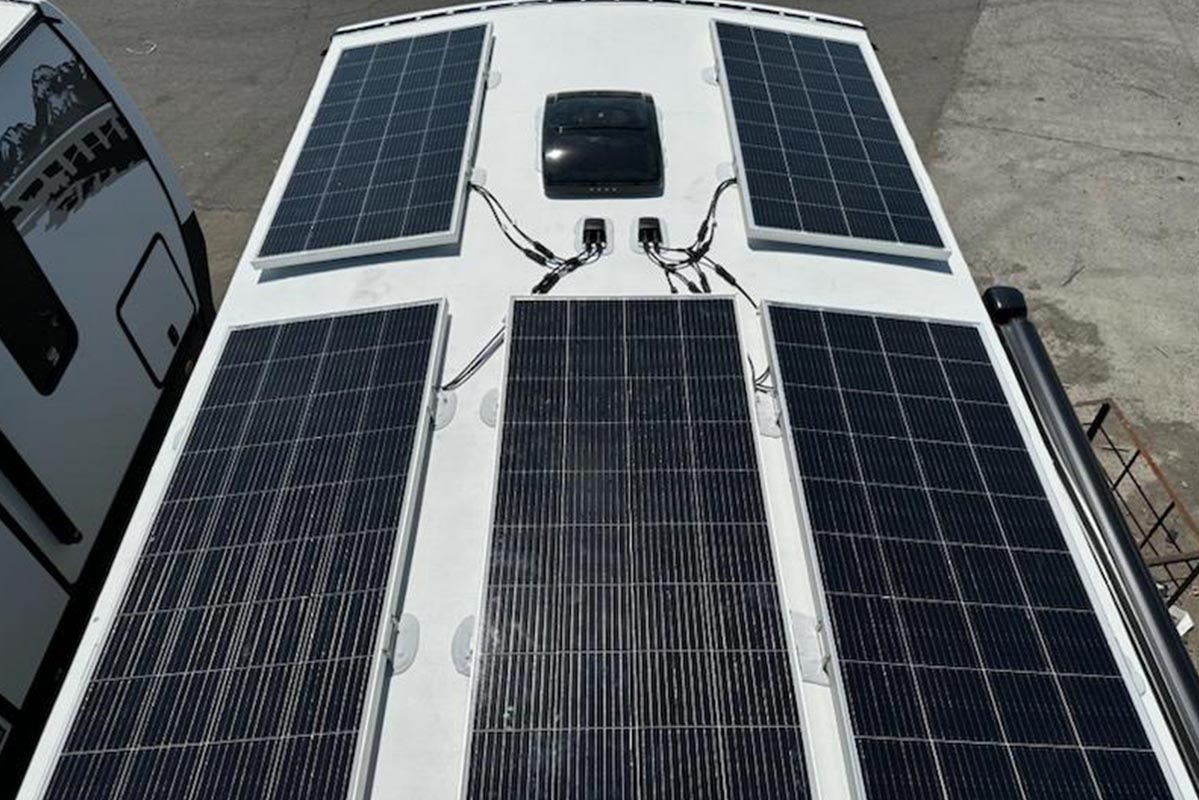

*No Boundaries Off-Grid – Solar Package / Controller
*100 Gallons Fresh Water Capacity (All Models)
*80 Lbs of Propane Capacity (All Models)
*50 Gallons Grey Water Capacity (21RWS, 23BCS, 25DVS)
*80 Gallons Grey Water Capacity (24KRS, 28DBS)
*Progressive Dynamics (4) Stage Converter w/ Built In Charge Wizard – Lithium Compatible
*Off Grid Battery Rack (Capacity: 4 Batteries)
*No Boundaries Off-Grid Solar Ready Roof Port for up to 510 watts
*Energy Saving LED Interior & Exterior Lights
*MorRyde Sliding Cargo Tray in Front Compartment
*Sportsmen’s Rack (Axe, Shovel, Fishing Poles, etc)
*Mountain Storage System (2″ Receiver Hitch & Toy-Lok)

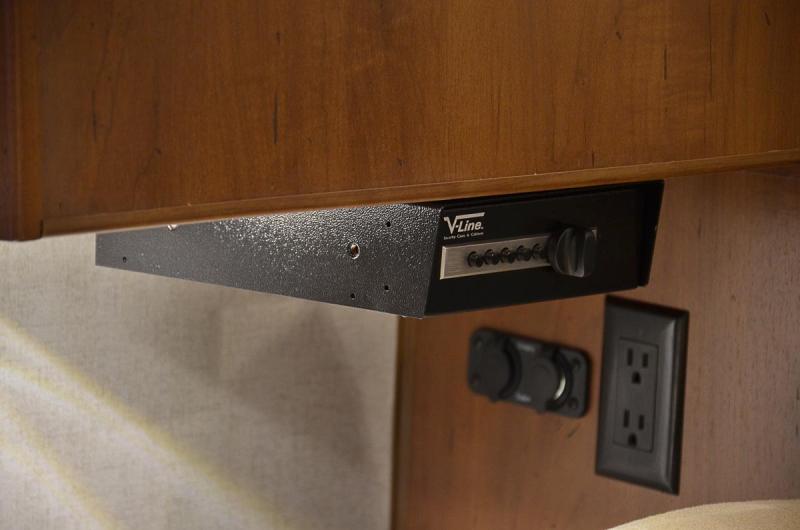

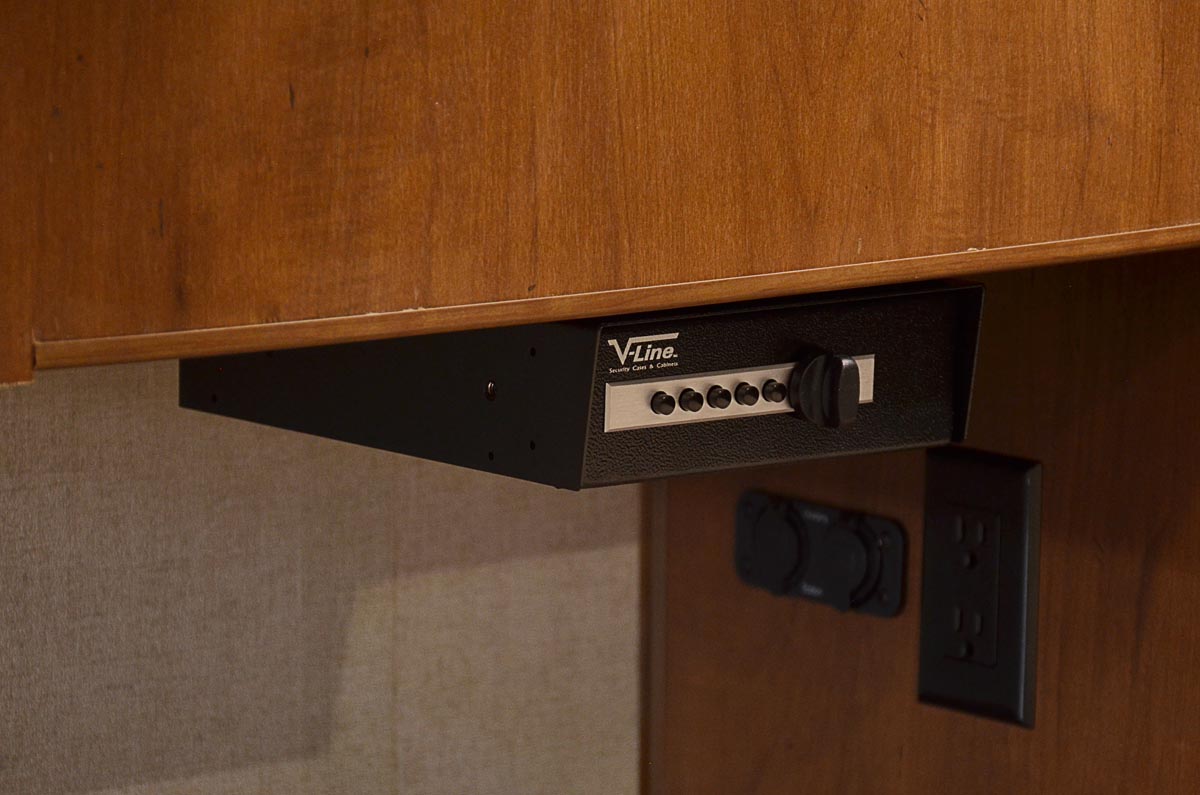

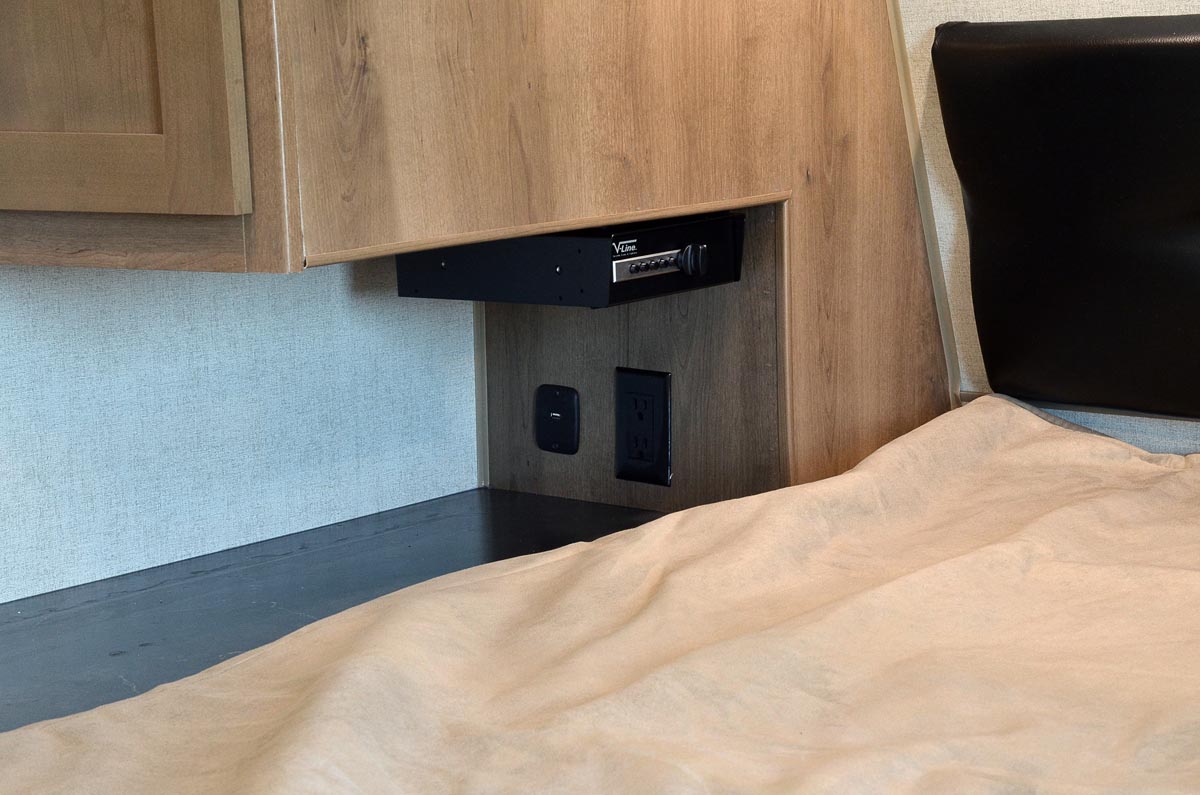

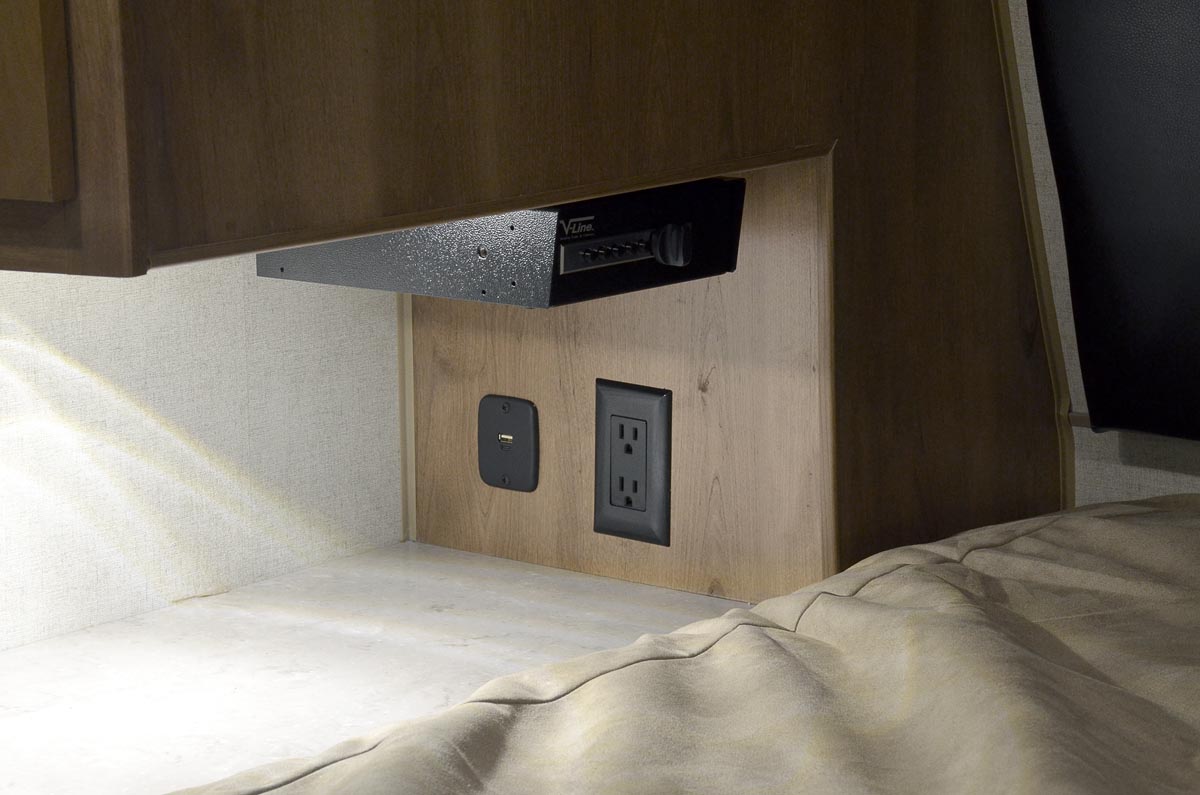

*Quick Access Home Defense Bed Safe
*High Pressure Exterior Spray Washer
3D Tour

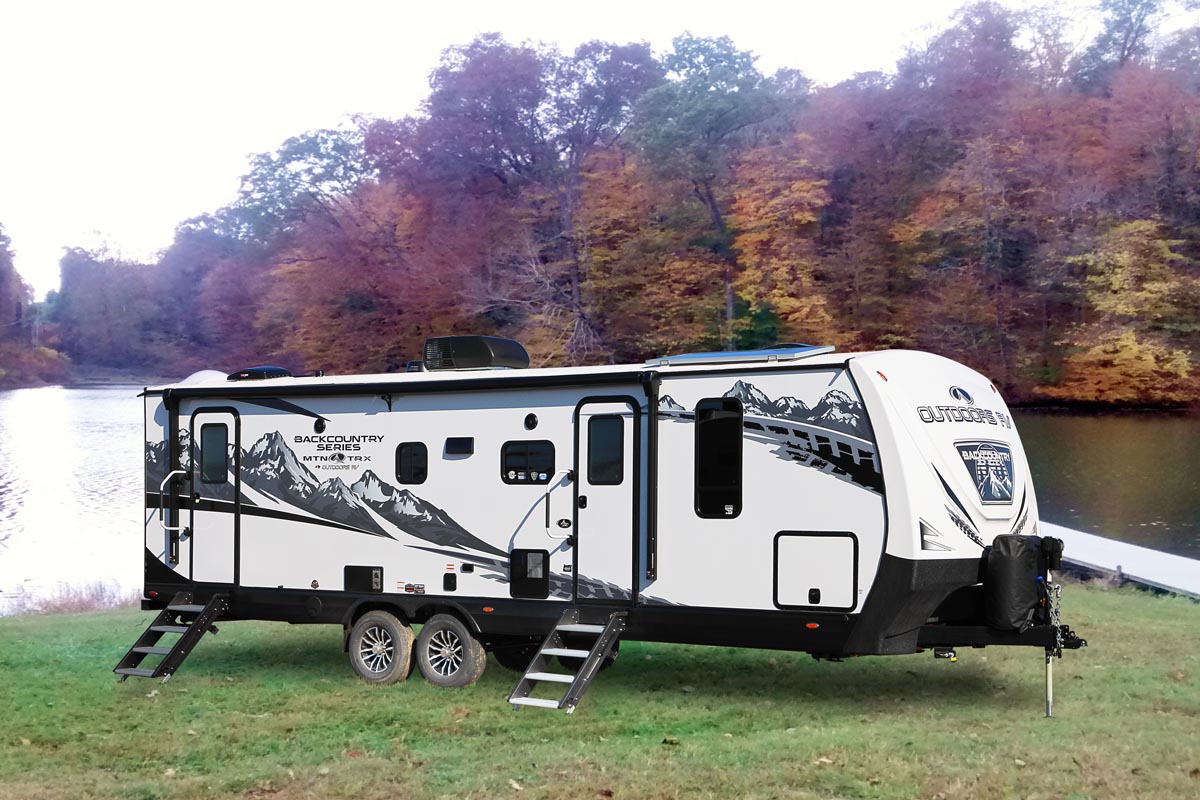

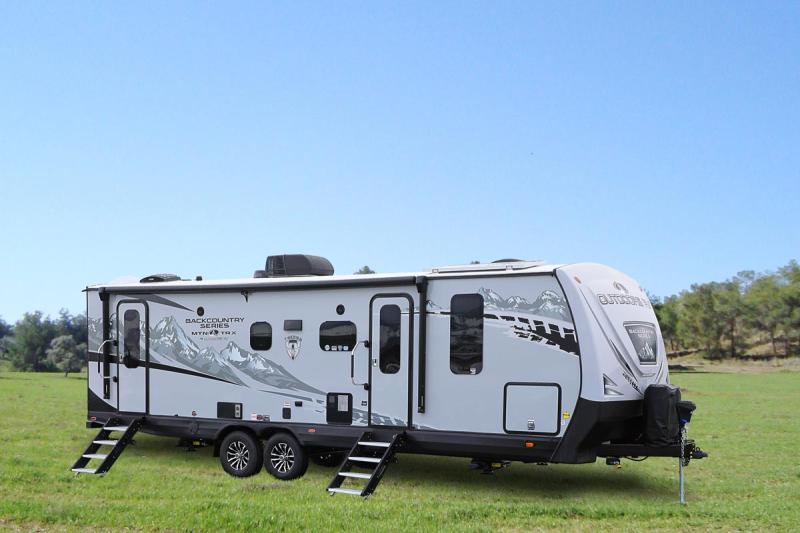

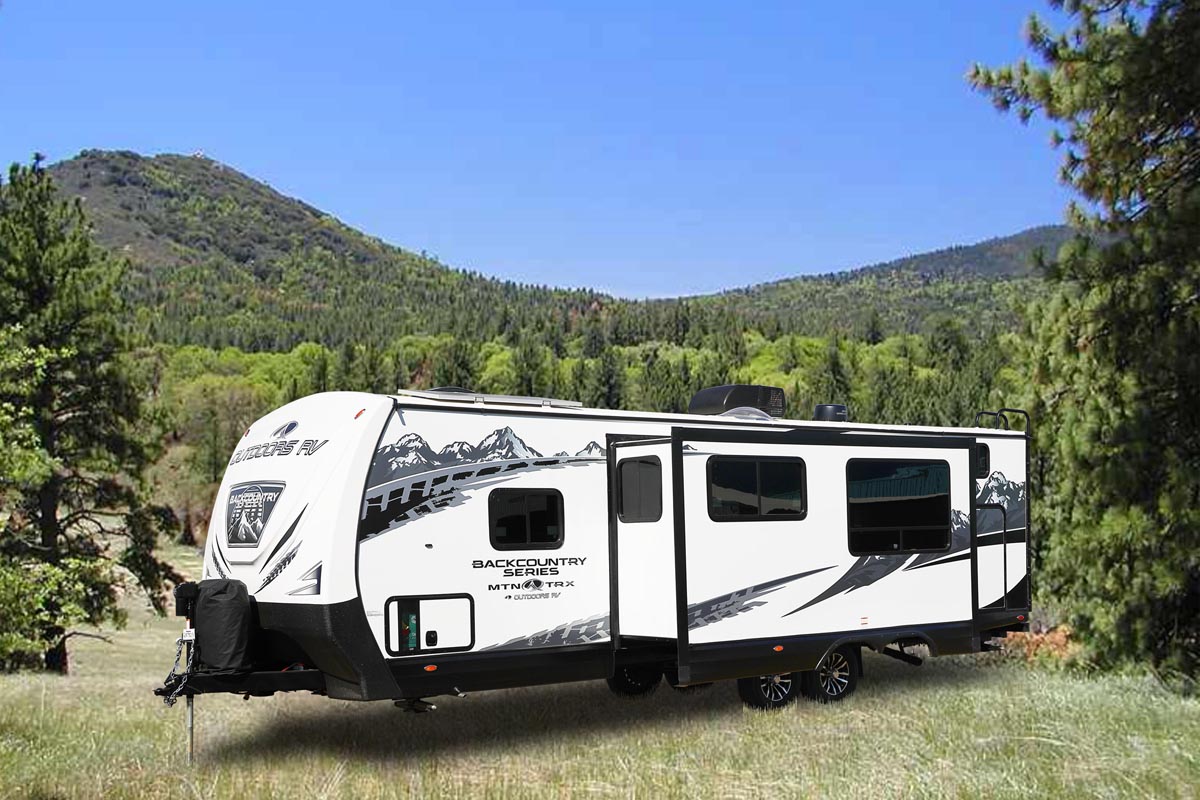

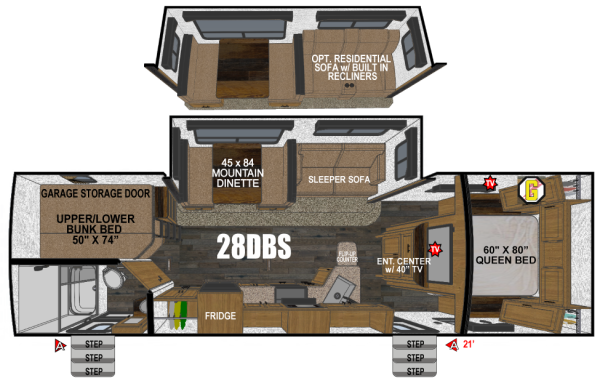

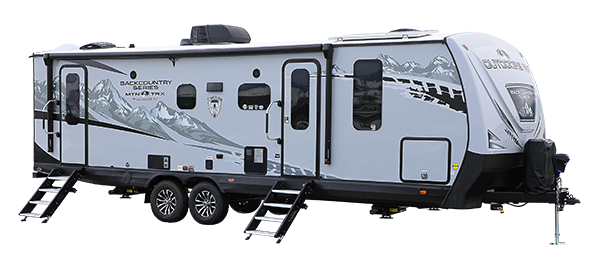

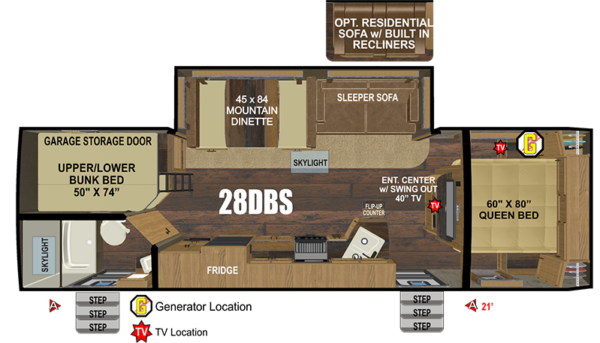

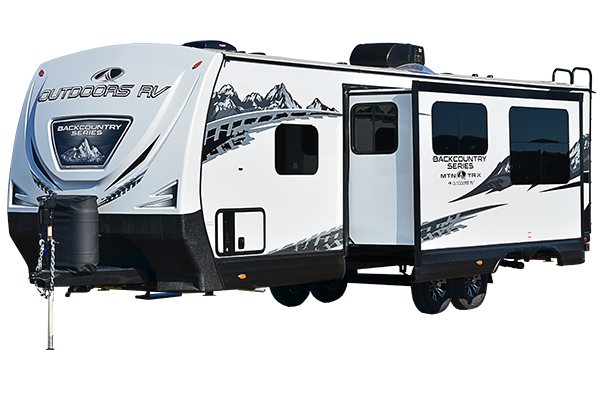

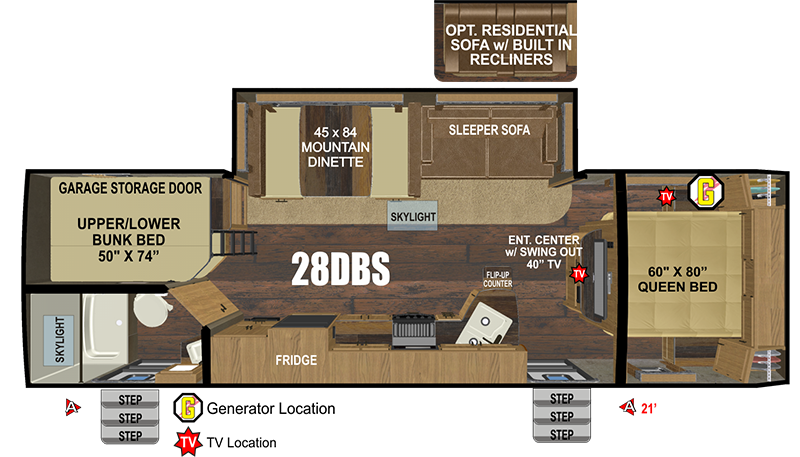

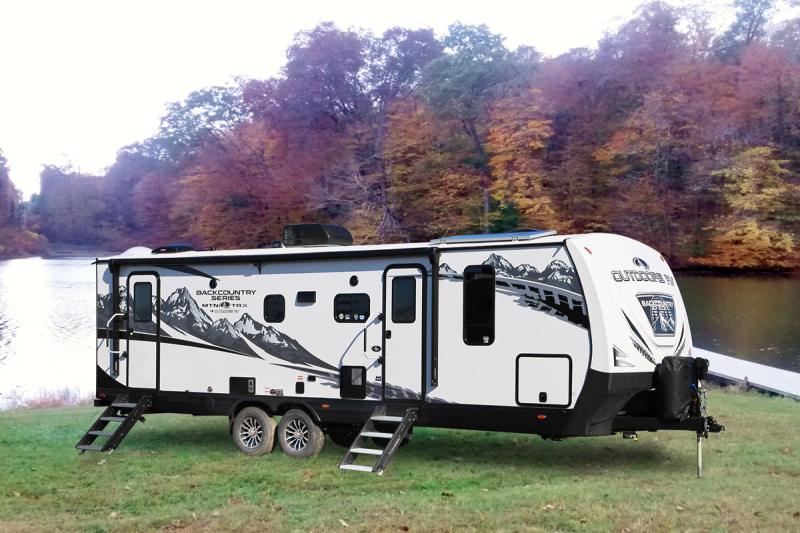

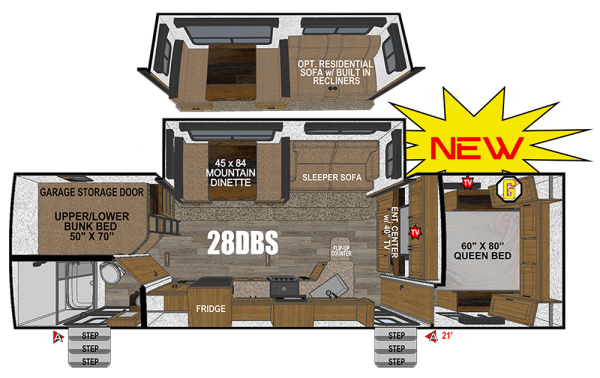

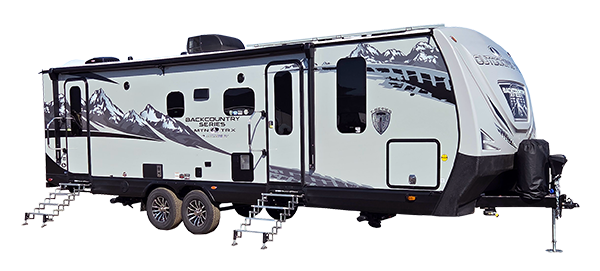

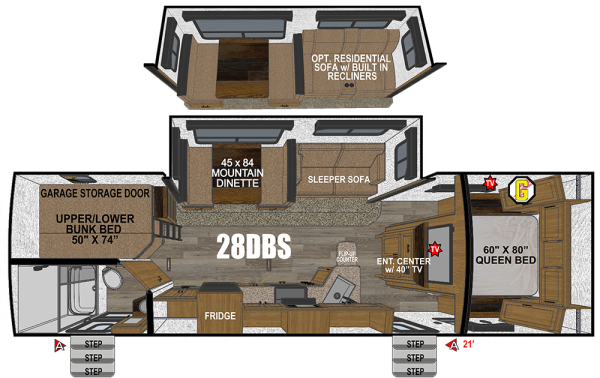

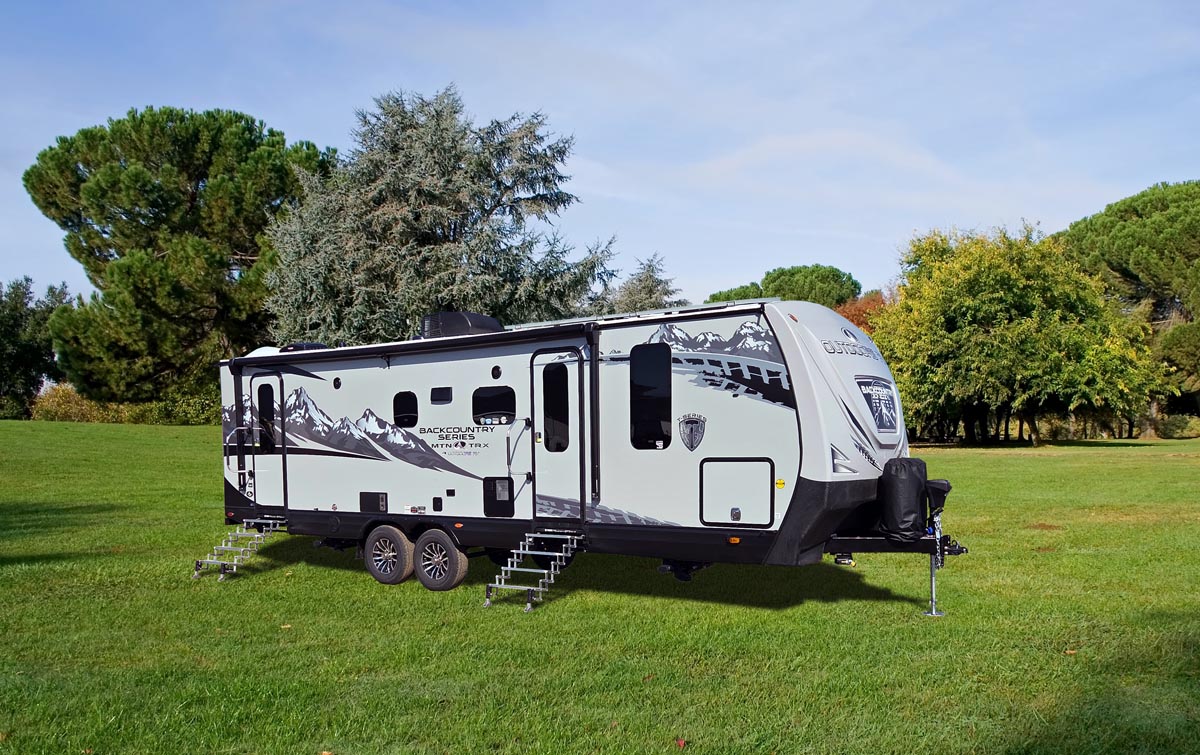

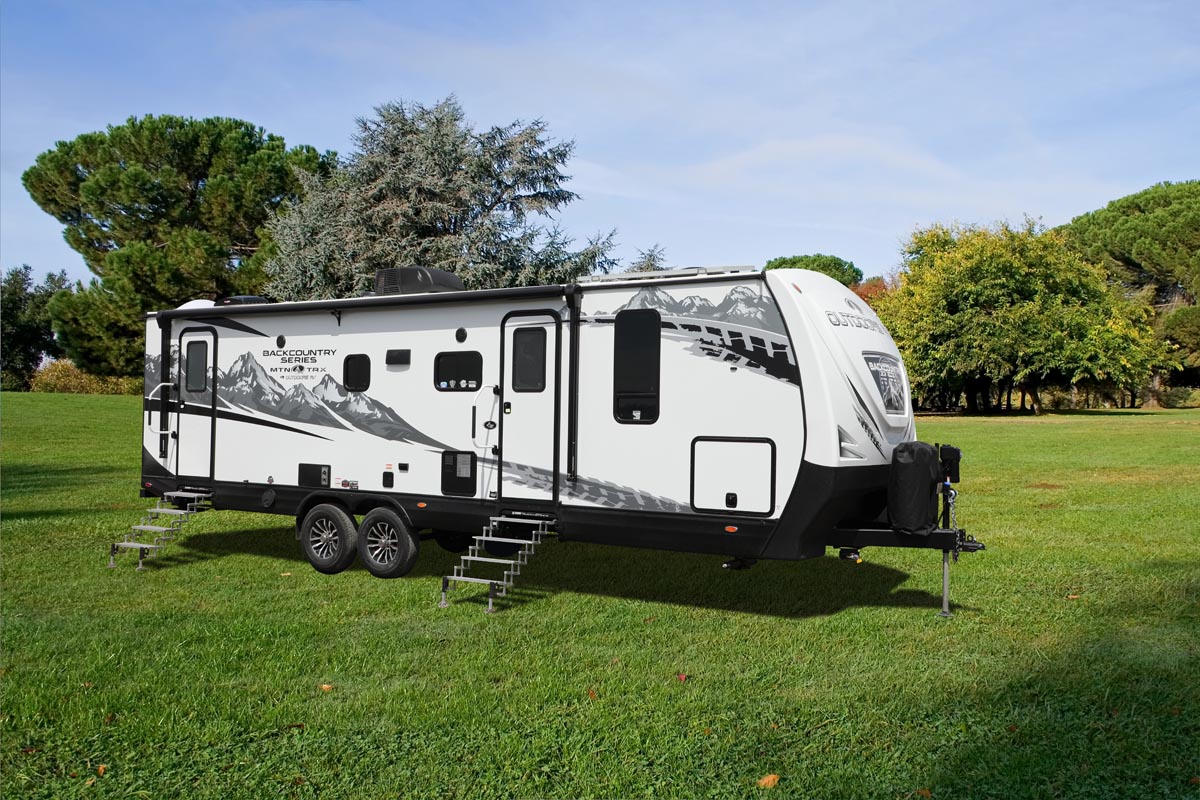

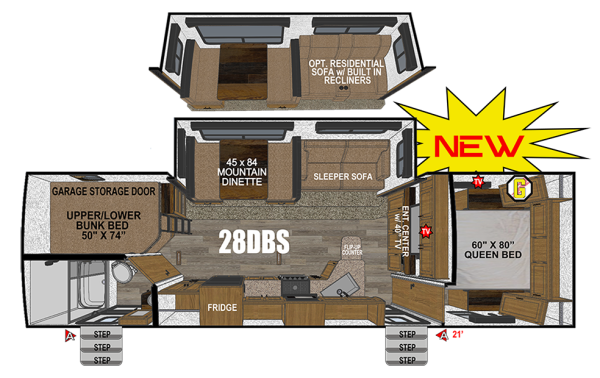

Back Country 28DBS
Available Options
